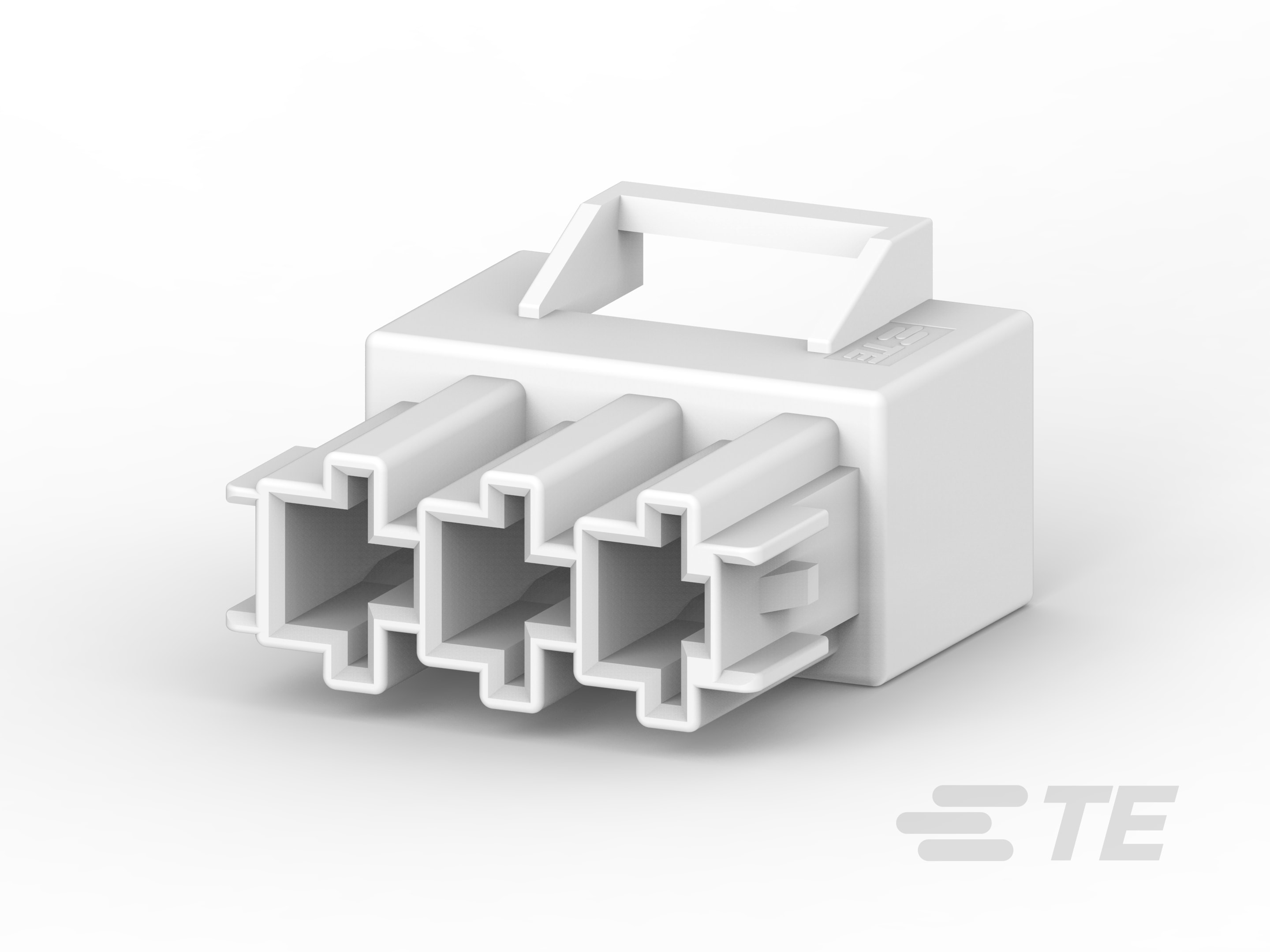

Tab, Tab Housing, 3 Position, Straight, UL 94V-0, Natural, Nylon, Cable Mount (Free-Hanging), FASTIN-FASTON 250, Crimp Terminal Housings
2297438-3
Tab, Tab Housing, 3 Position, Straight, UL 94V-0, Natural, Nylon, Cable Mount (Free-Hanging), FASTIN-FASTON 250, Crimp Terminal Housings
-
- FASTIN-FASTON
- FASTIN-FASTON 250
- TE Internal #: 2297438-3
- TE Internal Description: MMF,FREE HANGING,CAP HOUSING
-
Terminal Type : Tab
-
Connector & Housing Type : Tab Housing
-
Number of Positions : 3
-
Terminal Orientation : Straight
-
UL Flammability Rating : UL 94V-0
Documents
Product Drawings
- MMF FREE HANGING CAP HOUSING ENG_CD_2297438_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2297438-3_A4.pdf 3D
- Customer View Model ENG_CVM_CVM_2297438-3_A4.2d_dxf.zip English
- ENG_CVM_CVM_2297438-3_A4.3d_igs.zip English
- ENG_CVM_CVM_2297438-3_A4.3d_stp.zip English
Datasheets & Catalog Pages
- Multi-Position Mounted FASTIN-FASTON Housings QRG ENG_DS_1-1773957-2_MMF_Housings_0718.pdf English
Product Specifications
- Product Specification ENG_SS_108-106178_A.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_19760727_C1_D2.pdf English
Product And Material Test Reports
- Test Report for MMF Connector ENG_PMTR_501-106178_A.pdf English
