2297440-3

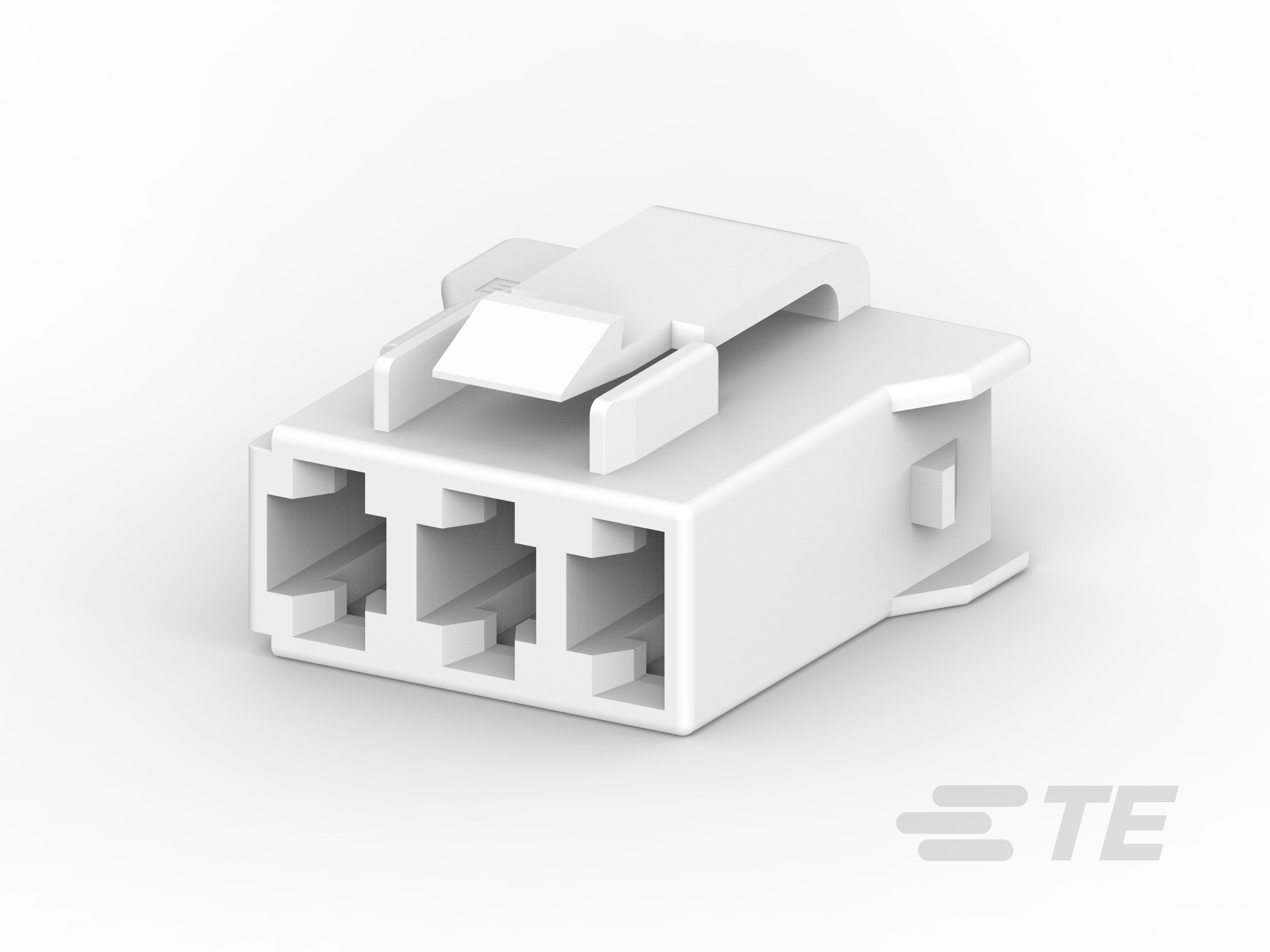

Receptacle, Receptacle, 3 Position, Straight, UL 94V-0, Natural, Nylon, Cable Mount (Free-Hanging), FASTIN-FASTON 250, Crimp Terminal Housings
2297440-3
Receptacle, Receptacle, 3 Position, Straight, UL 94V-0, Natural, Nylon, Cable Mount (Free-Hanging), FASTIN-FASTON 250, Crimp Terminal Housings
-
- FASTIN-FASTON
- FASTIN-FASTON 250
- TE Internal #: 2297440-3
- TE Internal Description: MMF,FREE HANGING,PLUG HOUSING
-
Terminal Type : Receptacle
-
Connector & Housing Type : Receptacle
-
Number of Positions : 3
-
Terminal Orientation : Straight
-
UL Flammability Rating : UL 94V-0
