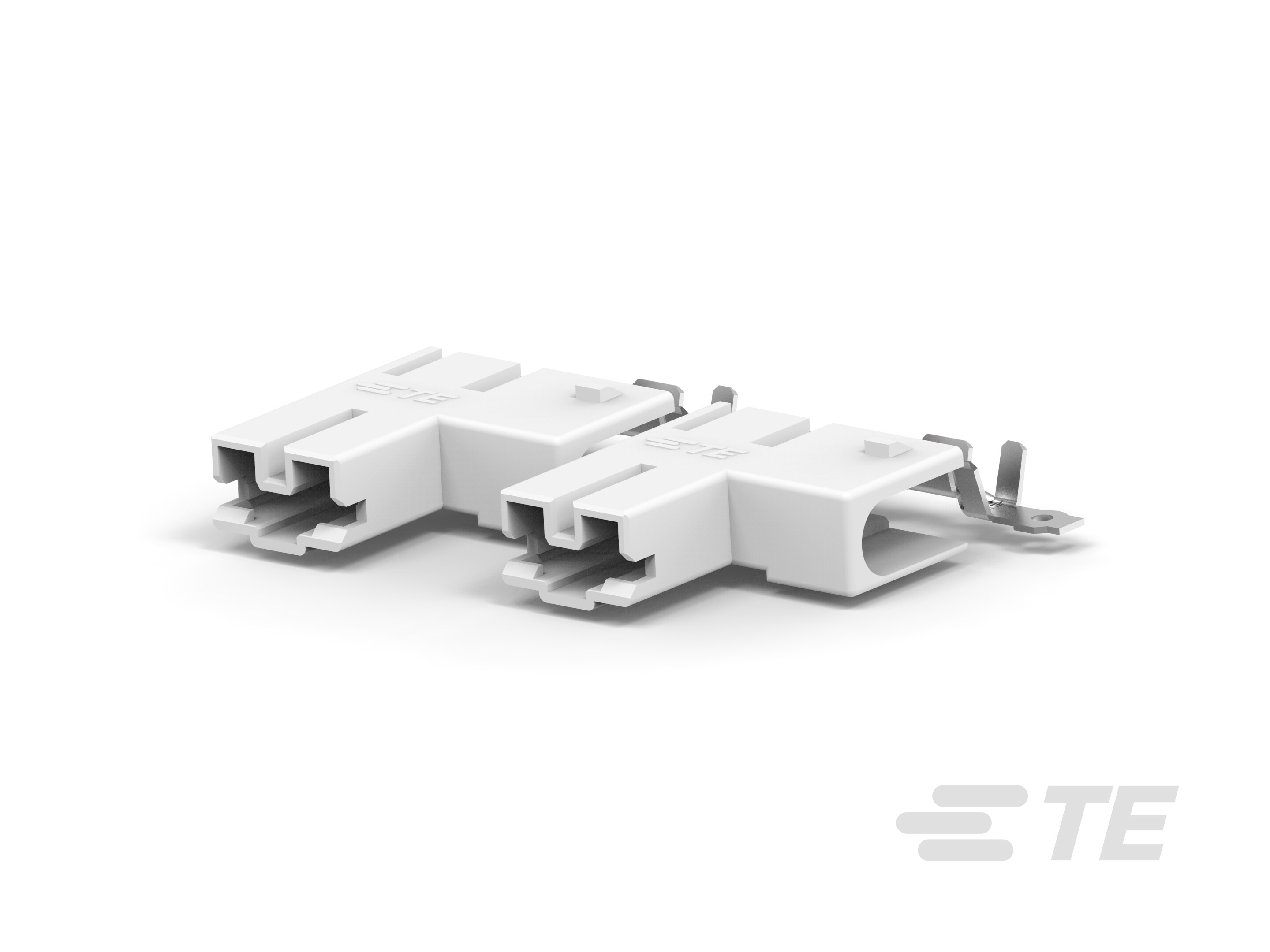

Quick Disconnect Receptacle, 16 – 14 AWG, 1 – 2 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Tin Plating, Strip/Reel, F-Crimp, POD-LOK 250
2299280-2
Quick Disconnect Receptacle, 16 – 14 AWG, 1 – 2 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Tin Plating, Strip/Reel, F-Crimp, POD-LOK 250
-
- POD-LOK
- POD-LOK 250
- TE Internal #: 2299280-2
- TE Internal Description: POD-LOK 250 FLAG AWG 16-14 PTPBR GF
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1 – 2
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
