2311586-3

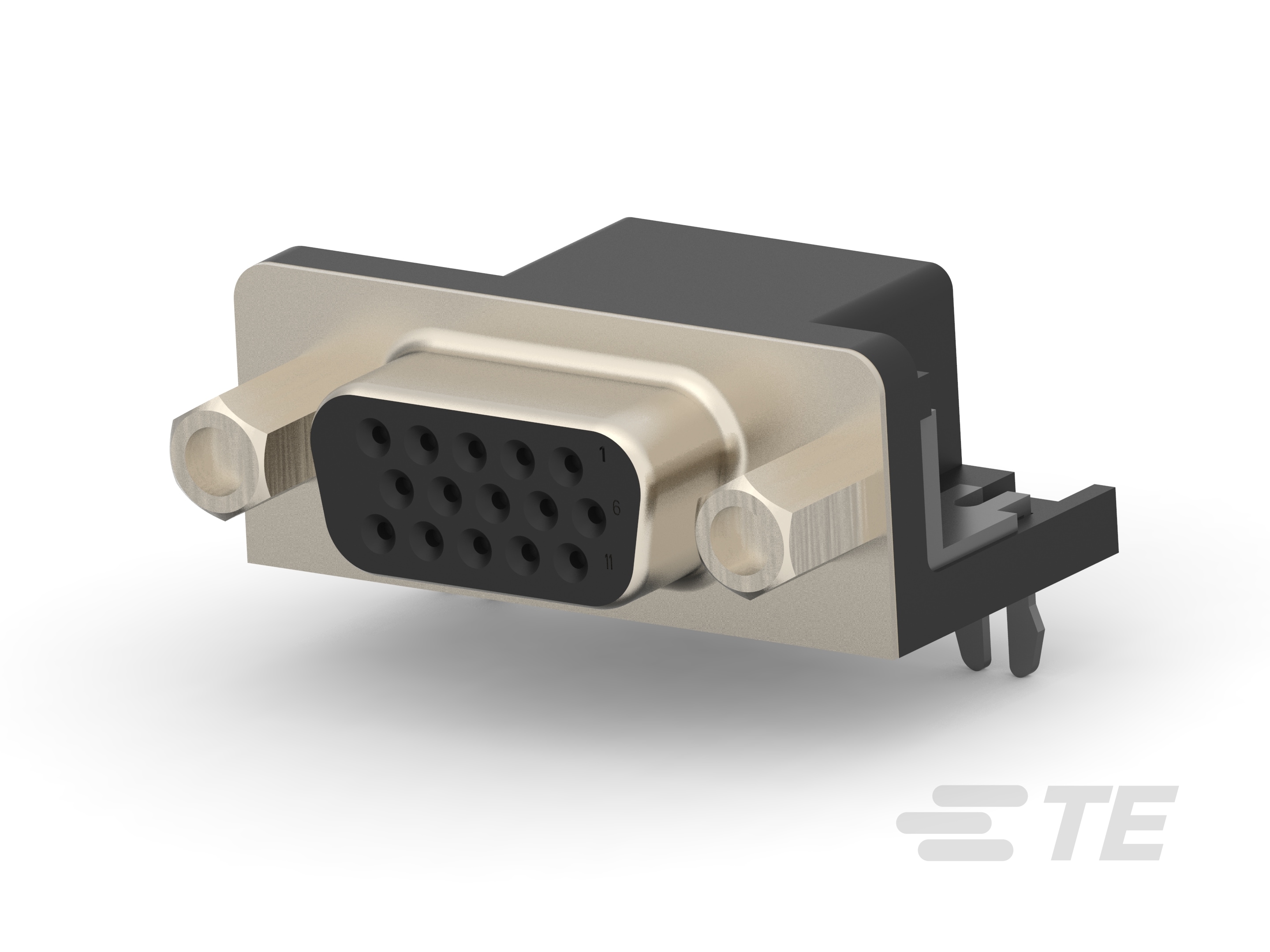

Receptacle, Wire-to-Board, 15 Position, 2.29 mm [.09 in] Centerline, 3 Row, 1 Connector Shell Size, Round, Standard Profile, PCB D-Sub Connectors
2311586-3
Receptacle, Wire-to-Board, 15 Position, 2.29 mm [.09 in] Centerline, 3 Row, 1 Connector Shell Size, Round, Standard Profile, PCB D-Sub Connectors
- TE Internal #: 2311586-3
- TE Internal Description: AMPL REC, HD22, R/A, 15P, S/L
- All D-Sub Receptacle Assembly: Right Angle, 2.29mm (7)
-
Connector & Housing Type : Receptacle
-
Connector System : Wire-to-Board
-
Number of Positions : 15
-
Centerline (Pitch) : 2.29 mm [ .09 in ]
-
Number of Rows : 3
Documents
Product Drawings
- AMPLIMITE RECEPTACLE, HD22, RIGHT ANGLE, 15P ENG_CD_2311586_D.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2311586-3_B2.pdf 3D
- Customer View Model ENG_CVM_CVM_2311586-3_B2.3d_igs.zip English
- ENG_CVM_CVM_2311586-3_B2.3d_stp.zip English
- ENG_CVM_CVM_2311586-3_B2.2d_dxf.zip English
Product Specifications
- Product Specification ENG_SS_108-130023_A2.pdf English
- Qualification Test Report ENG_SS_501-130012_A.pdf English
