2316218-1

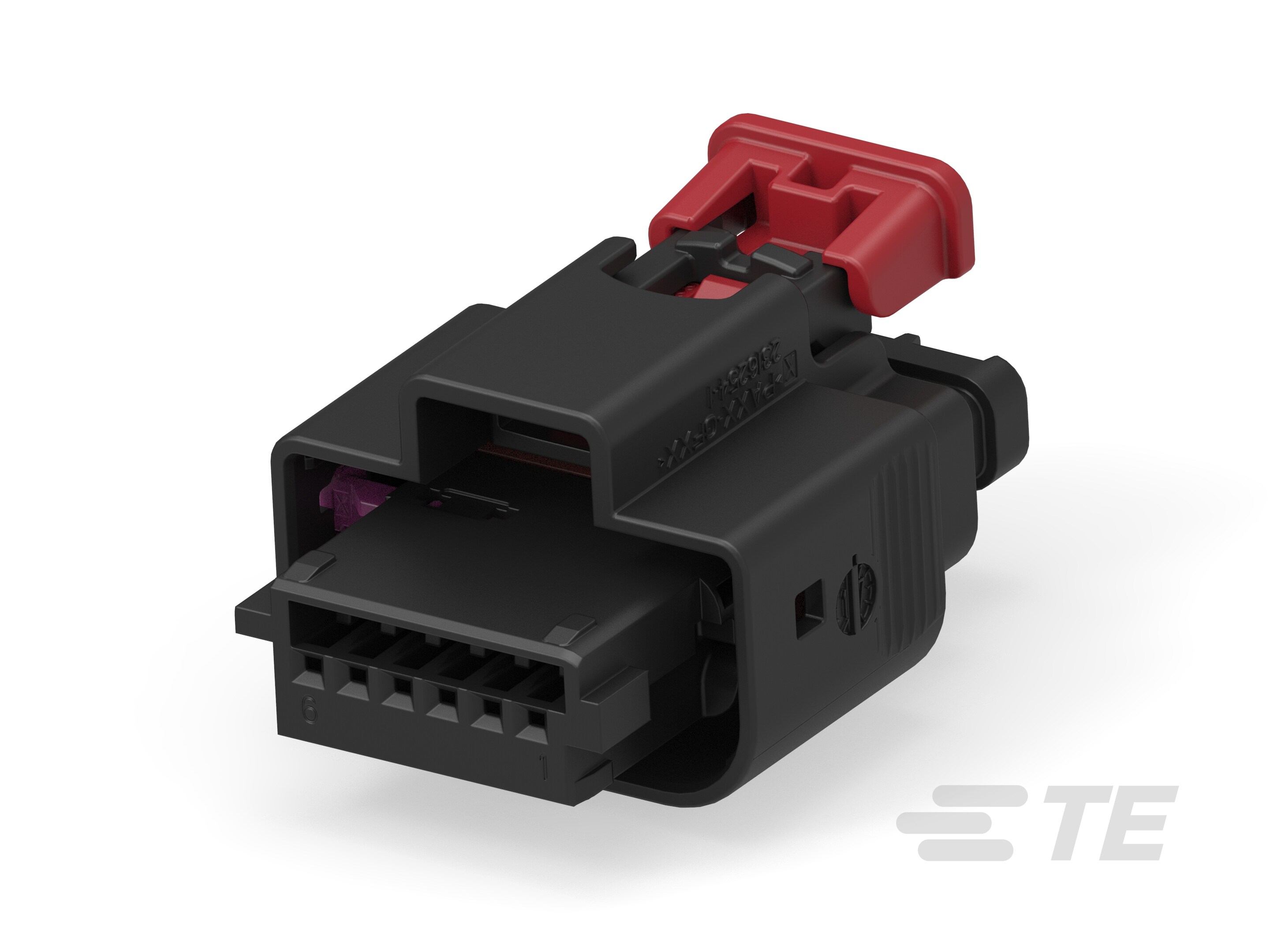

Housing for Female Terminals, 6 Position, 1.8 mm Centerline, Sealable, Black, Power & Signal, Cable Mount (Free-Hanging), MCON 0.50mm
2316218-1
Housing for Female Terminals, 6 Position, 1.8 mm Centerline, Sealable, Black, Power & Signal, Cable Mount (Free-Hanging), MCON 0.50mm
-
- MCON
- MCON 0.50mm
- TE Internal #: 2316218-1
- TE Internal Description: 6POS,MCON 0.5,REC HSG ASSY,SLD,COD A
- All MCON 0.50, REC HSG, Sealed (8)
-
Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]
-
Primary Product Color : Black
-
Connector Shape : Rectangular
-
Connector & Housing Type : Housing for Female Terminals
-
Connector Mounting Type : Cable Mount (Free-Hanging)
Documents
Product Drawings
- 1-REIHIGE MCON 0.5 BUCHSENSTECKER SINGLE ROW MCON 0.5 RECEPTACLE HSG ENG_CD_2317000_B1.pdf English
- 1x6POS,MCON 0.5 CB,REC HSG,ASSY,SL 1x6POL,MCON 0,5 CB STECKER GEDICHTET ENG_CD_2316218_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2316218-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2316218-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2316218-1_A.3d_igs.zip English
- ENG_CVM_CVM_2316218-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-94496_A1.pdf English
- Product Specification ENG_SS_108-94610_A1.pdf English
