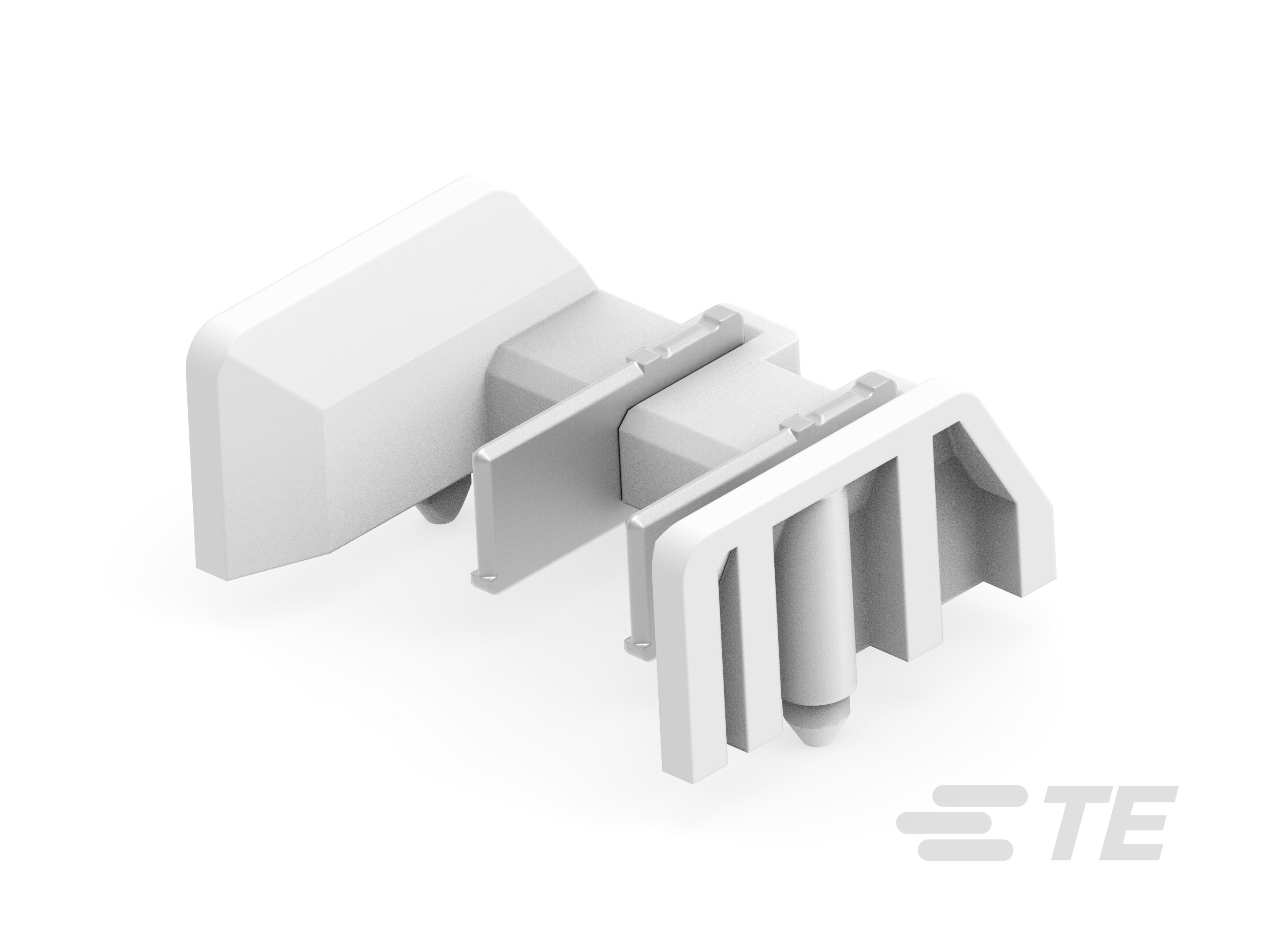

Header, Board-to-Component, 2 Position, 5 mm Centerline, 1 Row, BUCHANAN WireMate Two-Piece Poke-In Series, PCB Terminal Blocks
2318770-2
Header, Board-to-Component, 2 Position, 5 mm Centerline, 1 Row, BUCHANAN WireMate Two-Piece Poke-In Series, PCB Terminal Blocks
-
- Buchanan WireMate
- BUCHANAN WireMate Two-Piece Poke-In Series
- TE Internal #: 2318770-2
- TE Internal Description: TWO-PIECE POKE-IN, 5MM HEADER, 2 POS
- All Two-Piece Poke-In Headers (14)
-
EU RoHS Compliance : Compliant
-
EU ELV Compliance : Compliant
-
Terminal Block Connector Type : Header
-
Connector System : Board-to-Component
-
Number of Positions : 2
