Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

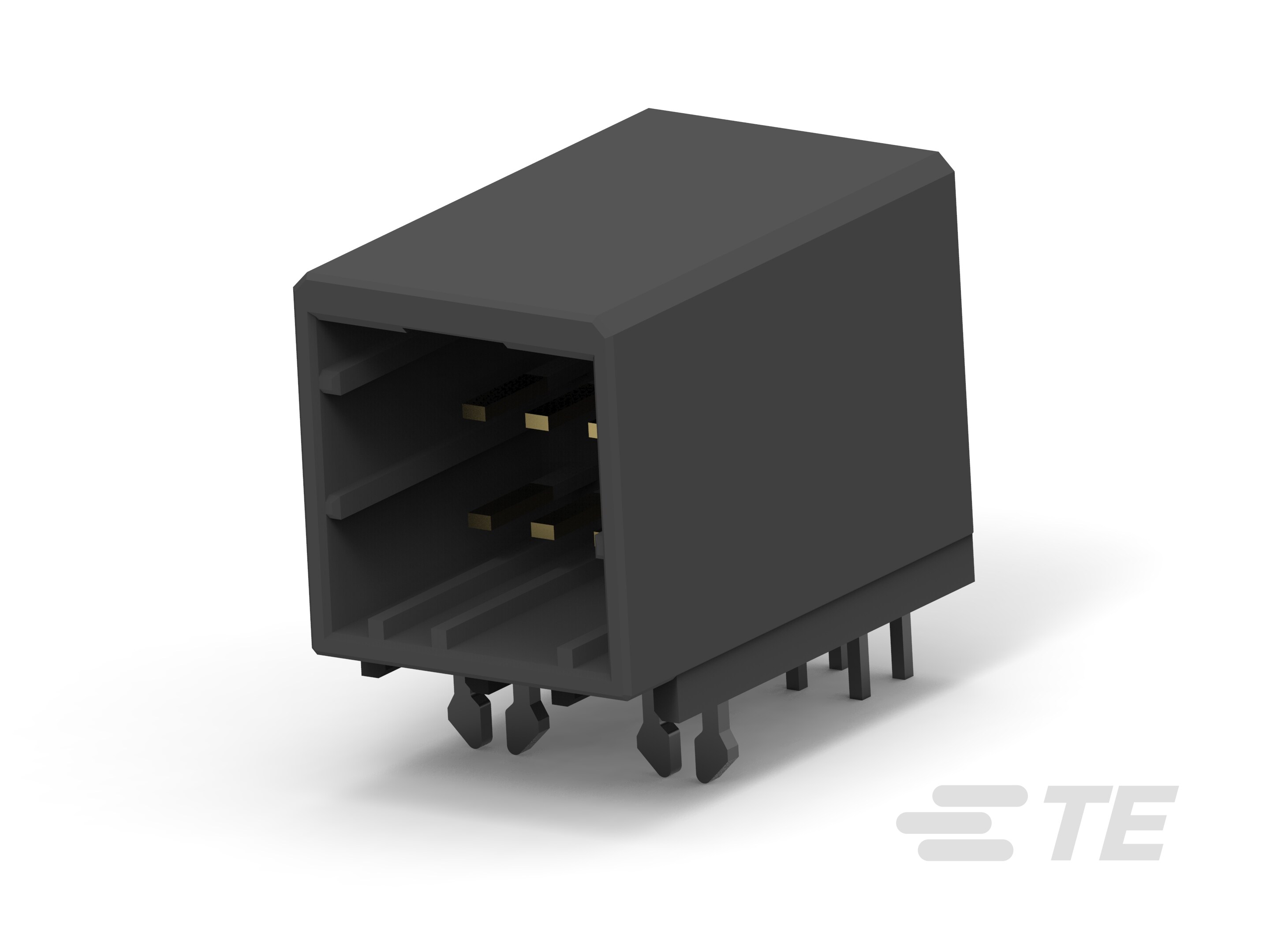

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Mount Orientation : Horizontal

• Number of Positions : 8

• Number of Rows : 2

• Connector & Keying Code : Y

• Primary Product Color : Black

• Contact Mating Area Plating Material Thickness : .38 µm [ 15 µin ]

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 5

• Termination Method to PCB : Through Hole - Solder

• Mating Alignment Type : Polarization

• PCB Mount Retention Type : Retention Leg

• Mating Retention : With

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : Glass-Filled Thermoplastic

• Centerline (Pitch) : 2.5 mm [ .099 in ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Power & Signal

• UL Flammability Rating : UL 94V-0
