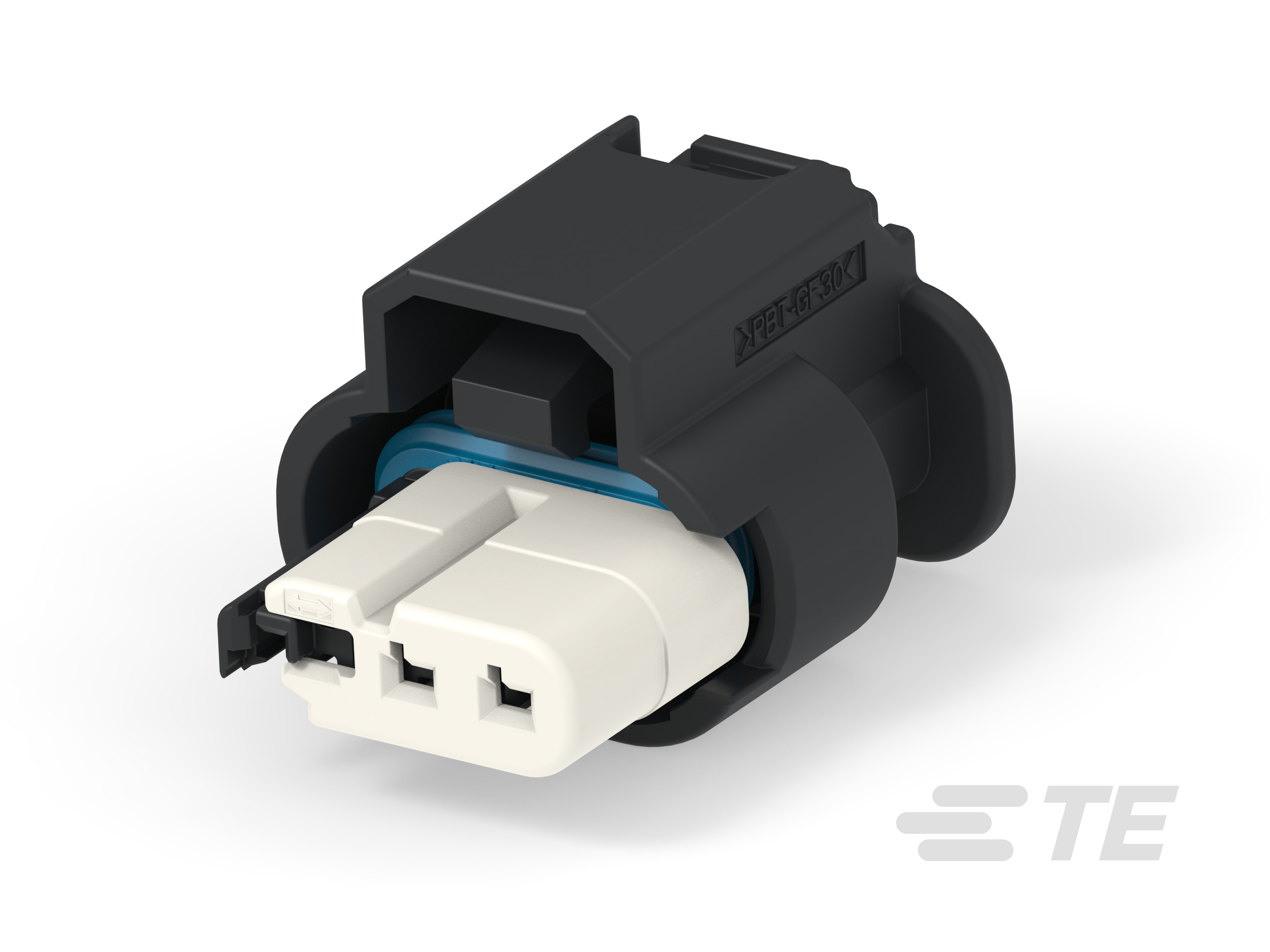

3 Position Housing, Housing for Female Terminals, 4 mm [.157 in] Centerline, Sealable, Black, Wire & Cable, Cable Mount (Free-Hanging), MCON 1.2mm
2328919-3
3 Position Housing, Housing for Female Terminals, 4 mm [.157 in] Centerline, Sealable, Black, Wire & Cable, Cable Mount (Free-Hanging), MCON 1.2mm
-
- MCON
- MCON 1.2mm
- TE Internal #: 2328919-3
- TE Internal Description: 3POS,MCON 1.2,REC HSG ASSY,SLD
-
Number of Positions : 3
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : 1.2 mm [ .047 in ]
-
Centerline (Pitch) : 4 mm [ .157 in ]
-
Sealable : Yes
Documents
Product Drawings
- MCON 1.2 SEALED 3POSITION PLUG ASSEMBLY JPN_CD_2328919_A.pdf Japanese
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2328919-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2328919-3_A.2d_dxf.zip English
- ENG_CVM_CVM_2328919-3_A.3d_igs.zip English
- ENG_CVM_CVM_2328919-3_A.3d_stp.zip English
