Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

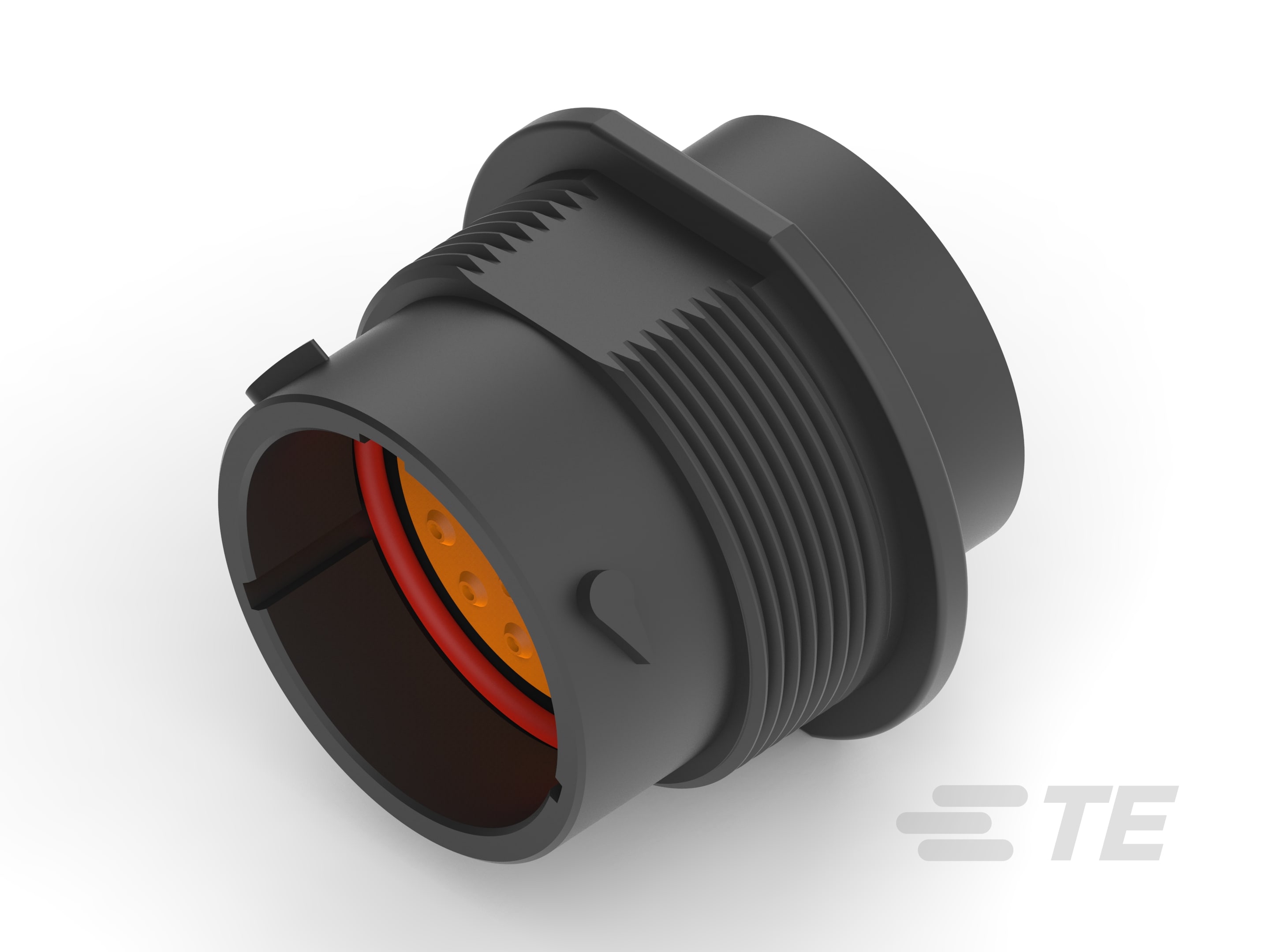

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Circular

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Contact Retainer

• Sealable : Yes

• Connector System : Wire-to-Panel

• Mixed & Hybrid Connector : Yes

• Connector Seal Code : E Seal

• Number of Positions : 20

• Blank Cavity Position : 0

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Cable Exit Angle : 180°

• Contact Current Rating (Max) (A): 7.5, 13

• Contact Size : Size 16, Size 20

• Contact Type : Socket

• Connector Mounting Type : Panel Mount

• Mating Alignment Type : Guide Post

• Terminal Position Assurance : No

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PA GF

• Product Width : 41.3 mm [ 1.62 in ]

• Connector Height : 41.9 mm [ 1.65 in ]

• Product Length : 44.4 mm [ 1.75 in ]

• Compatible Insulation Diameter Range (mm): 1.3 – 3.2, 1.9 – 3.5

• Compatible Insulation Diameter Range (in): .05 – .125, .075 – .138

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power & Signal

• IP Rating : IP67

• UL Flammability Rating : UL 94V-0

• Packaging Method : Box

• Packaging Quantity : 1
