DEUTSCH HDP20 Housings

DEUTSCH

DEUTSCH HDP
DEUTSCH HD

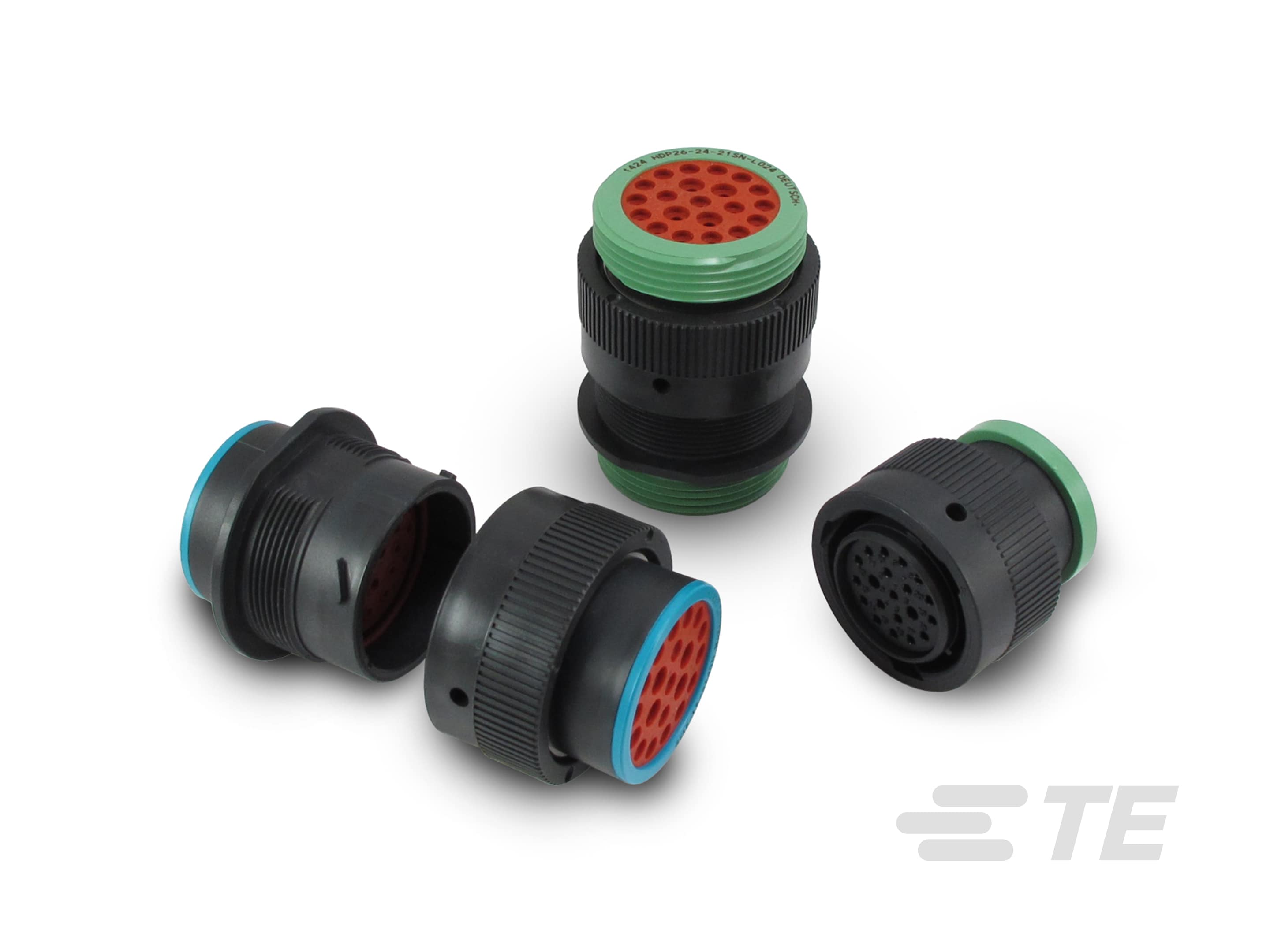

DEUTSCH HDP20 housings are circular shaped, thermoplastic connectors that are offered in multiple pin configurations from 2 to 47 cavities. HDP20 housings feature a coupling ring for mating and accept DEUTSCH contact sizes 4 through 20 (100-7.5 amps).

More Less

Product Features

Number of Positions : 47, 6, 8, 16, 23, 29, 14, 20, 31, 35, 21, 33, 7, 18, 19, 9
Connector & Housing Type : Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals
Mating Pin Diameter (mm): 1.02, 5.7, 5.72, 2.39, 2.4, 1.6, 3.6, 1, 3.61, 1.59
Mating Pin Diameter (in): .04, .225, .063, .062, .094, .142
Connector System : Wire-to-Wire, Wire-to-Panel
Sealable : Yes

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Housing Type	Mating Pin Diameter	Primary Product Color	Contact Current Rating (Max)	Circuit Application	Connector Mounting Type	Nominal Voltage Architecture	Primary Locking Feature	EU RoHS Compliance	EU ELV Compliance
HDP24-24-16PE-L024, REC, 16P, E,THD,12,P Buy on te.com	2293822-1	Product Drawing 3D PDF	Wire-to-Wire	16	Receptacle	2.4 mm	Black	25 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 6P, BLK, N, 4, P Buy on te.com	HDP24-18-6PN-C030	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	5.7 mm	-	100 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP24-18-6PE-L024, REC, 6P, E,THD,4/16,P	2386144-1	3D PDF	Wire-to-Panel	6	Housing for Male Terminals	1.6 mm, 5.7 mm	Black	100 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 14P, BLK, N, 16, P Buy on te.com	HDP24-18-14PN	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 23P, BLK, N, RNG, 16, S Buy on te.com	HDP24-24-23SN-L017	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 14P, BLK, N, RNG, 4/12/16, S Buy on te.com	HDP24-24-14SN-L017	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Female Terminals	2.39 mm, 5.72 mm, 1.59 mm	Black	100 A, 25 A, 13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 9P, BLK, E, 4/8/12, P	HDP24-24-9PE	Product Drawing 3D PDF	Wire-to-Panel	9	Housing for Male Terminals	2.4 mm, 3.6 mm, 5.7 mm	Black	100 A, 25 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 20P, BLK, N, 16/20, P Buy on te.com	HDP26-18-20PN	Product Drawing 3D PDF	Wire-to-Panel	20	Housing for Male Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 23P, BLK, T, 16, P Buy on te.com	HDP24-24-23PT	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 35P, BLK, N, 16/20, S	HDP26-24-35SN	Product Drawing 3D PDF	Wire-to-Panel	35	Housing for Female Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 16P, BLK, E, RNG, 12, P	HDP26-24-16PE-L017	Product Drawing 3D PDF	Wire-to-Panel	16	Housing for Male Terminals	2.4 mm	Black	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 31P, BLK, E, THD, 16, S Buy on te.com	HDP26-24-31SE-L015	Product Drawing 3D PDF	Wire-to-Panel	31	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 35P, BLK, E, THD, 16/20, S Buy on te.com	HDP26-24-35SE-L015	Product Drawing 3D PDF	Wire-to-Panel	35	Housing for Female Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP26-24-35SE-L017, PLG, 35P, E, THD, S	2289831-1	Product Drawing 3D PDF	Wire-to-Wire	35	Plug	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Cable Mount (Free-Hanging)	-	Contact Retainer	-	Compliant
REC, 20P, BLK, N, 16/20, P Buy on te.com	HDP24-18-20PN	Product Drawing 3D PDF	Wire-to-Wire	20	Housing for Male Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 18P, BLK, E, RNG, 8/12/16, P Buy on te.com	HDP24-24-18PE-L017	Product Drawing 3D PDF	Wire-to-Panel	18	Housing for Male Terminals	1.6 mm, 2.4 mm, 3.6 mm	Black	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP24-24-21SN-L024,REC,21P,N,THD,12/16,S	2294432-1	Product Drawing 3D PDF	Wire-to-Wire	21	Receptacle	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 14P, BLK, N, THD, 4/12/16, P Buy on te.com	HDP24-24-14PN-L015	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Male Terminals	2.39 mm, 5.72 mm, 1.59 mm	Black	100 A, 25 A, 13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
HDP26-18-8SE-L024, PLG, 8P, E, WTHD,12,S Buy on te.com	2293819-1	3D PDF	Wire-to-Wire	8	Plug	2.4 mm	Black	25 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 19P, BLK, N, THD, 12/16, S Buy on te.com	HDP24-24-19SN-L015	Product Drawing 3D PDF	Wire-to-Panel	19	Housing for Female Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 33P, BLK, N, 20, P Buy on te.com	HDP26-24-33PN	Product Drawing 3D PDF	Wire-to-Panel	33	Housing for Male Terminals	1 mm	Black	7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 14P, BLK, E, RNG, 4/12/16, P	HDP24-24-14PE-L017	Product Drawing 3D PDF	Wire-to-Panel	14	Housing for Male Terminals	1.6 mm, 2.4 mm, 5.7 mm	Black	100 A, 25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 9P, BLK, E, THD, 4/8/12, S	HDP26-24-9SE-L015	Product Drawing 3D PDF	Wire-to-Panel	9	Housing for Female Terminals	2.4 mm, 3.6 mm, 5.7 mm	Black	100 A, 25 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 7P, BLK, N, 4AWG, THD, 4/16, P	YHDP24-24-7PN-CL22	Product Drawing 3D PDF	Wire-to-Wire	7	Housing for Male Terminals	5.72 mm, 1.59 mm	Black	100 A, 13 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 16P, BLK, N, RNG, 12, P	HDP24-24-16PN-L017	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	2.39 mm	Black	25 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 33P, BLK, N, 20, P Buy on te.com	HDP24-24-33PN	Product Drawing 3D PDF	Wire-to-Panel	33	Housing for Male Terminals	1 mm	Black	7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 19P, BLK, N, THD, 12/16, P Buy on te.com	HDP24-24-19PN-L015	Product Drawing 3D PDF	Wire-to-Panel	19	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 20P, BLK, N, 16/20, S Buy on te.com	HDP24-18-20SN	Product Drawing 3D PDF	Wire-to-Wire	20	Housing for Female Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP26-18-6SN-L024, PLG, 6P,N,WTHD,4/16,S	2294490-1	3D PDF	Wire-to-Panel	6	Plug	1.6 mm, 5.7 mm	Black	100 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 8P, BLK, N, RNG, 12, S	HDP24-18-8SN-L017	3D PDF	Wire-to-Wire	8	Housing for Female Terminals	2.4 mm	Black	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 19P, BLK, N, RNG, 12/16, P Buy on te.com	HDP24-24-19PN-L017	Product Drawing 3D PDF	Wire-to-Panel	19	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 21P, BLK, N, THD, 12/16, P Buy on te.com	HDP26-24-21PN-L015	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 31P, BLK, T, RNG, 16, S Buy on te.com	HDP24-24-31ST-L017	Product Drawing 3D PDF	Wire-to-Panel	31	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 6P, BLK, N, 4/16, S Buy on te.com	HDP26-18-6SN	Product Drawing 3D PDF	Wire-to-Panel	6	Housing for Female Terminals	1.6 mm, 5.7 mm	Black	100 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 8P, BLK, E, RNG, 12, S Buy on te.com	HDP26-18-8SE-L017	3D PDF	Wire-to-Panel	8	Housing for Female Terminals	2.4 mm	Black	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 31P, BLK, T, RNG, 16, P Buy on te.com	HDP26-24-31PT-L017	Product Drawing 3D PDF	Wire-to-Panel	31	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 9P, BLK, N, RNG, 4/8/12, P	HDP26-24-9PN-L017	Product Drawing 3D PDF	Wire-to-Panel	9	Housing for Male Terminals	2.4 mm, 3.6 mm, 5.7 mm	Black	100 A, 25 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 14P, BLK, E, KEY, RNG, 16, S Buy on te.com	YHDP26-18-14SECL20	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Female Terminals	1.59 mm	Black	13 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
PLG, 7P, BLK, N, 4AWG, RNG, 4/16, S Buy on te.com	HDP26-24-7SN-CL18	3D PDF	Wire-to-Panel	7	Housing for Female Terminals	1.6 mm, 5.7 mm	Black	100 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 18P, BLK, N, THD, 8/12/16, S Buy on te.com	HDP24-24-18SN-L015	Product Drawing 3D PDF	Wire-to-Panel	18	Housing for Female Terminals	1.6 mm, 2.4 mm, 3.6 mm	Black	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP26-18-6SE-L024, PLG, 6P,E,THD,4/16,S	2386145-1	3D PDF	Wire-to-Panel	6	Housing for Female Terminals	1.6 mm, 5.7 mm	Black	100 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 35P, BLK, N, 16/20, P Buy on te.com	HDP24-24-35PN	Product Drawing 3D PDF	Wire-to-Panel	35	Housing for Male Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 18P, BLK, N, 8/12/16, P Buy on te.com	HDP24-24-18PN	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Male Terminals	2.39 mm, 3.61 mm, 1.59 mm	Black	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 31P, BLK, T, 16, S Buy on te.com	HDP26-24-31ST	Product Drawing 3D PDF	Wire-to-Panel	31	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 23P, BLK, N, THD, 16, P Buy on te.com	HDP24-24-23PN-L015	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 23P, BLK, E, THD, 16, S Buy on te.com	HDP24-24-23SE-L015	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 20P, BLK, E, 16/20, P Buy on te.com	HDP24-18-20PE	Product Drawing 3D PDF	Wire-to-Wire	20	Housing for Male Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 31P, BLK, T, THD, 16, S Buy on te.com	HDP24-24-31ST-L015	Product Drawing 3D PDF	Wire-to-Panel	31	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 47P, BLK, E, THD, 16/20, S Buy on te.com	HDP24-24-47SE-L015	Product Drawing 3D PDF	Wire-to-Panel	47	Housing for Female Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 14P, BLK, N, 16, S	HDP24-18-14SN	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 21P, BLK, N, RNG, 20, P Buy on te.com	HDP26-18-21PN-L017	3D PDF	Wire-to-Panel	21	Housing for Male Terminals	1 mm	Black	7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 31P, BLK, E, WTHD, 16, S	YHDP26-24-31SEL024	Product Drawing 3D PDF	Wire-to-Wire	31	Housing for Female Terminals	1.59 mm	Black	13 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 33P, BLK, N, RNG, 20, S Buy on te.com	HDP24-24-33SN-L017	Product Drawing 3D PDF	Wire-to-Panel	33	Housing for Female Terminals	1 mm	Black	7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 16P, BLK, E, RNG, 12, S Buy on te.com	HDP24-24-16SE-L017	Product Drawing 3D PDF	Wire-to-Panel	16	Housing for Female Terminals	2.4 mm	Black	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 47P, BLK, E, WTHD, 16/20, s Buy on te.com	YHDP26-24-47SEL024	Product Drawing 3D PDF	Wire-to-Wire	47	Housing for Female Terminals	1.02 mm, 1.59 mm	Black	13 A, 7.5 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 21P, BLK, N, RNG, 12/16, P Buy on te.com	HDP24-24-21PN-L017	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 14P, BLK, N, THD, 4/12/16, P Buy on te.com	HDP26-24-14PN-L015	Product Drawing 3D PDF	Wire-to-Panel	14	Housing for Male Terminals	1.6 mm, 2.4 mm, 5.7 mm	Black	100 A, 25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 23P, BLK, N, 16, P Buy on te.com	HDP26-24-23PN	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 14P, BLK, N, RNG, 4/12/16, S	HDP26-24-14SN-L017	Product Drawing 3D PDF	Wire-to-Panel	14	Housing for Female Terminals	1.6 mm, 2.4 mm, 5.7 mm	Black	100 A, 25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 14P, BLK, E, WTHD, 16, S Buy on te.com	YHDP26-18-14SEL024	3D PDF	Wire-to-Wire	14	Housing for Female Terminals	1.59 mm	Black	13 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
PLG, 23P, BLK, T, THD, 16, S	HDP26-24-23ST-L015	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 20P, BLK, E, WTHD, 16/20, S Buy on te.com	YHDP26-18-20SEL024	3D PDF	Wire-to-Wire	20	Housing for Female Terminals	1.02 mm, 1.59 mm	Black	13 A, 7.5 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 21P, BLK, N, 12/16, P	HDP24-24-21PN	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 29P, BLK, E, WTHD, 12/16/20, S Buy on te.com	YHDP26-24-29SEL024	Product Drawing 3D PDF	Wire-to-Wire	29	Housing for Female Terminals	2.39 mm, 1.02 mm, 1.59 mm	Black	25 A, 13 A, 7.5 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 21P, BLK, N, THD, 12/16, P Buy on te.com	HDP24-24-21PN-L015	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 21P, BLK, N, RNG, 12/16, S Buy on te.com	HDP24-24-21SN-L017	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Female Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 14P, BLK, E, RNG, 16, P Buy on te.com	HDP26-18-14PE-L017	3D PDF	Wire-to-Panel	14	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 18P, BLK, E, RNG, 8/12/16, S Buy on te.com	HDP26-24-18SE-L017	Product Drawing 3D PDF	Wire-to-Panel	18	Housing for Female Terminals	1.6 mm, 2.4 mm, 3.6 mm	Black	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 19P, BLK, N, RNG, 12/16, P Buy on te.com	HDP26-24-19PN-L017	Product Drawing 3D PDF	Wire-to-Panel	19	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 29P, BLK, E, THD, 12/16/20, P Buy on te.com	HDP26-24-29PE-L015	Product Drawing 3D PDF	Wire-to-Panel	29	Housing for Male Terminals	1.6 mm, 2.4 mm, 1 mm	Black	25 A, 13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 9P, BLK, E, WTHD, 4/8/12, P	YHDP24-24-9PE-L024	Product Drawing 3D PDF	Wire-to-Wire	9	Housing for Male Terminals	2.39 mm, 3.61 mm, 5.72 mm	Black	100 A, 25 A, 60 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 23P, BLK, E, 16, P Buy on te.com	HDP24-24-23PE	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 21P, BLK, N, RNG, 20, S Buy on te.com	HDP26-18-21SN-L017	3D PDF	Wire-to-Panel	21	Housing for Female Terminals	1 mm	Black	7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 21P, BLK, E, 12/16, P Buy on te.com	HDP26-24-21PE	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 23P, BLK, N, RNG, 16, S Buy on te.com	HDP26-24-23SN-L017	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 9P, BLK, N, THD, 4/8/12, P Buy on te.com	HDP26-24-9PN-L015	Product Drawing 3D PDF	Wire-to-Panel	9	Housing for Male Terminals	2.4 mm, 3.6 mm, 5.7 mm	Black	100 A, 25 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP26-24-9PN-L024, PLG, 9P, N, WTHD, P	2294488-1	Product Drawing 3D PDF	Wire-to-Panel	9	Plug	2.4 mm, 3.6 mm, 5.7 mm	Black	100 A, 25 A, 60 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 18P, BLK, N, THD, 8/12/16, P Buy on te.com	HDP24-24-18PN-L015	Product Drawing 3D PDF	Wire-to-Panel	18	Housing for Male Terminals	1.6 mm, 2.4 mm, 3.6 mm	Black	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 31P, BLK, E, THD, 16, S Buy on te.com	HDP24-24-31SE-L015	Product Drawing 3D PDF	Wire-to-Panel	31	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 7P, BLK, N, 4AWG, 4/16, P Buy on te.com	HDP24-24-7PN-C038	Product Drawing 3D PDF	Wire-to-Panel	7	Housing for Male Terminals	1.6 mm, 5.7 mm	Black	100 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP26-24-33SN-L024, PLG, 33P, N, WTHD, S	2294487-1	Product Drawing 3D PDF	Wire-to-Wire	33	Plug	1 mm	Black	7.5 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 31P, BLK, T, RNG, 16, P	HDP24-24-31PT-L017	Product Drawing 3D PDF	Wire-to-Panel	31	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 20P, BLK, E, 16/20, S Buy on te.com	HDP26-18-20SE	Product Drawing 3D PDF	Wire-to-Panel	20	Housing for Female Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 47P, BLK, E, THD, 16/20, P Buy on te.com	HDP24-24-47PE-L015	Product Drawing 3D PDF	Wire-to-Panel	47	Housing for Male Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 23P, BLK, E, WTHD, 16, P Buy on te.com	YHDP24-24-23PEL024	Product Drawing 3D PDF	Wire-to-Wire	23	Housing for Male Terminals	1.59 mm	Black	13 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 21P, BLK, N, RNG, 20, P	HDP24-18-21PN-L017	3D PDF	Wire-to-Wire	21	Housing for Male Terminals	1 mm	Black	7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 29P, BLK, E, THD, 12/16/20, P Buy on te.com	HDP24-24-29PE-L015	Product Drawing 3D PDF	Wire-to-Panel	29	Housing for Male Terminals	1.6 mm, 2.4 mm, 1 mm	Black	25 A, 13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 33P, BLK, N, THD, 20, S	HDP24-24-33SN-L015	Product Drawing 3D PDF	Wire-to-Panel	33	Housing for Female Terminals	1 mm	Black	7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP26-24-21PN-L024, PLG, 21P, N, WTHD, P	2294479-1	Product Drawing 3D PDF	Wire-to-Wire	21	Plug	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 18P, BLK, N, THD, 8/12/16, S Buy on te.com	HDP26-24-18SN-L015	Product Drawing 3D PDF	Wire-to-Panel	18	Housing for Female Terminals	1.6 mm, 2.4 mm, 3.6 mm	Black	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 14P, BLK, E, KEY, 16, P	YHDP24-18-14PEC041	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Male Terminals	1.59 mm	Black	13 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 35P, BLK, N, THD, 16/20, P Buy on te.com	HDP24-24-35PN-L015	Product Drawing 3D PDF	Wire-to-Panel	35	Housing for Male Terminals	1.6 mm, 1 mm	Black	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
HDP24-24-31PT-L024, REC, 31P, T,THD,16,P	2294433-1	Product Drawing 3D PDF	Wire-to-Panel	31	Receptacle	1.6 mm	Black	13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 14P, BLK, E, 16, P Buy on te.com	HDP26-18-14PE	Product Drawing 3D PDF	Wire-to-Panel	14	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 19P, BLK, E, THD, 12/16, P Buy on te.com	HDP24-24-19PE-L015	Product Drawing 3D PDF	Wire-to-Panel	19	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 21P, BLK, N, 12/16, S Buy on te.com	HDP24-24-21SN	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Female Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 23P, BLK, E, RNG, 16, P Buy on te.com	HDP24-24-23PE-L017	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Male Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 21P, BLK, E, RNG, 12/16, P Buy on te.com	HDP24-24-21PE-L017	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Male Terminals	1.6 mm, 2.4 mm	Black	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 23P, BLK, E, RNG, 16, S Buy on te.com	HDP24-24-23SE-L017	Product Drawing 3D PDF	Wire-to-Panel	23	Housing for Female Terminals	1.6 mm	Black	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 9P, BLK, N, THD, 4/8/12, S Buy on te.com	HDP26-24-9SN-L015	Product Drawing 3D PDF	Wire-to-Panel	9	Housing for Female Terminals	2.4 mm, 3.6 mm, 5.7 mm	Black	100 A, 25 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant

Overview

DEUTSCH HDP20 housings have a composite thermoplastic shell suited for applications where chemicals can damage a connector housing.

Series Overview

Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
4-22 AWG (25.00-0.35 mm2)
2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavity arrangements
In-line or flange mount
Circular, thermoplastic housing
Coupling ring for mating
Available accessories: Backshells, boots, dust caps, gaskets, mounting hardware, strain relief

VIEW ALL DEUTSCH HDP20 PRODUCTS

VIEW ALL DEUTSCH HDP20 PRODUCTS
DEUTSCH HDP20 connectors are heavy-duty, environmentally sealed, composite shell, multi-pin connectors.

FAQ

Frequently Asked Questions

Q: What is an HDP20 connector?

A: DEUTSCH HDP20 environmentally sealed connectors are designed for cable to cable applications. The HDP20 connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for HDP20 connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Other

Serviceable Yes
Connector Position Assurance Capable No
EU RoHS Compliance Compliant, Compliant with Exemptions
EU ELV Compliance Compliant with Exemptions, Compliant

Packaging Features

Packaging Method Package, Box, Tray
Packaging Quantity 200, 120, 1, 150, 30, 40

Electrical Characteristics

Operating Voltage (VDC) 250
Operating Voltage (VAC) 250
Nominal Voltage Architecture (V) 24, 12, 48, 250

Contact Features

Contact Type Socket, Pin
Contact Size Size 8, Size 16, Size 12, Size 20, Size 4
Mating Pin Diameter (mm) 1.02, 5.7, 5.72, 2.39, 2.4, 1.6, 3.6, 1, 3.61, 1.59
Mating Pin Diameter (in) .04, .225, .063, .062, .094, .142
Contact Current Rating (Max) (A) 60, 13, 25, 7.5, 100

Dimensions

Connector Height (mm) 42.5, 41.5, 38.6, 58.7, 43.17, 49.53, 44.2, 38.3, 47.63, 45.8, 41.28, 47.5, 55.4, 41.9, 44.4, 44.7, 41.3
Connector Height (in) 1.62, 1.51, 1.625, 1.65, 1.74, 1.52, 1.8, 1.95, 1.63, 1.67, 1.7, 2.18, 1.87, 1.6, 1.75, 1.875, 1.76, 2.31
Product Length (mm) 38.3, 38.63, 43.2, 42.55, 41.53, 45.77, 58.67, 55.45, 41.86, 49.5, 50.8, 50.1, 44.4
Product Length (in) 2.31, 1.675, 1.97, 1.508, 1.521, 1.7, 1.648, 2, 1.635, 2.183, 1.802, 1.75, 1.95
Compatible Insulation Diameter Range (mm) 3.43 – 5.59, 6.6 – 7.4, 2.5 – 3.4, 7.11 – 7.42, 1.35 – 2.62, 3.4 – 4.32, 7.9 – 10.67, 1.4 – 3.8, 1.35 – 3.05, 2.9 – 4.5, 1.9 – 3.5, 1.35 – 2.69, 6.63 – 7.42, 3.6 – 5.2, 1.3 – 3.2, 1.02 – 2.41, 4.83 – 6.1, 2.46 – 4.01, 7.1 – 7.4, 2.54 – 3.4, 1.9 – 3.2, 1.02 – 2.1
Compatible Insulation Diameter Range (in) .1 – .134, .1 – .135, .04 – .083, .053 – .103, .135 – .22, .053 – .12, .075 – .138, .134 – .17, .14 – .204, .055 – .149, .05 – .125, .051 – .125, .311 – .42, .114 – .177, .055 – .15, .28 – .292, .053 – .106, .19 – .24, .097 – .158, .04 – .095, .261 – .292, .075 – .125
Product Width (mm) 50.8, 47.6, 43.17, 41.2, 41.3, 44.45, 49.5, 43.2, 49.53
Product Width (in) 1.87, 2, 1.7, 1.95, 1.75, 1.62

Housing Features

Housing Material PA 66 GF, PA GF, PA 66 GF30, PA 66

Configuration Features

Connector Seal Code N Seal, T Seal, E Seal
Connector Modification Threaded Adapter, Ring Adapter, Blocked Cavities, Wide Threaded Adapter
Blank Cavity Position 0
Number of Positions 47, 6, 8, 16, 23, 29, 14, 20, 31, 35, 21, 33, 7, 18, 19, 9

Product Type Features

Connector Shape Circular
Mixed & Hybrid Connector Yes, No
Connector & Housing Type Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals
Connector System Wire-to-Wire, Wire-to-Panel
Sealable Yes
Primary Locking Feature Integrated in Housing, Contact Retainer
Connector & Contact Terminates To Wire & Cable

Industry Standards

UL Flammability Rating 20mm Flame Test per Standard UL-94, UL 94V-0
IP Rating IP67

Mechanical Attachment

Terminal Position Assurance No
Mating Alignment Type Guide Slot, Polarizing Slot, Guide Post
Strain Relief Without, Add By Accessory
Mating Alignment With
Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount

Body Features

Cable Exit Angle 180°
Primary Product Color Black

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Circuit Application Power & Signal, Power

Reference Number

TE Internal Number CAT-H396-CH8172

Related Materials

DEUTSCH, TE Connectivity, and TE connectivity (logo) are trademarks.

DEUTSCH HDP20 Housings

Product Features

Number of Positions : 47, 6, 8, 16, 23, 29, 14, 20, 31, 35, 21, 33, 7, 18, 19, 9

Connector & Housing Type : Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals

Mating Pin Diameter (mm): 1.02, 5.7, 5.72, 2.39, 2.4, 1.6, 3.6, 1, 3.61, 1.59

Mating Pin Diameter (in): .04, .225, .063, .062, .094, .142

Connector System : Wire-to-Wire, Wire-to-Panel

Sealable : Yes

Series Overview

VIEW ALL DEUTSCH HDP20 PRODUCTS

Frequently Asked Questions

Other

Serviceable Yes

Connector Position Assurance Capable No

EU RoHS Compliance Compliant, Compliant with Exemptions

EU ELV Compliance Compliant with Exemptions, Compliant

Packaging Features

Packaging Method Package, Box, Tray

Packaging Quantity 200, 120, 1, 150, 30, 40

Electrical Characteristics

Operating Voltage (VDC) 250

Operating Voltage (VAC) 250

Nominal Voltage Architecture (V) 24, 12, 48, 250

Contact Features

Contact Type Socket, Pin

Contact Size Size 8, Size 16, Size 12, Size 20, Size 4

Mating Pin Diameter (mm) 1.02, 5.7, 5.72, 2.39, 2.4, 1.6, 3.6, 1, 3.61, 1.59

Mating Pin Diameter (in) .04, .225, .063, .062, .094, .142

Contact Current Rating (Max) (A) 60, 13, 25, 7.5, 100

Dimensions

Connector Height (mm) 42.5, 41.5, 38.6, 58.7, 43.17, 49.53, 44.2, 38.3, 47.63, 45.8, 41.28, 47.5, 55.4, 41.9, 44.4, 44.7, 41.3

Connector Height (in) 1.62, 1.51, 1.625, 1.65, 1.74, 1.52, 1.8, 1.95, 1.63, 1.67, 1.7, 2.18, 1.87, 1.6, 1.75, 1.875, 1.76, 2.31

Product Length (mm) 38.3, 38.63, 43.2, 42.55, 41.53, 45.77, 58.67, 55.45, 41.86, 49.5, 50.8, 50.1, 44.4

Product Length (in) 2.31, 1.675, 1.97, 1.508, 1.521, 1.7, 1.648, 2, 1.635, 2.183, 1.802, 1.75, 1.95

Product Width (mm) 50.8, 47.6, 43.17, 41.2, 41.3, 44.45, 49.5, 43.2, 49.53

Product Width (in) 1.87, 2, 1.7, 1.95, 1.75, 1.62

Housing Features

Housing Material PA 66 GF, PA GF, PA 66 GF30, PA 66

Configuration Features

Connector Seal Code N Seal, T Seal, E Seal

Connector Modification Threaded Adapter, Ring Adapter, Blocked Cavities, Wide Threaded Adapter

Blank Cavity Position 0

Number of Positions 47, 6, 8, 16, 23, 29, 14, 20, 31, 35, 21, 33, 7, 18, 19, 9

Product Type Features

Connector Shape Circular

Mixed & Hybrid Connector Yes, No

Connector & Housing Type Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals

Connector System Wire-to-Wire, Wire-to-Panel

Sealable Yes

Primary Locking Feature Integrated in Housing, Contact Retainer

Connector & Contact Terminates To Wire & Cable

Industry Standards

UL Flammability Rating 20mm Flame Test per Standard UL-94, UL 94V-0

IP Rating IP67

Mechanical Attachment

Terminal Position Assurance No

Mating Alignment Type Guide Slot, Polarizing Slot, Guide Post

Strain Relief Without, Add By Accessory

Mating Alignment With

Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount

Body Features

Cable Exit Angle 180°

Primary Product Color Black

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]

Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Circuit Application Power & Signal, Power

Reference Number

TE Internal Number CAT-H396-CH8172

Flipbook Catalog

Product Specifications

Connector Selector
