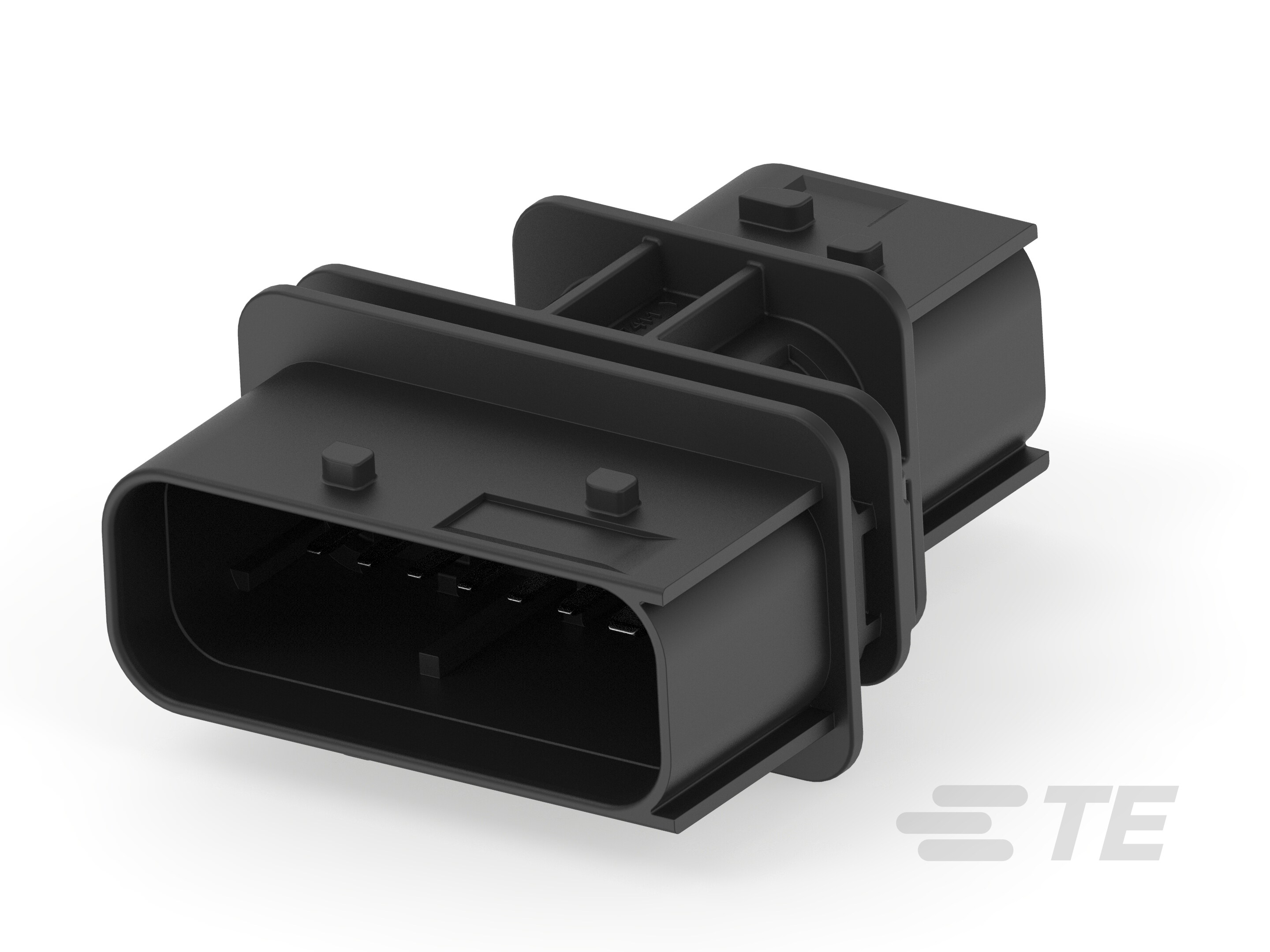

PCB Mount Header, Vertical, Cable-to-Cable, 16 Position, 4 mm / 6 mm [.157 in / .236 in] Centerline, Heavy Duty Sealed Connector Series
2365741-1
PCB Mount Header, Vertical, Cable-to-Cable, 16 Position, 4 mm / 6 mm [.157 in / .236 in] Centerline, Heavy Duty Sealed Connector Series
-
- Heavy Duty Sealed Connector Series
- TE Internal #: 2365741-1
- TE Internal Description: 2POS,TAB5.8X0.8,HDR ASSY,180DEG
- All Heavy Duty Sealed Connector Headers (18)
-
Packaging Method : Package
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Black
-
Connector & Contact Terminates To : Wire & Cable
-
Operating Temperature (Max) : 140 °C [ 284 °F ]
Documents
Product Drawings
- HDSCS 2P/16P SEALED HEADER ENG_CD_2365741_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2365741-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2365741-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2365741-1_A.3d_igs.zip English
- ENG_CVM_CVM_2365741-1_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-94020_E2.pdf English
