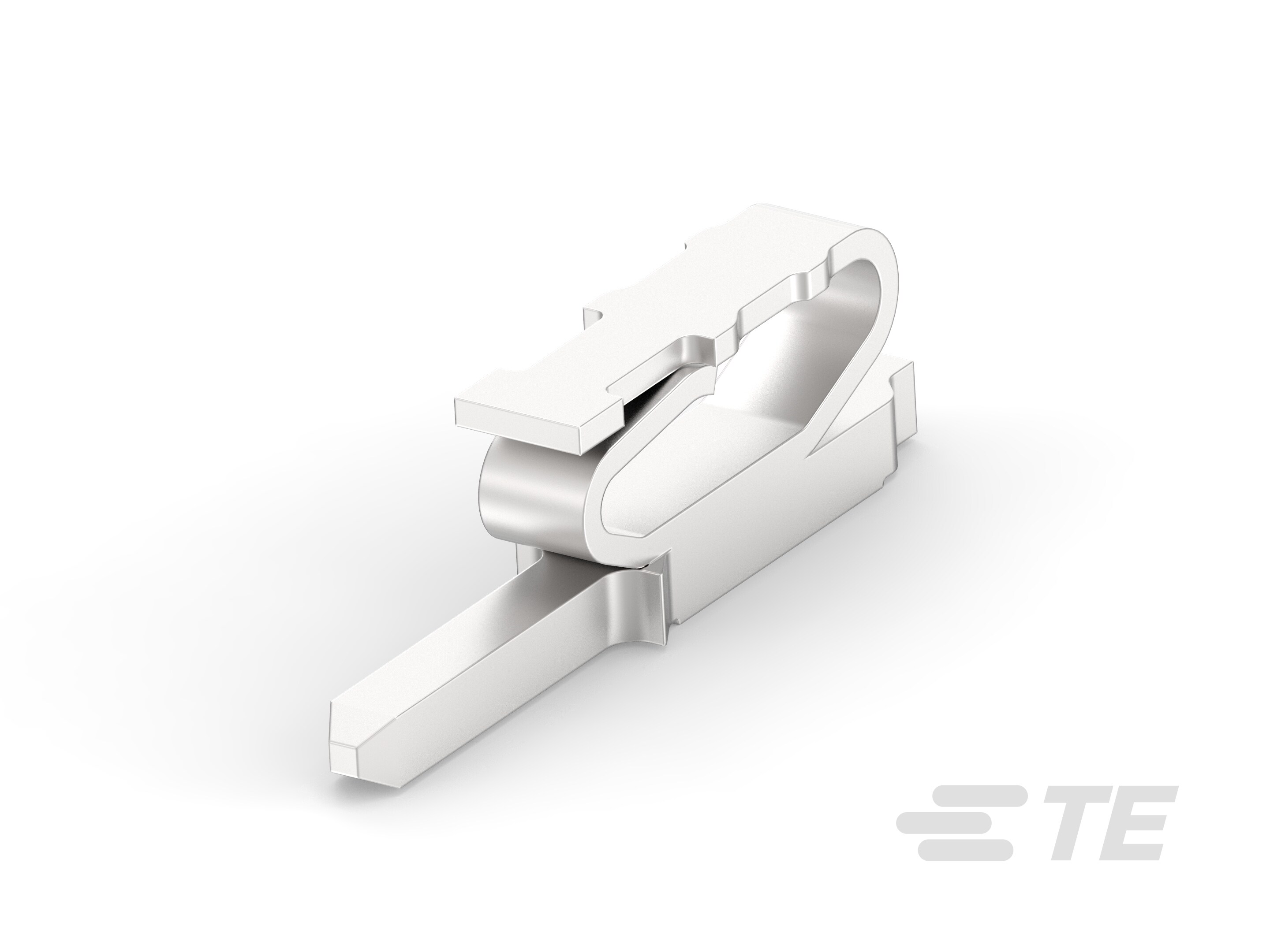

2366999-1
Pin, Mating Tab Width .5 mm, Special, .1 – .25 mm Magnet Wire, Barbs Mating Retention Type, Tin Plating, Magnet Wire Terminals
2366999-1
Pin, Mating Tab Width .5 mm, Special, .1 – .25 mm Magnet Wire, Barbs Mating Retention Type, Tin Plating, Magnet Wire Terminals
- TE Internal #: 2366999-1
- TE Internal Description: Nano MAG-MATE terminals
-
Packaging Method : Reeled with Interleaving Paper
-
Operating Temperature Range (°C): -40 – 105
-
Magnet Wire Terminal Type : Pin
-
Terminal Plating Material : Tin
-
Terminal Height (mm): 6.2
Documents
Product Drawings
- NANO MAG-MATE TERMINALS ENG_CD_2366999_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2366999-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2366999-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2366999-1_A.3d_igs.zip English
- ENG_CVM_CVM_2366999-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- Nano MAG-MATE Flyer ENG_DS_6-1773984-4-Nano-MAG-MATE-Flyer_1320.pdf English
- Nano MAG-MATE Flyer CHI_DS_6-1773984-4-Nano-MAG-MATE-Flyer_1320.pdf
- Nano MAG-MATE Flyer JPN_DS_6-1773984-4-Nano-MAG-MATE-Flyer_1320.pdf Japanese
Product Specifications
- Application Specification ENG_SS_114-78037_A.pdf English
- Product Specification ENG_SS_108-140191_A.pdf English
Product And Material Test Reports
- Nano MAG-MATE Terminals ENG_PMTR_501-78769_A.pdf English
