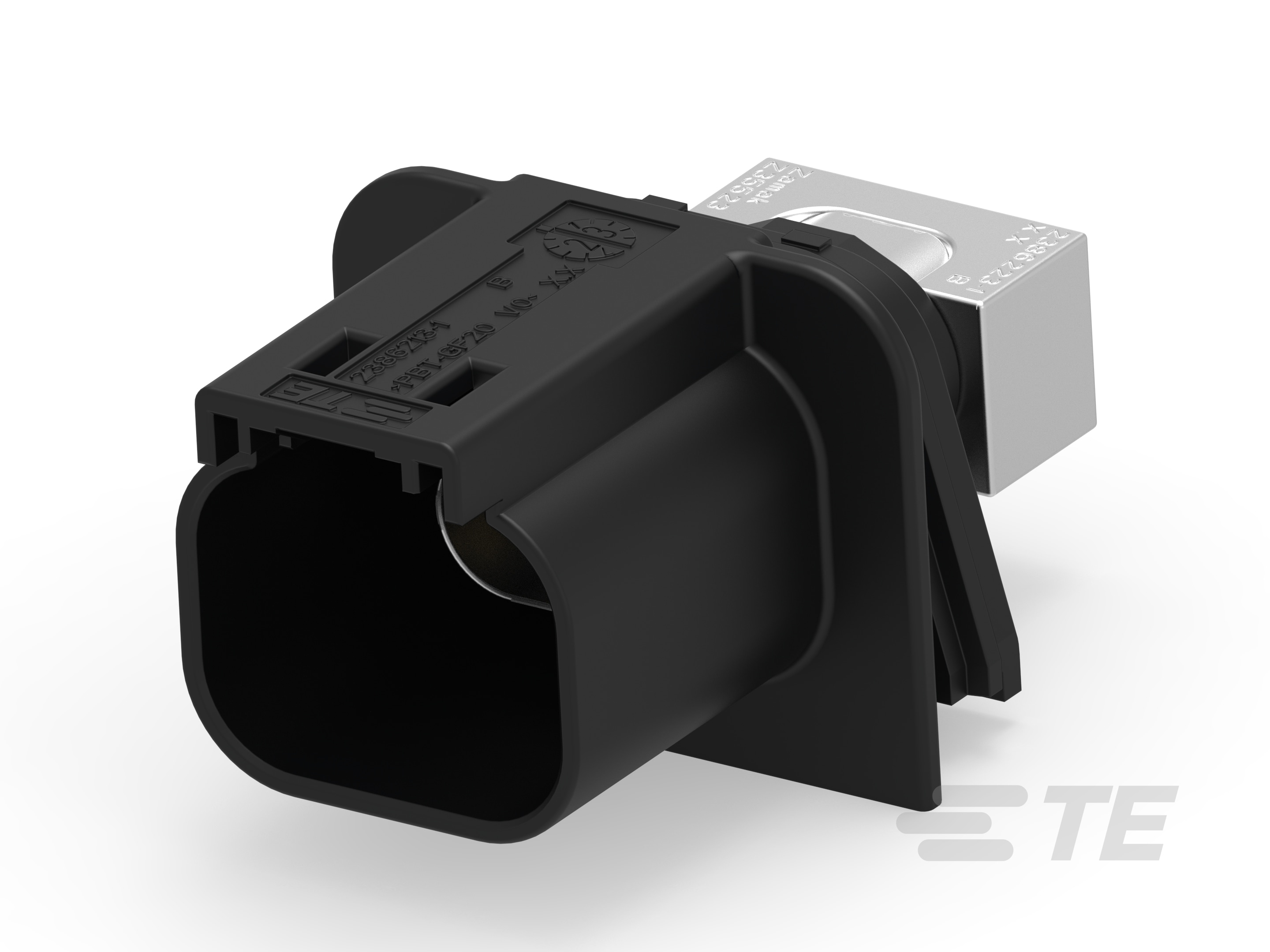

Right Angle, Cable-to-Board, 2 Position, 1 Rows, 4mm [.15in] Centerline, Gold (Au), Sealable, Printed Circuit Board, DEUTSCH DT Highspeed
2386211-1
Right Angle, Cable-to-Board, 2 Position, 1 Rows, 4mm [.15in] Centerline, Gold (Au), Sealable, Printed Circuit Board, DEUTSCH DT Highspeed
-
- DEUTSCH DT Highspeed
- TE Internal #: 2386211-1
- TE Internal Description: 2POS,PIN DIA 1.0,HDR ASSY,90DEG,COD A
- All DT Highspeed Connector headers (3)
-
PCB Mount Orientation : Right Angle
-
Termination Method to PCB : Through Hole - Solder
-
Sealable : Yes
-
Connector & Contact Terminates To : Printed Circuit Board
-
Contact Current Rating (Max) (A): 7.5
Documents
Product Drawings
- DT HIGHSPEED 90DEG HEADER ASSEMBLY ENG_CD_2386211_B3.pdf English
- PRODUCT GROUP DRAWING Produktgruppenzeichnung DT HIGHSPEED ENG_CD_2395877_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2386211-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2386211-1_B.3d_igs.zip English
- ENG_CVM_CVM_2386211-1_B.3d_stp.zip English
- ENG_CVM_CVM_2386211-1_B.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-160720_A.pdf English
