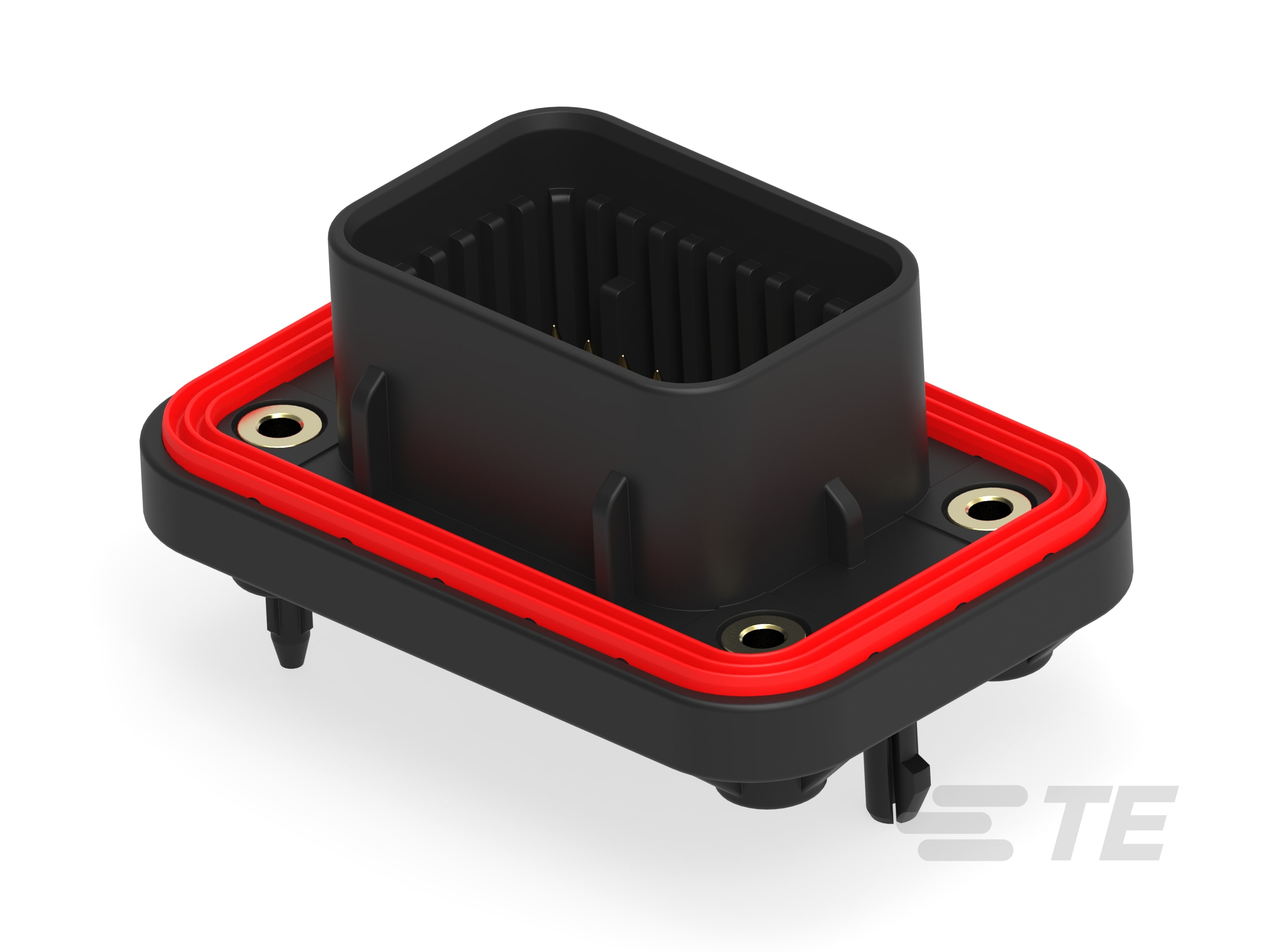

PCB Mount Receptacle, Vertical, Cable-to-Board, 34 Position, 3 mm [.118 in] Centerline, Header & Ejector Assembly, Gold, SUPERSEAL 1.0mm
2388688-2
PCB Mount Receptacle, Vertical, Cable-to-Board, 34 Position, 3 mm [.118 in] Centerline, Header & Ejector Assembly, Gold, SUPERSEAL 1.0mm
-
- AMP
- SUPERSEAL 1.0mm
- TE Internal #: 2388688-2
- TE Internal Description: 34POS,PIN DIA 1.0,HDR ASSY,180DEG
- All SUPERSEAL Connector Headers: 1.0 mm (35)
-
PCB Connector Assembly Type : PCB Mount Receptacle
-
PCB Mount Orientation : Vertical
-
Connector System : Cable-to-Board
-
Number of Positions : 34
-
Number of Rows : 4
Documents
Product Drawings
- SUPERSEAL 34P HEADER 180 DEGREE ENG_CD_C-2388688_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2388688-2_A1.pdf 3D
- Customer View Model ENG_CVM_CVM_2388688-2_A1.3d_stp.zip English
- ENG_CVM_CVM_2388688-2_A1.2d_dxf.zip English
- ENG_CVM_CVM_2388688-2_A1.3d_igs.zip English
Product Specifications
- Application Specification ENG_SS_114-160220_A.pdf English
- Product Specification ENG_SS_108-78140_A9.pdf English
