Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

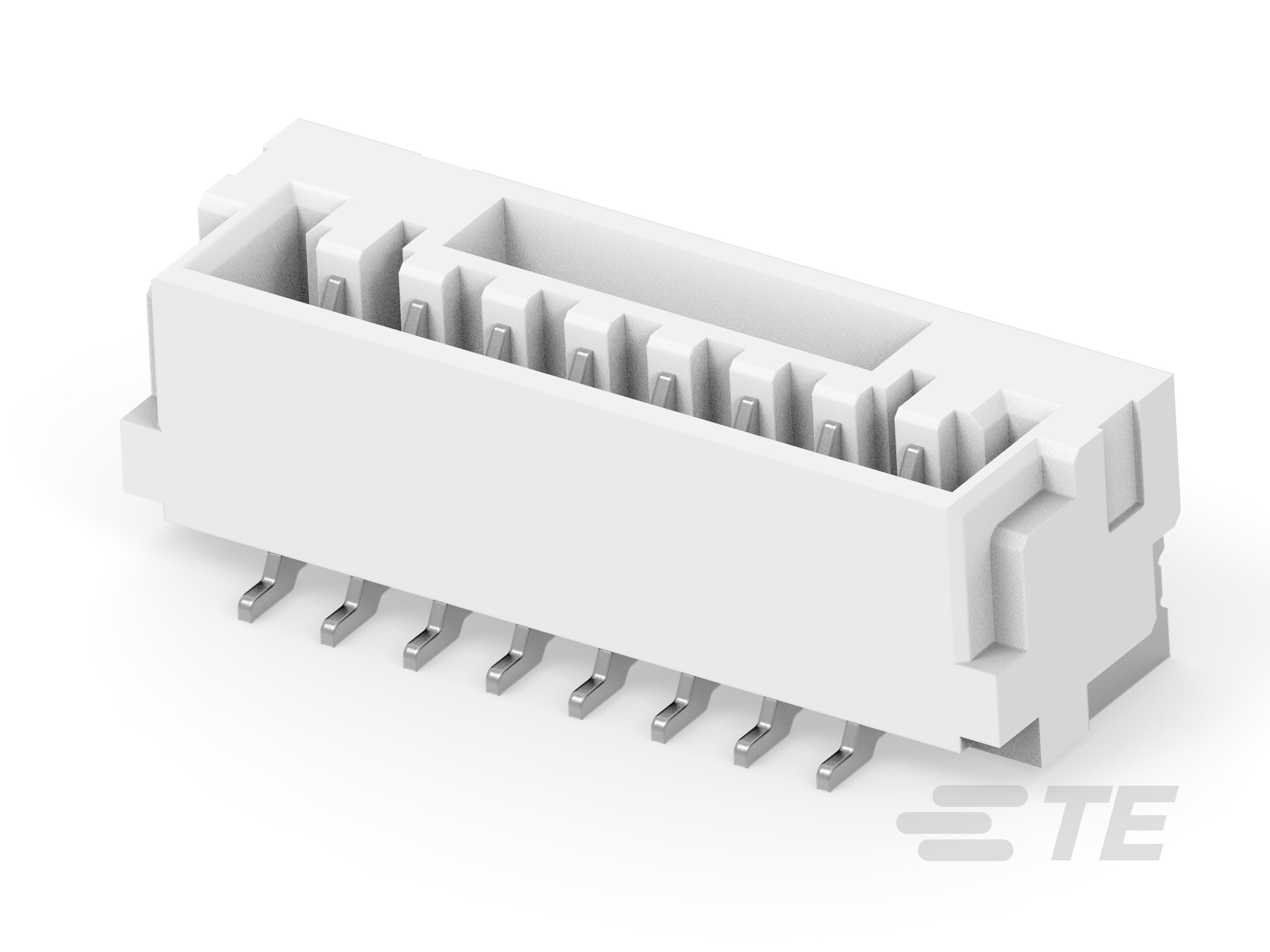

• PCB Connector Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Number of Positions : 8

• Number of Rows : 1

• Dielectric Withstanding Voltage (Max) (V): 500

• Insulation Resistance (MΩ): 100

• Termination Resistance (mΩ): 20

• Primary Product Color : Natural

• Contact Mating Area Plating Material Finish : Matte

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Brass

• Contact Layout : Staggered

• PCB Contact Termination Area Plating Material Thickness : 2 µm [ 80 µin ]

• Contact Mating Area Plating Material Thickness : 2 µm [ 80 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Underplating Material Thickness : 1.27 – 2.7 µm [ 50 – 106 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 1

• Termination Method to PCB : Surface Mount

• Mating Alignment Type : Polarization

• PCB Mount Retention Type : Solder Peg

• Mating Retention : With

• Mating Retention Type : Latch

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : LCP

• Mating Entry Location : Top

• Centerline (Pitch) : 1.25 mm [ .049 in ]

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Assembly Process Feature : Pick and Place Cover, Tape

• Circuit Application : Power & Signal

• UL Flammability Rating : UL 94V-0
