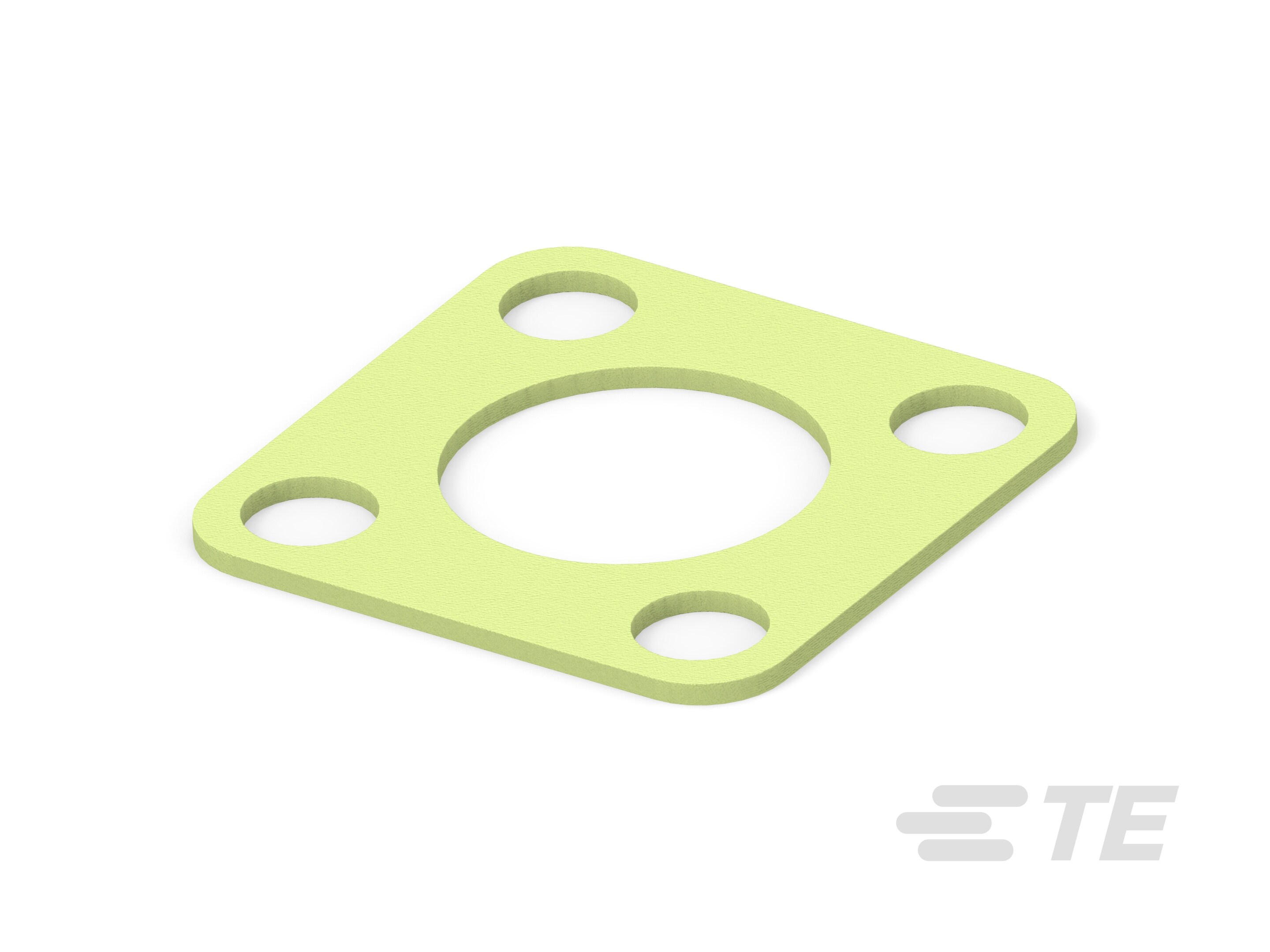

EMI Connector Gasket, Conductive Sheet, Fluorosilicone Binding, Silver Plated Aluminum (Ag/Al) Filler, Sheet, .8 mm [.031 in] Thick, Kemtron 92 Series
92-22050
EMI Connector Gasket, Conductive Sheet, Fluorosilicone Binding, Silver Plated Aluminum (Ag/Al) Filler, Sheet, .8 mm [.031 in] Thick, Kemtron 92 Series
-
- Kemtron
- Kemtron 92 Series
- TE Internal #: 2424021-1
- TE Internal Description: Conn G FSA 5015 Shell 16
- Mil-Spec: MIL-DTL-5015
- All Standard MIL-DTL-5015 Connector Gaskets (60)
-
Gasket Type : EMI Connector Gasket
-
Finished Type : Conductive Sheet
-
Binding Material : Fluorosilicone
-
Filler Material : Silver Plated Aluminum (Ag/Al)
-
Gasket Shape : Sheet
