95-22012

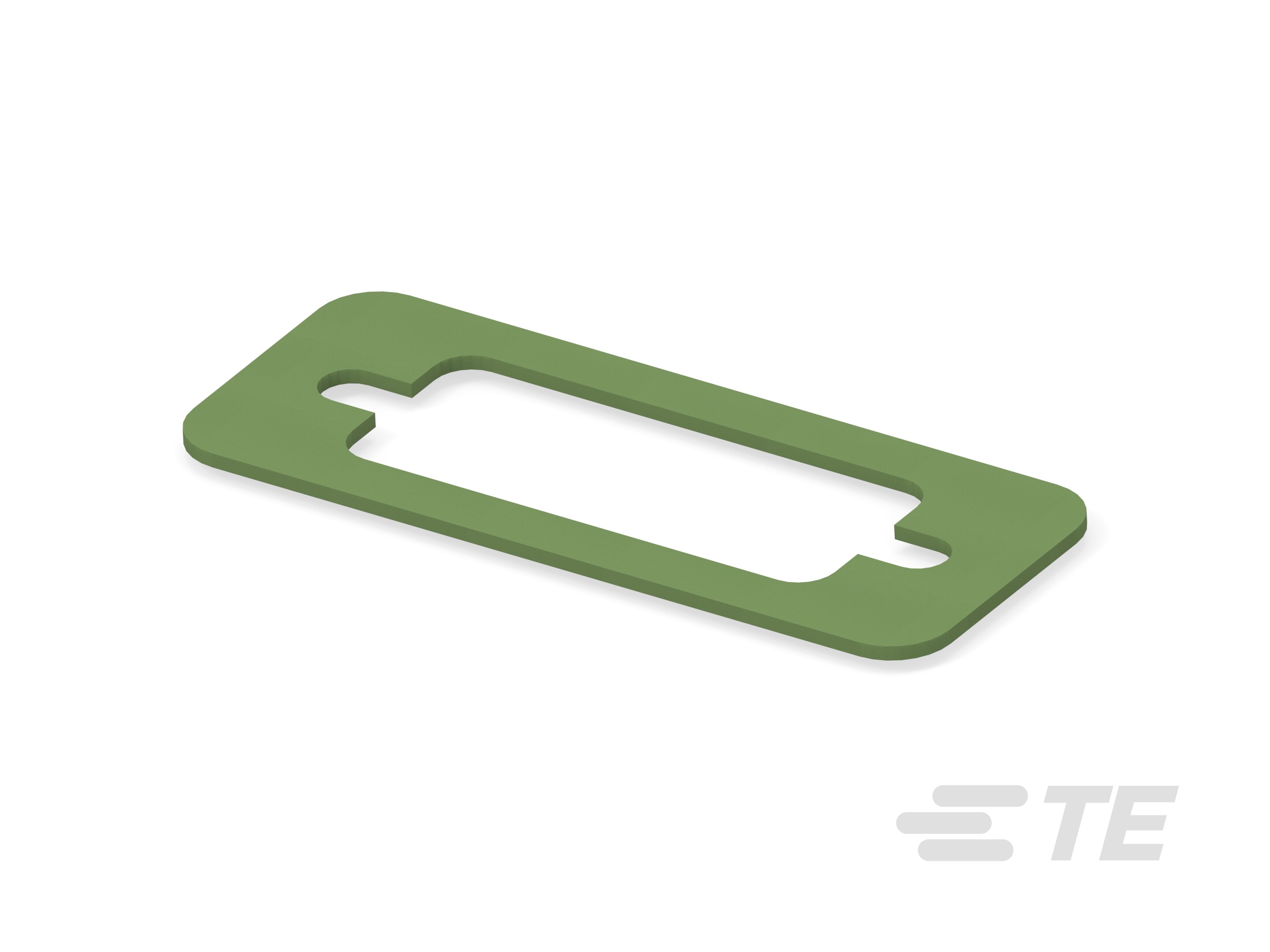

EMI Connector Gasket, Nickel Plated Graphite (Ni/C) Filler, .8 mm [.031 in] Thick, 44.2 mm [1.74 in] Wide, Petroleum Resistant, Kemtron 95 Series
95-22012
EMI Connector Gasket, Nickel Plated Graphite (Ni/C) Filler, .8 mm [.031 in] Thick, 44.2 mm [1.74 in] Wide, Petroleum Resistant, Kemtron 95 Series
-
- Kemtron
- Kemtron 95 Series
- TE Internal #: 2430148-1
- TE Internal Description: Conn G FNG 0.8mm D-Sub 15 Pin
- All D-Sub Conn Gaskets for RFI/EMI Shielding (40)
-
Gasket Type : EMI Connector Gasket
-
Filler Material : Nickel Plated Graphite (Ni/C)
-
Product Thickness : .8 mm [ .031 in ]
-
Product Width : 44.2 mm [ 1.74 in ]
-
Operating Temperature Range : -55 – 160 °C [ -67 – 320 °F ]
Documents
Product Drawings
- 95-ELASTOMER-D-SUB-RANGE ENG_CD_95-D-CONNECTOR-GASKETS_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2430148-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2430148-1_A.3d_igs.zip English
- ENG_CVM_CVM_2430148-1_A.3d_stp.zip English
- ENG_CVM_CVM_2430148-1_A.2d_dxf.zip English
Datasheets & Catalog Pages
- Performance Materials brochure ENG_CS_performance-materials-brochure_A.pdf English
- Connector Gasket ENG_DS_connector-gasket_D.pdf English
Product Specifications
- Application Specification ENG_SS_114-120007_A3.pdf English
- Product Specification ENG_SS_108-120068_B2.pdf English
