• Ground Feature Type : M3 Threaded Hole

• Grounding Options : None

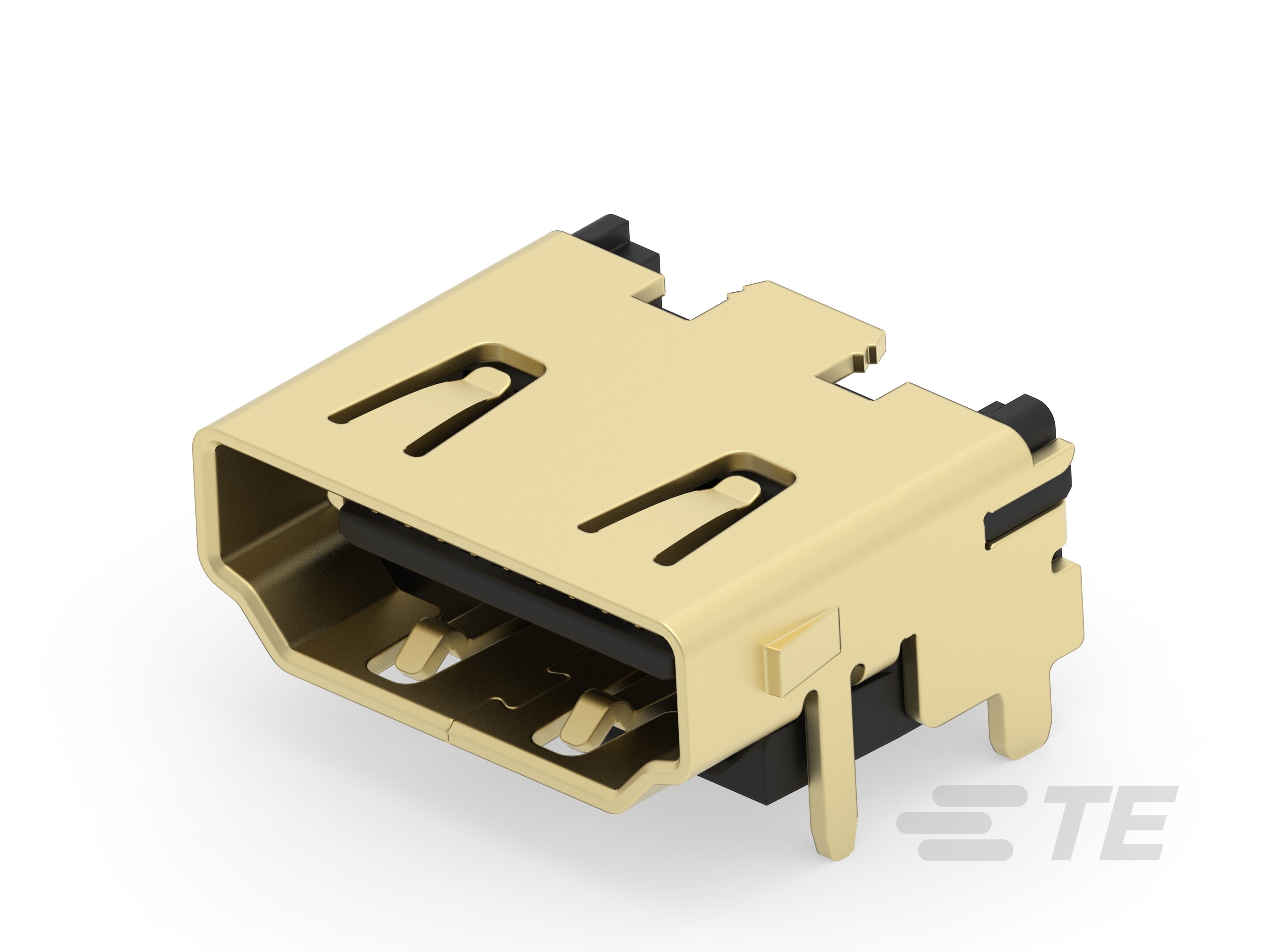

• Connector & Housing Type : Receptacle

• Connector System : Cable-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Stacked : No

• Number of Ports : 1

• PCB Mount Orientation : Right Angle

• Number of Positions : 19

• Shell Plating Finish : Bright

• Shell Plating Material : Nickel

• Connector Profile : Standard

• Contact Mating Area Plating Material Thickness (µin): .076

• Contact Mating Area Plating Material : Gold Flash

• Contact Current Rating (Max) (A): .5

• Termination Method to PCB : Surface Mount

• PCB Mount Location : Top

• Connector Mounting Type : Board Mount

• Centerline (Pitch) : .5 mm [ .019 in ]

• PCB Thickness (Min) : 1.6 mm [ .063 in ]

• Mating Cycles (Max) : 10000

• Soldering Temperature (Max) (°C): 260

• Operating Temperature Range : -4 – 185 °C [ -4 – 185 °F ]

• Assembly Process Feature : Carrier Tape

• Circuit Application : Signal
