Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

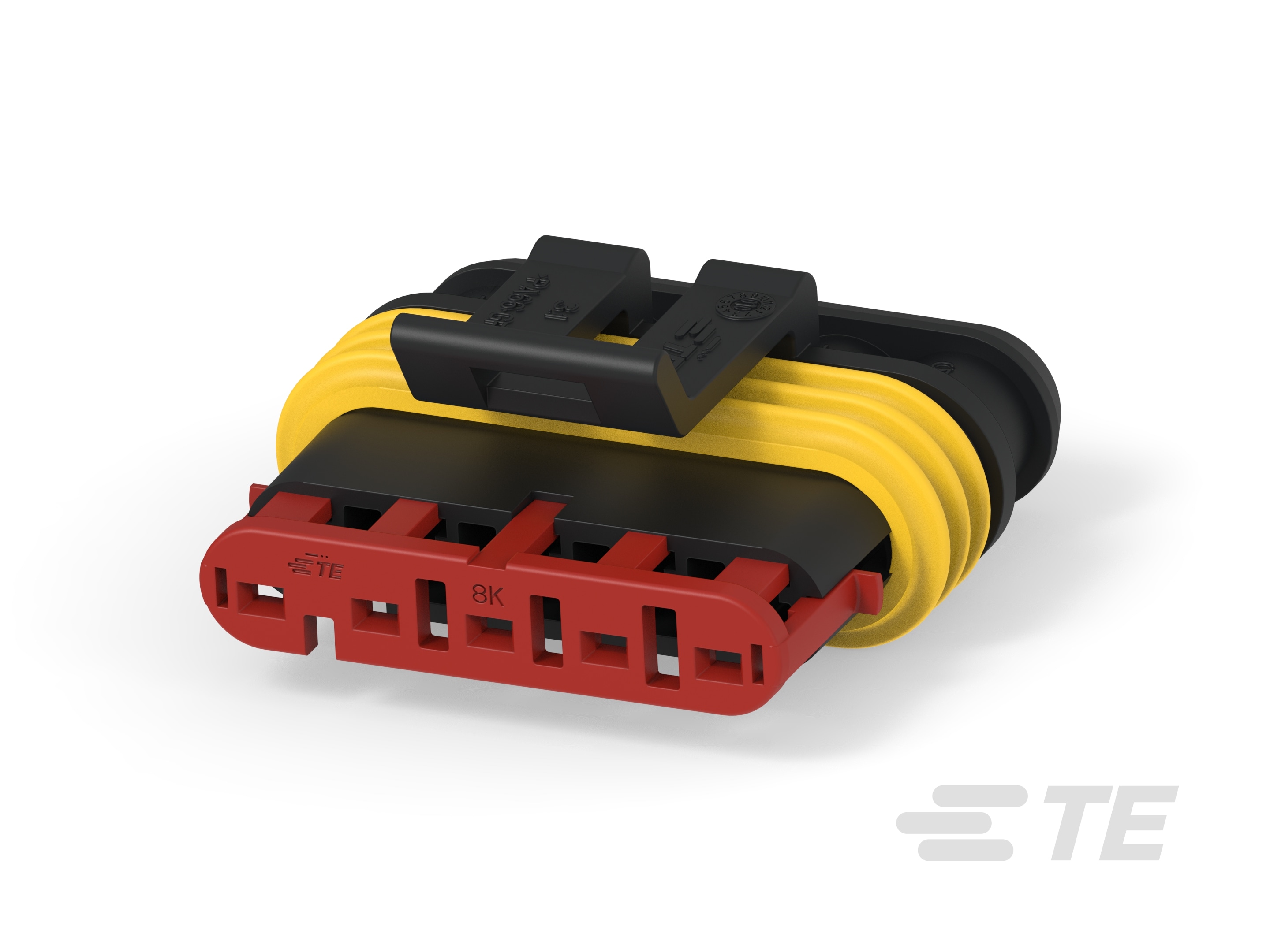

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Positions : 5

• Number of Rows : 1

• Operating Voltage (VDC): 24

• Nominal Voltage Architecture (V): 12, 24

• Primary Product Color : Black

• Connector & Keying Code : Neutral

• Cable Exit Angle : 180°

• Mating Tab Width : 1.5 mm [ .059 in ]

• Contact Current Rating (Max) (A): 14

• Contact Size : 1.5mm

• Contact Type : Receptacle

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Polarizing Slot

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PA GF

• Centerline (Pitch) : 6 mm [ .236 in ]

• Product Width : 9.3 mm [ .366 in ]

• Connector Height : 32.2 mm [ 1.268 in ]

• Product Length : 40.9 mm [ 1.61 in ]

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257

• Circuit Application : Signal

• IP Rating : IP67

• Packaging Method : Bag

• Packaging Quantity : 400
