Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

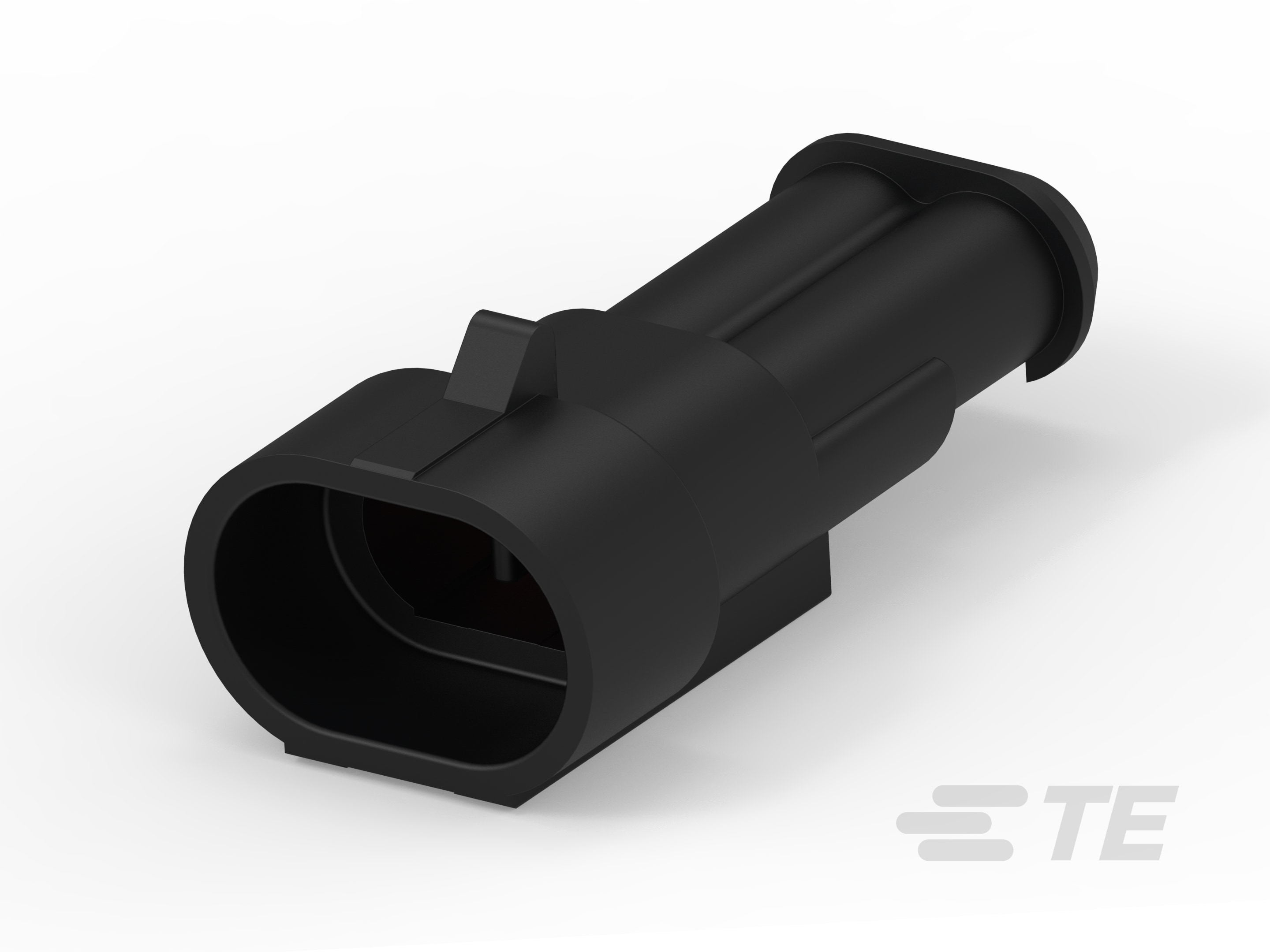

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Male Terminals

• Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Housing Material : PA GF

• Centerline (Pitch) : 6 mm [ .236 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Connector & Keying Code : Neutral

• Operating Voltage (VDC): 24

• Nominal Voltage Architecture (V): 24, 12

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Contact Type : Tab

• Contact Size : 1.5mm

• Contact Current Rating (Max) (A): 14

• Mating Alignment : With

• Mating Alignment Type : Polarizing Rib

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Box

• Packaging Quantity : 1500

• Connector Height : 42 mm [ 1.654 in ]

• Product Length : 19.8 mm [ .78 in ]

• Product Width : 13.8 mm [ .543 in ]

• IP Rating : IP67

• Number of Positions : 2

• Number of Rows : 1

• Operating Temperature (Max) (°C): 125

• Operating Temperature (Max) (°F): 248, 221, 167, 158, 230, 176, 194, 185, 212, 257

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
