Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

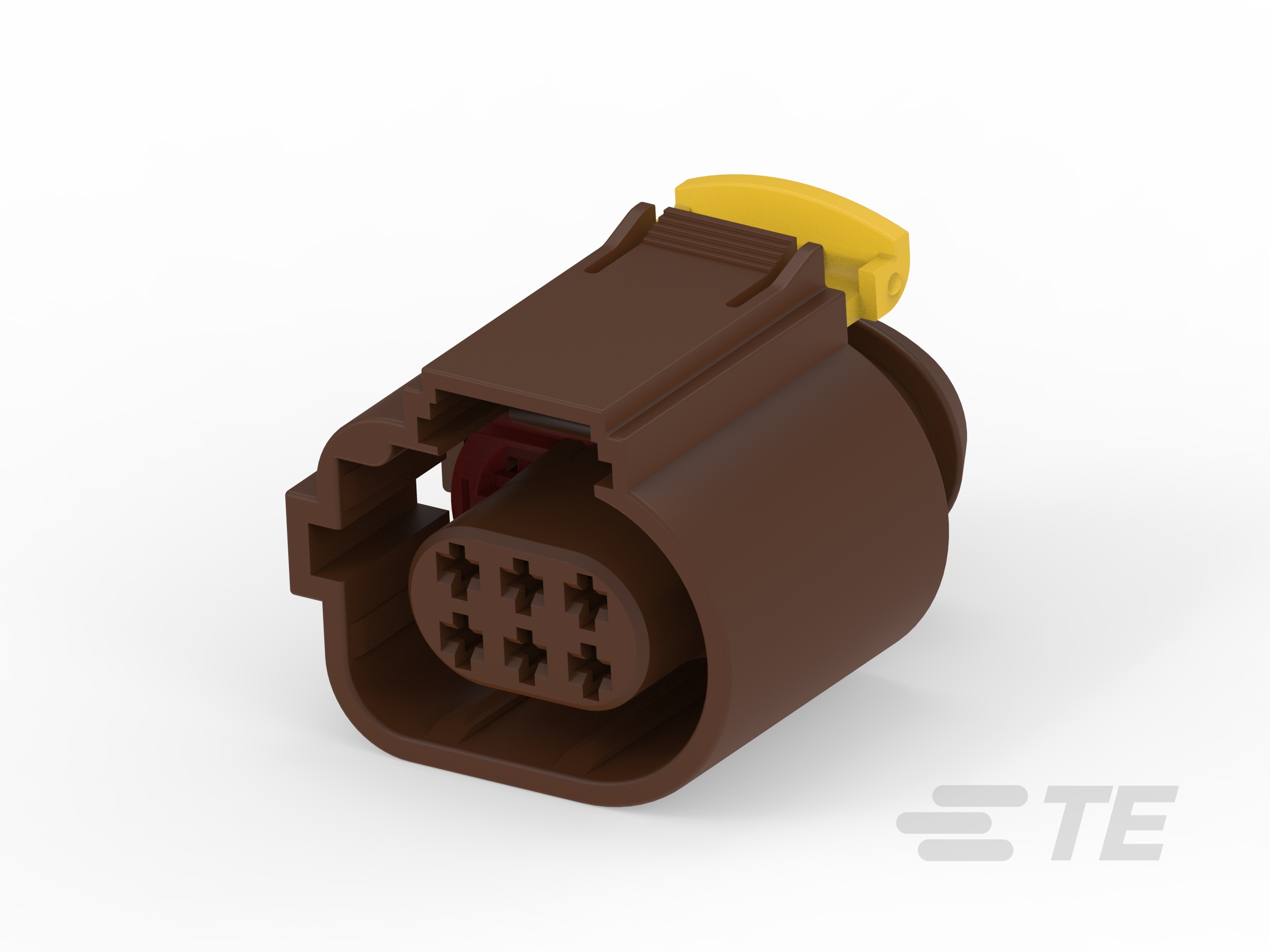

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 1.6mm

• Mating Tab Width : 1.6 mm [ .062 in ]

• Contact Current Rating (Max) (A): 10

• Housing Material : PA GF

• Centerline (Pitch) : 4 mm [ .157 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Brown

• Operating Voltage (VDC): 24

• Nominal Voltage Architecture (V): 24, 12

• Serviceable : Yes

• Connector Position Assurance Capable : Yes

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Bag

• Connector Height : 30.3 mm [ 1.193 in ]

• Product Length : 29.4 mm [ 1.157 in ]

• Product Width : 24.2 mm [ .953 in ]

• Row-to-Row Spacing : 5 mm [ .197 in ]

• Number of Positions : 6

• Number of Rows : 2

• Operating Temperature (Max) : 140 °C [ 284 °F ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
