Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

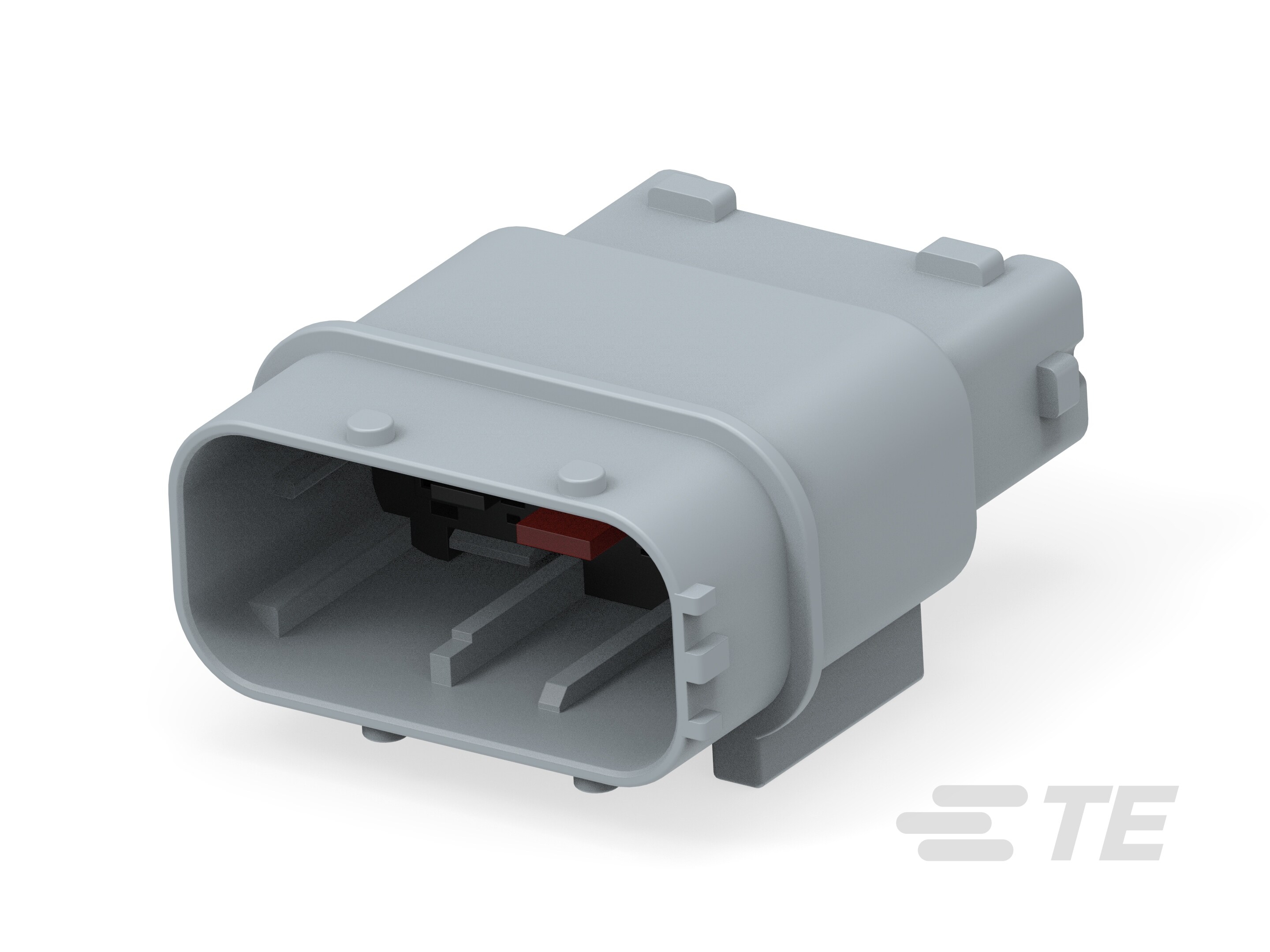

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : Yes

• Connector & Housing Type : Housing for Male Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Housing Material : PA GF

• Centerline (Pitch) : 5 mm [ .196 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Gray

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Contact Type : Tab

• Contact Size : 2.8mm, 1.5mm

• Contact Current Rating (Max) (A): 11, 20

• Mating Alignment : With

• Mating Alignment Type : Polarizing Rib

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Bag

• Packaging Quantity : 500

• Connector Height : 21.5 mm [ .846 in ]

• Product Length : 41.4 mm [ 1.629 in ]

• Product Width : 49.4 mm [ 1.944 in ]

• Row-to-Row Spacing : 6 mm [ .236 in ]

• Operating Voltage (VDC): 24

• Number of Positions : 12

• Number of Rows : 2

• Operating Temperature (Max) (°C): 125, 80, 105, 90, 100, 85, 75, 70, 110, 120

• Operating Temperature (Max) (°F): 248, 221, 167, 158, 230, 176, 194, 185, 212, 257

• Operating Temperature Range : -25 – 125 °C [ -13 – 257 °F ]
