View products below to see detailed pricing

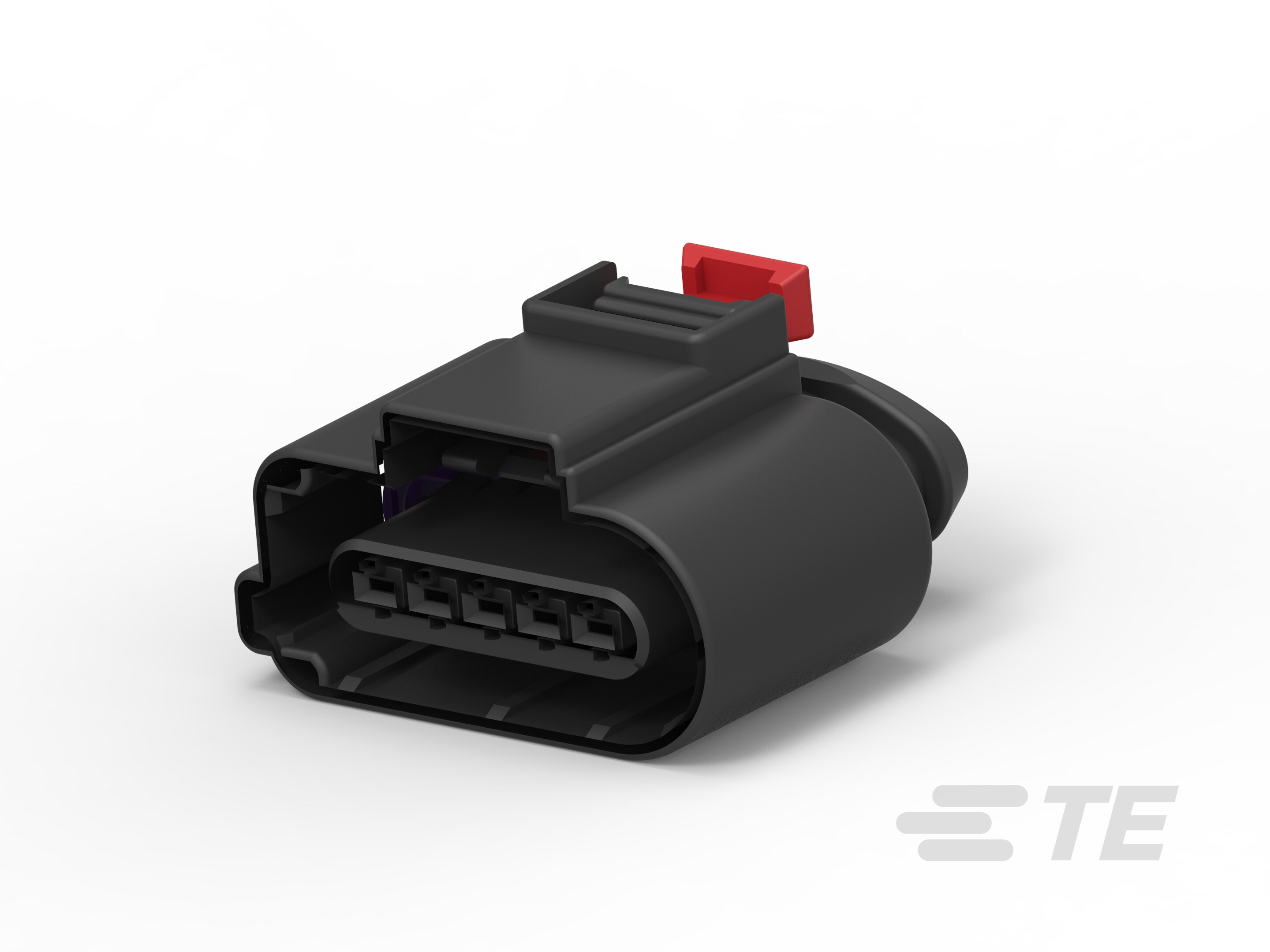

AMP MCP, SEALED CONNECTOR HOUSING

Product Features

Number of Positions : 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 22, 24, 38, 44, 46
Connector & Housing Type : Housing for Female Terminals, Housing for Male Terminals, Plug
Mating Tab Width (mm): .6, .63, .64, 1.2, 1.5, 1.6, 1.8, 2.8, 4.8, 6.3, 9.5
Mating Tab Width (in): .023, .025, .047, .059, .06, .063, .071, .11, .189, .248, .374, 2.48
Mating Pin Diameter : 1.59 mm [ .063 in ]
Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Panel, Wire-to-Wire

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Sealable	Mating Tab Width	Number of Rows	Primary Product Color	Connector & Contact Terminates To	Contact Current Rating (Max)	Circuit Application	Connector Mounting Type	Operating Temperature (Max)	Nominal Voltage Architecture	Connector Position Assurance Capable	Primary Locking Feature	Connector & Keying Code	Operating Temperature Range
18POS, MIXED,REC HSG,ASSY,SEALED	2-2112780-7	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	14	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
18POS, MIXED,REC HSG,ASSY,SEAL	4-2112780-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	13	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
2.8MM SLD 3P PLUG ASSY-RAIL	936061-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	3	-	5 mm	Yes	2.8 mm	1	Black	-	-	Signal	Cable Mount (Free-Hanging)	-	-	No	-	II	-
2.8MM SLD 6P PLUG ASSY	936394-2	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	5 mm	Yes	2.8 mm	1	Black	-	-	Signal	Cable Mount (Free-Hanging)	-	-	No	Integrated in Housing	-	-
MCP-E SLD 6P CAP ASSY GRY	936294-3	3D PDF	Wire-to-Wire	6	Housing for Male Terminals	5.6 mm	Yes	2.8 mm	2	Gray	Wire & Cable	-	Signal	Cable Mount (Free-Hanging)	-	-	No	Integrated in Housing	-	-
3 POS CONNECTOR FOR INJECTION	1-284425-1	3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4 mm	Yes	1.5 mm	1	Black	-	-	Signal	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V	Yes	Integrated in Housing	-	-40 – 140 °C
2 POS. CONN. FOR SPARK COIL	1-284556-1	3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4 mm	Yes	1.5 mm	1	Black	-	-	Signal	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V	Yes	Integrated in Housing	-	-40 – 140 °C
18POS, MIXED,REC HSG,ASSY,SEALED	1-2112780-6	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	14	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
3 POS CONNECTOR FOR INJECTION	1-284425-3	3D PDF	Wire-to-Device	3	Housing for Female Terminals	4 mm	Yes	1.5 mm	1	Gray	-	-	Signal	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V	Yes	Integrated in Housing	-	-40 – 140 °C
12 POS MCP HYBRID MALE CONNECTOR	1-284844-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	5 mm	Yes	1.6 mm, 2.8 mm	2	Black	Wire & Cable	-	Signal	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C	-	No	On the Terminal	-	-25 – 125 °C
12 POS MALE HOUSING ASS'Y	284858-2	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.2 mm	No	1.5 mm, 2.8 mm	2	Gray	Wire & Cable	14 A, 20 A	Power	Cable Mount (Free-Hanging)	105 °C	24 V	No	Integrated in Housing	B	-25 – 105 °C
9W SEALED CONNECTOR FOR MCP CONTACT	1801286-1	Product Drawing 3D PDF	Wire-to-Wire	9	Housing for Female Terminals	5 mm	Yes	2.8 mm	2	Black	Wire & Cable	18 A	Power	Cable Mount (Free-Hanging)	100 °C	48 V	No	On the Terminal	Neutral	-40 – 100 °C
12 POS MCP HYBRID FEMALE CONNECTOR	284848-7	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	5 mm	Yes	1.5 mm, 2.8 mm	2	Black	Wire & Cable	-	-	Cable Mount (Free-Hanging)	125 °C	-	Yes	Integrated in Housing	-	-25 – 125 °C
MQS/MCP HYB 22P CAP ASSY	1897540-1	3D PDF	Wire-to-Wire	22	Housing for Male Terminals	2.54 mm, 5 mm	No	.63 mm, 2.8 mm	3	Natural	Wire & Cable	-	-	Cable Mount (Free-Hanging)	-	-	No	Integrated in Housing	-	-
18POS, MIXED,REC HSG,ASSY,SEALED	2-2112780-4	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	13	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
18POS, MIXED,REC HSG,ASSY,SEALED	4-2112780-6	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	16	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
6POS,AMP MCP 1.5K,REC HSG,ASSY,SLD	4-1823467-8	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4 mm	Yes	1.5 mm	2	Gray	Wire & Cable	-	Signal	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C	14 V	Yes	Integrated in Housing	H	-40 – 150 °C
18POS, MIXED,REC HSG,ASSY,SEALED	3-2112780-8	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	17	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
MCP 2.8 8/4P PLUG HSG S-BLU/D	3-2109442-9	3D PDF	Wire-to-Wire	4	Housing for Female Terminals	3 mm	No	2.8 mm	1	Light Blue	Wire & Cable	-	-	Cable Mount (Free-Hanging)	257 °C	-	No	Integrated in Housing	D	-40 – 125 °C
5/4W MCP RCPT HSG ASSY Buy on te.com	953600-1	Product Drawing 3D PDF	Wire-to-Wire	5	Housing for Female Terminals	5 mm	Yes	2.8 mm	1	Black	Wire & Cable	16 A	Power	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C	48 V	No	Integrated in Housing	-	-40 – 100 °C
MCP 2.8 8/6P PLUG ASSY B-GRY/C	2-2109441-5	Product Drawing 3D PDF	Wire-to-Board	6	Housing for Female Terminals	6 mm	Yes	2.8 mm	2	Light Gray	Wire & Cable	-	Power	Cable Mount (Free-Hanging)	125 °C	-	Yes	Locking Lance	C	-40 – 125 °C
5POS,AMP MCP1.5K,REC. HSG	6-2137400-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	5	Housing for Female Terminals	4 mm	Yes	1.6 mm	1	Gray	-	-	Signal	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C	-	Yes	On the Terminal	II	-40 – 120 °C
5POS,AMP MCP1.5K,REC. HSG	6-2137400-8	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	5	Housing for Female Terminals	4 mm	Yes	1.6 mm	1	Black	-	-	Signal	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C	-	Yes	On the Terminal	VIII	-40 – 120 °C
MCP-E SLD 4P CAP ASSY BLK	936293-2	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	5.6 mm	No	2.8 mm	2	Black	-	-	Signal	Cable Mount (Free-Hanging)	-	-	No	Integrated in Housing	-	-
15 WAY MCP 2.8 SEALED CONNECTOR	1745072-2	Product Drawing 3D PDF	Wire-to-Wire	15	Housing for Female Terminals	5 mm	Yes	2.8 mm	2	Gray	Wire & Cable	30 A	Power & Signal	Cable Mount (Free-Hanging)	130 °C	12 V, 24 V	No	On the Terminal	Neutral	-40 – 130 °C
4POS,AMP MCP1.5K,PLUG HSG,ASSY	1-1563305-4	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Female Terminals	4 mm	Yes	1.6 mm	1	Gray	Wire & Cable	-	-	Cable Mount (Free-Hanging)	-	-	Yes	Integrated in Housing	I	-
44POS,PR SPRNG CONTACT,REC HSG ASSY,SL	2305186-1	Product Drawing 3D PDF	Wire-to-Wire	44	Housing for Female Terminals	2.5 mm, 3 mm	Yes	-	2	Gray	Wire & Cable	-	-	Cable Mount (Free-Hanging)	105 °C	-	No	Integrated in Housing	-	-25 – 105 °C
3 POS CONNECTOR FOR INJECTION	284425-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4 mm	Yes	1.5 mm	1	Black	Wire & Cable	9 A, 10 A, 11 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V	Yes	Integrated in Housing	-	-40 – 140 °C
2.8MM SLD 5P PLUG ASSY	936062-1	3D PDF	Wire-to-Board, Wire-to-Device	5	-	5 mm	Yes	2.8 mm	1	Black	-	-	Signal	Cable Mount (Free-Hanging)	-	-	No	-	I	-
18POS, MIXED,REC HSG,ASSY,CODA	1-1670782-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	7 A, 29 A	Power	Cable Mount (Free-Hanging)	-	-	No	Integrated in Housing	A	-
24 POS FEM. CONN. SEALED FOR MCP 1.5/2.8	1745043-1	Product Drawing 3D PDF	Wire-to-Wire	24	Housing for Female Terminals	5 mm, 5.5 mm	Yes	1.5 mm, 2.8 mm	3	Black	Wire & Cable	15 A, 30 A	Power & Signal	Cable Mount (Free-Hanging)	120 °C	24 V	No	Integrated in Housing	Neutral	-40 – 120 °C
6POS,AMP MCP1.5K,REC HSG,CODA	1823467-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	6	Housing for Female Terminals	4 mm	Yes	1.5 mm	2	Black	-	-	Signal	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, 145 °C, 150 °C	12 V	No	Integrated in Housing	A	-40 – 150 °C
18POS, MIXED,REC HSG,ASSY,SEALED	3-2112780-9	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	13	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
2 POS HSG AMP MCP 2.8 ASSY Buy on te.com	1-1718624-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	5 mm	Yes	2.8 mm	1	Black	Wire & Cable	34 A	Power	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C	12 V, 24 V, 48 V	Yes	On the Terminal	A	-40 – 130 °C
AMP MCP 2.8 HSG. 4POS.,ASS'Y	1-1718628-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Female Terminals	5 mm	Yes	2.8 mm	1	Black	Wire & Cable	34 A	Power	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C	12 V, 24 V, 48 V	No	On the Terminal	A	-40 – 120 °C
ASSY, PLUG, 2P SEALED, 2.8 MCP	1326455-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	6.5 mm	Yes	2.8 mm	1	Black	-	-	Signal	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C	12 V, 24 V	No	On the Terminal	-	-40 – 85 °C
38POS, MIXED,REC HSG,ASSY,SEALED	1-2112499-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	38	Housing for Female Terminals	4 mm	Yes	1.5 mm, 2.8 mm, 4.8 mm, 6.3 mm	3	Black	Wire & Cable	40 A	Power	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C	12 V	No	On the Terminal	0	-40 – 130 °C
18POS, MIXED,REC HSG,ASSY,SEALED	1-2112780-9	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	18	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
20 POS MALE HOUSING ASSY	284879-6	Product Drawing 3D PDF	Wire-to-Wire	20	Housing for Male Terminals	4.2 mm	No	1.5 mm, 2.8 mm	2	Brown	Wire & Cable	-	-	Cable Mount (Free-Hanging)	105 °C	-	No	On the Terminal	C	-25 – 105 °C
AMP MCP 2.8K - REC. ASSY	1745078-2	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	5.5 mm	Yes	2.8 mm	2	Black	Wire & Cable	30 A	Power & Signal	Cable Mount (Free-Hanging)	130 °C	12 V, 24 V	Yes	On the Terminal	Neutral	-40 – 130 °C
18POS, MIXED,REC HSG,ASSY,SEALED	2-2112780-5	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	14	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
2.8MM SLD 2P CAP HSG	936462-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	2	Housing for Female Terminals	5 mm	No	2.8 mm	1	Black	-	-	Signal	Cable Mount (Free-Hanging)	-	-	No	-	-	-
18POS, MIXED,REC HSG,ASSY,SEALED	2-2112780-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	15	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
REC. HSG.,4POSN.,RAD.SEAL,AMP MCP2.8K	1-1718562-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	4	Housing for Female Terminals	6 mm	Yes	2.8 mm	1	Black	Wire & Cable	34 A	Power	Cable Mount (Free-Hanging)	70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C	12 V, 24 V	No	On the Terminal	I	-40 – 130 °C
12 POS. FEMALE CONNECTOR FOR S	284953-1	Product Drawing 3D PDF	Wire-to-Panel	12	Housing for Female Terminals	5 mm	Yes	.6 mm	3	Black	Wire & Cable	11 A	Signal	Panel Mount	70 °C, 75 °C, 80 °C, 85 °C	12 V, 24 V	No	On the Terminal	-	-25 – 85 °C
20 W. MALE CONNECTOR ASSY	284879-5	Product Drawing 3D PDF	Wire-to-Wire	20	Housing for Male Terminals	4.2 mm	No	1.5 mm, 2.8 mm	2	Brown	Wire & Cable	-	-	Cable Mount (Free-Hanging)	105 °C	-	No	On the Terminal	C	-25 – 105 °C
12 POS MALE HOUSING ASS'Y	284858-4	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.2 mm	No	1.5 mm, 2.8 mm	2	Gray	Wire & Cable	14 A, 20 A	Power	Cable Mount (Free-Hanging)	105 °C	24 V	No	Integrated in Housing	B	-25 – 105 °C
18POS, MIXED,REC HSG,ASSY,SEALED	4-2112780-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	14	Housing for Female Terminals	3.5 mm	Yes	1.2 mm, 2.8 mm	2	Black	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	130 °C	50 V	No	Integrated in Housing	A	-40 – 130 °C
12 POS MALE HOUSING ASS'Y	284858-3	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.2 mm	No	1.5 mm, 2.8 mm	2	Black	Wire & Cable	14 A, 20 A	Power	Cable Mount (Free-Hanging)	105 °C	24 V	No	Integrated in Housing	A	-25 – 105 °C
6POS,AMP MCP 1.5K,REC HSG,ASSY,SLD	2-1823467-6	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4 mm	Yes	1.5 mm	2	White	-	-	Signal	-	-	-	Yes	Integrated in Housing	F	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Mixed & Hybrid Connector No, Yes
Connector Shape Circular, Rectangular
Connector & Housing Type Housing for Female Terminals, Housing for Male Terminals, Plug
Connector System Wire-to-Board, Wire-to-Device, Wire-to-Panel, Wire-to-Wire
Sealable No, Yes
Primary Locking Feature Integrated in Housing, Locking Lance, On the Terminal
Connector & Contact Terminates To Printed Circuit Board, Wire & Cable

Configuration Features

Blank Cavity Position 1, 10, 11, 12, 14, 15, 16, 17, 2, 3, 4, 5, 6, 7, 8, 9, 0
Number of Positions 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 22, 24, 38, 44, 46
Number of Rows 1, 2, 3, 5

Electrical Characteristics

Operating Voltage (VDC) 12, 14, 16, 24, 28, 30, 32, 50, 500
Operating Voltage (VAC) 12, 50
Nominal Voltage Architecture (V) 12, 14, 16, 24, 25, 28, 36, 48, 50

Body Features

Cable Exit Angle 180°, 90°
Primary Product Color Black, Blue, Brown, Gray, Light Blue, Light Gray, Natural, Orange, Red, White
Connector & Keying Code 1, 2, A, A-C, B, B-D, C, D, E, F, H, I, II, Neutral, VIII, 0

Contact Features

Contact Type Pin, Receptacle, Tab
Contact Size .64mm, 1.2mm, 1.5K, 1.5mm, 1.8mm, 2.8K, 2.8mm, 4.8mm, 6.3mm, 9.5mm, Size 16
Mating Tab Width (mm) .6, .63, .64, 1.2, 1.5, 1.6, 1.8, 2.8, 4.8, 6.3, 9.5
Mating Tab Width (in) .023, .025, .047, .059, .06, .063, .071, .11, .189, .248, .374, 2.48
Mating Pin Diameter 1.59 mm [ .063 in ]
Contact Current Rating (Max) (A) 7, 9, 10, 11, 14, 15, 16, 18, 20, 23, 29, 30, 34, 35, 40, 44, 78

Mechanical Attachment

Mating Alignment With
Terminal Position Assurance No, Yes
Mating Alignment Type Keyed, Polarized, Polarizing Rib, Polarizing Slot
Strain Relief Add By Accessory, With, Without
Connector Mounting Type Board Mount, Cable Mount (Free-Hanging), Panel Mount

Housing Features

Housing Material PA, PA 66, PA 66 GF, PA 66 GF13, PA 66 GF15, PA 66 GF20, PA 66 GF30, PA GF, PBT, PBT/ASA-GF20, PBT GF, PBT GF20, PBT GF30
Centerline (Pitch) (mm) 2.5, 2.54, 3, 3.5, 4, 4.2, 4.3, 4.8, 5, 5.46, 5.5, 5.6, 6, 6.5, 16.5
Centerline (Pitch) (in) .098, .1, .118, .138, .157, .16, .169, .188, .19, .196, .197, .2, .215, .216, .217, .22, .23, .236, .256, .649, .65

Dimensions

Product Width (mm) 14.9, 15.5, 20.1, 20.8, 21.5, 22.1, 22.6, 22.7, 22.9, 24, 26.25, 26.6, 26.8, 27.3, 28.1, 29.7, 30.45, 30.5, 31.25, 31.4, 31.5, 31.75, 32, 32.6, 33, 33.2, 33.3, 33.4, 33.5, 34, 34.3, 34.5, 35, 36.1, 36.4, 36.7, 37.1, 37.7, 38, 42, 42.7, 44.1, 48.5, 48.9, 49.4, 49.83, 93.59
Product Width (mm) 14.9, 15.5, 20.1, 20.8, 21.5, 22.1, 22.6, 22.7, 22.9, 24, 26.25, 26.6, 26.8, 27.3, 28.1, 29.7, 30.45, 30.5, 31.25, 31.4, 31.5, 31.75, 32, 32.6, 33, 33.2, 33.3, 33.4, 33.5, 34, 34.3, 34.5, 35, 36.1, 36.4, 36.7, 37.1, 37.7, 38, 42, 42.7, 44.1, 48.5, 48.9, 49.4, 49.83, 93.59
Product Width (in) .586, .61, .791, .81, .819, .85, .87, .89, .893, .902, .944, .945, 1.03, 1.047, 1.05, 1.055, 1.07, 1.1, 1.169, 1.19, 1.2, 1.23, 1.236, 1.24, 1.25, 1.26, 1.28, 1.29, 1.299, 1.3, 1.307, 1.31, 1.315, 1.32, 1.33, 1.35, 1.36, 1.378, 1.42, 1.433, 1.44, 1.46, 1.461, 1.48, 1.49, 1.65, 1.68, 1.74, 1.9, 1.92, 1.944, 1.95, 1.962, 3.685
Product Length (mm) 18, 19.4, 20.6, 22.6, 22.7, 23.6, 25, 25.5, 25.6, 26.2, 26.4, 29.5, 30, 30.7, 30.8, 31, 31.25, 32.1, 33.4, 33.5, 33.8, 34.3, 35.5, 35.51, 36.8, 37, 37.8, 39.1, 40.6, 41.4, 43.8, 44.1, 45.8, 46.8, 47.2, 47.5, 49.83, 51.1, 51.8, 56.9, 57.6, 58, 60.3, 66.8, 73.1, 79.9, 86, 89.7, 93.59
Row-to-Row Spacing (in) .1, .118, .124, .126, .133, .157, .16, .177, .197, .21, .216, .217, .22, .226, .23, .236, .24, .248, .267, .307, .35, .433, 1.08
Connector Height (mm) 12.4, 13.9, 14.1, 16.6, 17.6, 19.5, 20.1, 21.1, 21.4, 21.5, 22.1, 22.5, 22.6, 22.7, 22.8, 23.1, 23.3, 24, 24.6, 26, 26.6, 27.3, 29.8, 30.27, 30.5, 31, 31.4, 31.85, 32.6, 32.8, 33, 33.3, 33.7, 34, 34.9, 35.7, 36.1, 36.4, 37.1, 38.7, 38.8, 39.26, 49.4, 49.8, 50.4, 52.6, 59, 83.9, 87.9
Connector Height (mm) 12.4, 13.9, 14.1, 16.6, 17.6, 19.5, 20.1, 21.1, 21.4, 21.5, 22.1, 22.5, 22.6, 22.7, 22.8, 23.1, 23.3, 24, 24.6, 26, 26.6, 27.3, 29.8, 30.27, 30.5, 31, 31.4, 31.85, 32.6, 32.8, 33, 33.3, 33.7, 34, 34.9, 35.7, 36.1, 36.4, 37.1, 38.7, 38.8, 39.26, 49.4, 49.8, 50.4, 52.6, 59, 83.9, 87.9
Connector Height (in) .488, .547, .654, .693, .768, .791, .831, .843, .846, .87, .885, .89, .894, .898, .909, .91, .917, .944, .96, 1.024, 1.04, 1.05, 1.075, 1.17, 1.173, 1.19, 1.201, 1.22, 1.236, 1.254, 1.283, 1.291, 1.299, 1.311, 1.32, 1.34, 1.374, 1.4, 1.421, 1.43, 1.46, 1.461, 1.524, 1.53, 1.546, 1.94, 1.96, 1.984, 2.07, 2.32, 3.3, 3.46, 5.55
Row-to-Row Spacing (mm) 2.54, 2.75, 3, 3.15, 3.2, 3.4, 4, 4.5, 5, 5.5, 5.6, 5.75, 6, 6.3, 6.8, 7.8, 8.9, 11
Row-to-Row Spacing (in) .1, .118, .124, .126, .133, .157, .16, .177, .197, .21, .216, .217, .22, .226, .23, .236, .24, .248, .267, .307, .35, .433, 1.08
Product Length (mm) 18, 19.4, 20.6, 22.6, 22.7, 23.6, 25, 25.5, 25.6, 26.2, 26.4, 29.5, 30, 30.7, 30.8, 31, 31.25, 32.1, 33.4, 33.5, 33.8, 34.3, 35.5, 35.51, 36.8, 37, 37.8, 39.1, 40.6, 41.4, 43.8, 44.1, 45.8, 46.8, 47.2, 47.5, 49.83, 51.1, 51.8, 56.9, 57.6, 58, 60.3, 66.8, 73.1, 79.9, 86, 89.7, 93.59
Product Length (in) .708, .764, .811, .89, .894, .929, .93, .984, 1, 1.004, 1.03, 1.039, 1.161, 1.181, 1.2, 1.21, 1.22, 1.23, 1.26, 1.315, 1.319, 1.33, 1.35, 1.39, 1.449, 1.457, 1.488, 1.53, 1.59, 1.629, 1.63, 1.724, 1.74, 1.8, 1.803, 1.84, 1.85, 1.87, 1.962, 2.01, 2.012, 2.04, 2.24, 2.27, 2.283, 2.37, 2.374, 2.63, 2.88, 3.14, 3.386, 3.53, 3.685

Usage Conditions

Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150, 257
Operating Temperature (Max) (°F) 120, 125, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302, 311
Operating Temperature Range (°C) -30 – 105, -40 – 125, -25 – 85, -40 – 130, -25 – 125, -40 – 140, -30 – 100, -40 – 85, -40 – 100, -40 – 150, -40 – 155, -25 – 105, -40 – 120
Operating Temperature Range (°F) -40 – 302, -40 – 311, -13 – 185, -13 – 257, -13 – 221, -40 – 257, -22 – 221, -40 – 284, -40 – 266, -40 – 185, -40 – 212, -22 – 212, -40 – 248

Operation/Application

Circuit Application Power, Power & Signal, Signal

Industry Standards

UL Flammability Rating UL 94HB, UL 94V-0, UL 94V-2
IP Rating IP30, IP54K, IP64K, IP67, IP69K, IP6K9K, IPX7, IPX9K
Compatible With Agency/Standards Products DIN IEC 512, GMW3191, IEC 529 IP 54

Packaging Features

Packaging Method Bag, Bag & Box, Box, Box & Carton, Carton, Container, Loose Piece, Package, Tray
Packaging Quantity 1, 40, 42, 50, 75, 84, 90, 100, 140, 150, 200, 220, 225, 300, 320, 400, 420, 450, 468, 500, 600, 700, 756, 900, 1000, 1500

Other

Serviceable No, Yes
Connector Position Assurance Capable No, Yes

Reference Number

TE Internal Number CAT-AM705-CH8172
