Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

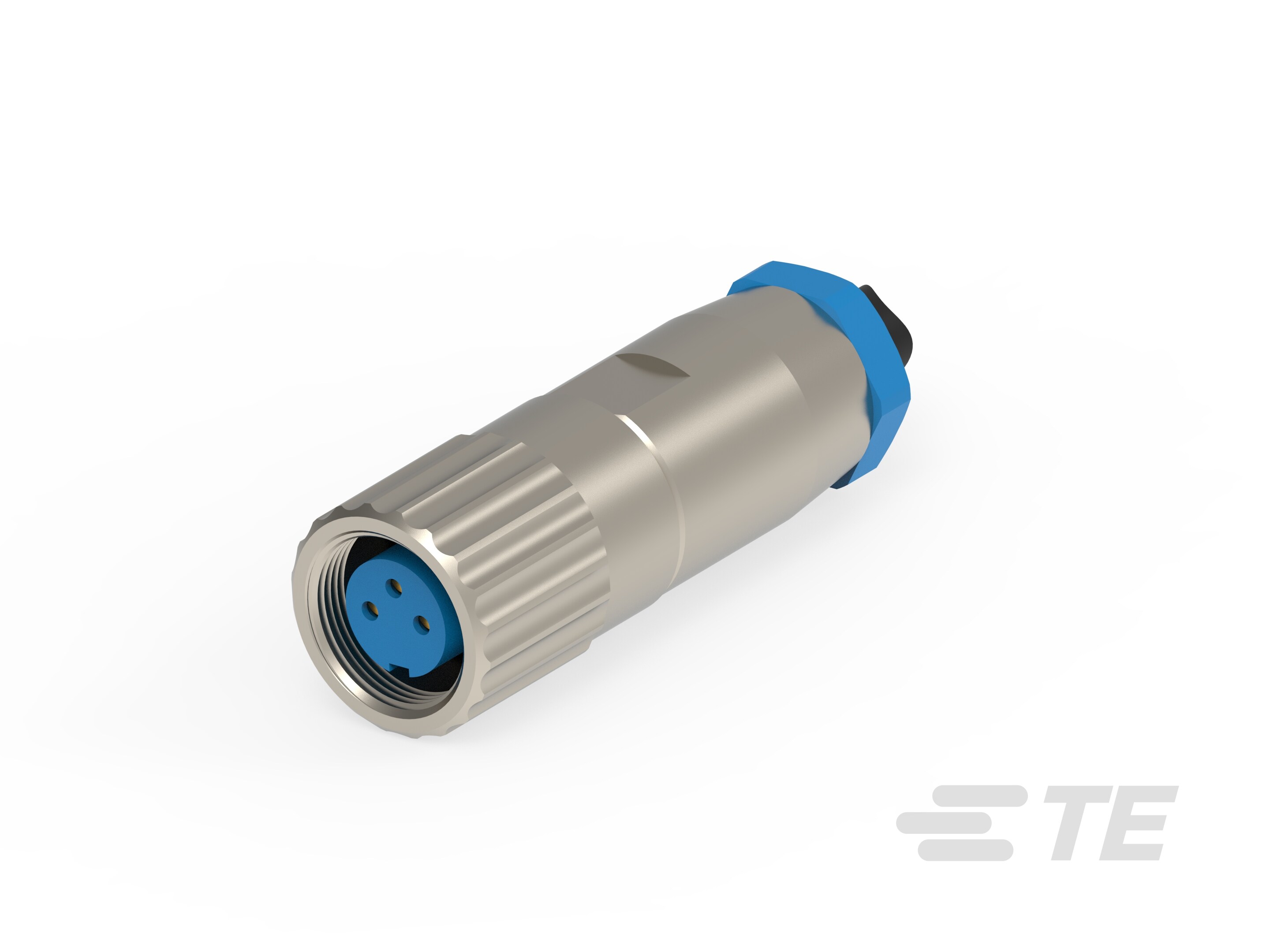

• Connector Product Type : Connector Assembly

• Prewired : Yes

• Connector System : Cable-to-Cable

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Circular Connector Type : Receptacle

• Shell Type : Metal

• Environmental Protection : With

• Environmental Protection Type : Sealed

• Shell Plating Material : Nickel

• Shell Base Material : CuZn

• Circular Connector Insulation Material Type : PBT

• Hermetically Sealed : No

• Assembly Length (mm): 38

• Compatible Insulation Diameter Range (mm): 5

• Wire Size (AWG): 24

• Wire Size (mm²): .25

• Packaging Quantity : 25

• UL Flammability Rating : UL 94V-2

• Operating Voltage (VAC): 60

• Number of Positions : 3

• Number of Power Positions : 0

• Number of Signal Positions : 3

• Contacts Preloaded : Yes

• Contact Current Rating (Max) (A): 3

• Reverse Gender : Yes

• Contact Layout Arrangement : Circular

• Circular Connector Contact Type : Socket

• Mating Retention : With

• Operating Temperature Range : -40 – 80 °C [ -40 – 176 °F ]

• Circuit Application : Signal

• Shielded : No
