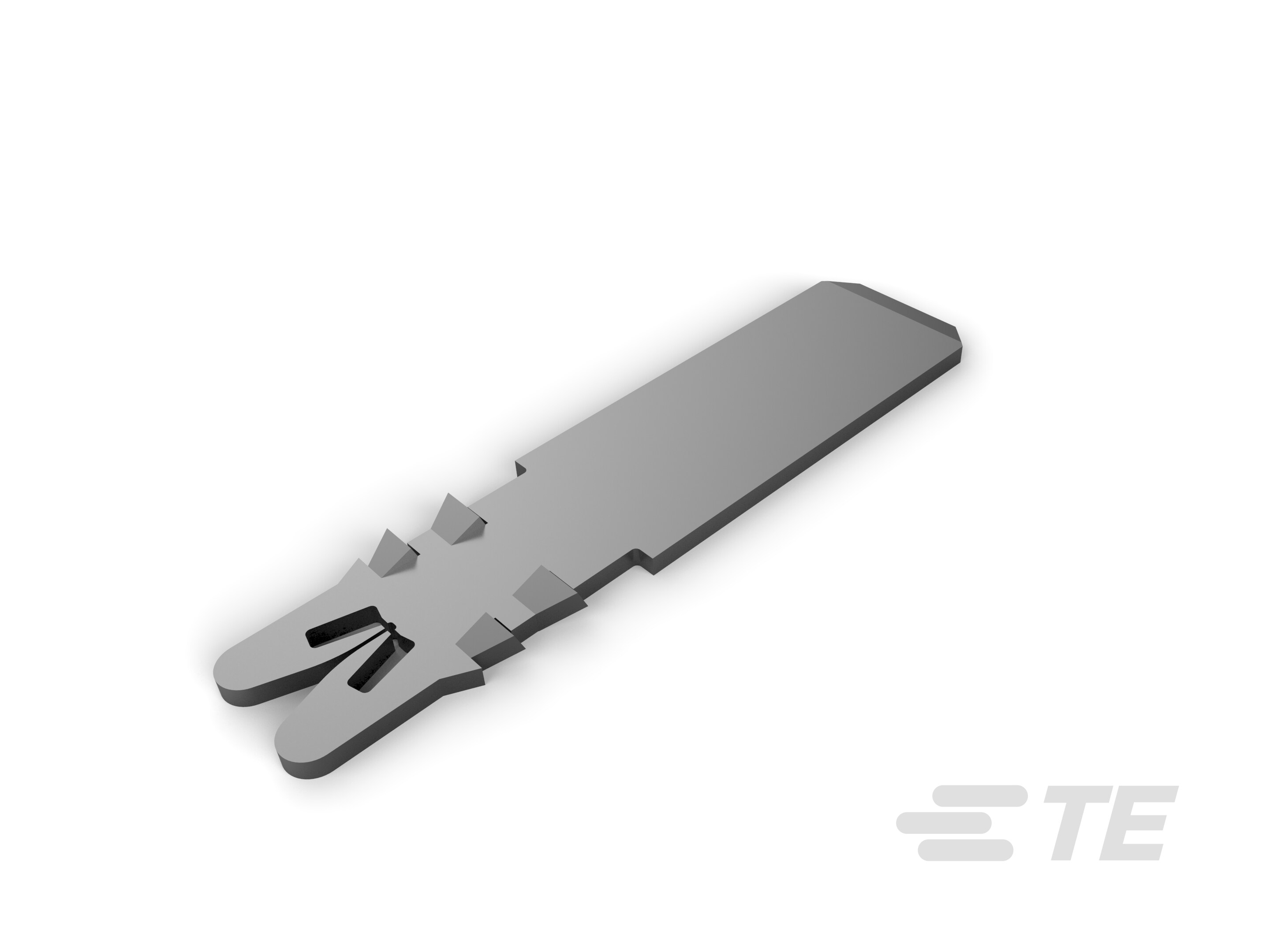

3-1601072-2
Tab, Mating Tab Width 4.75 mm [.02 in], Size 1, .16 – 1.02 mm Magnet Wire, 34 – 18 AWG Magnet Wire, SIAMEZE, Magnet Wire Terminals
3-1601072-2
Tab, Mating Tab Width 4.75 mm [.02 in], Size 1, .16 – 1.02 mm Magnet Wire, 34 – 18 AWG Magnet Wire, SIAMEZE, Magnet Wire Terminals
-
- SIAMEZE
- TE Internal #: 3-1601072-2
- TE Internal Description: .187 X .020 MULTI-BARB TAB SIA
-
Magnet Wire Terminal Type : Tab
-
Mating Tab Width : 4.75 mm [ .02 in ]
-
Mating Tab Thickness : .5 mm [ .02 in ]
-
Compatible With Cavity Size : Size 1
-
Magnet Wire Size (mm): .16 – 1.02
Documents
Product Drawings
- STD. WIRE RANGE TO .187 X .020 MULTI-BARB TAB SIAMEZE TERMINAL ENG_CD_1601072_E6.pdf English
- STANDARD TAB SIAMEZE POCKET SPECIFICATION English
- STANDARD TAB SIAMEZE POCKET SPECIFICATION ENG_CD_1601425_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-1601072-2_D_c-3-1601072-2-d-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_3-1601072-2_D_c-3-1601072-2-d.2d_dxf.zip English
- ENG_CVM_CVM_3-1601072-2_D_c-3-1601072-2-d.3d_igs.zip English
- ENG_CVM_CVM_3-1601072-2_D_c-3-1601072-2-d.3d_stp.zip English
Datasheets & Catalog Pages
- Magnet Wire Terminals & Splices ENG_DS_82221_MagnetWire_0616.pdf English
- 1-1773702-7 _IDC_Magnet_Wire ENG_DS_1-1773702-7_IDC_Magnet_Wire_0114_final_ENG_DS_82221_MagnetWire_01082014_final.pdf English
Product Specifications
- Application Specification ENG_SS_114-13166_E1.pdf English
- Product Specification ENG_SS_108-2085_C.pdf English
- Qualification Test Report ENG_SS_501-723_A.pdf English
