3-1670195-2

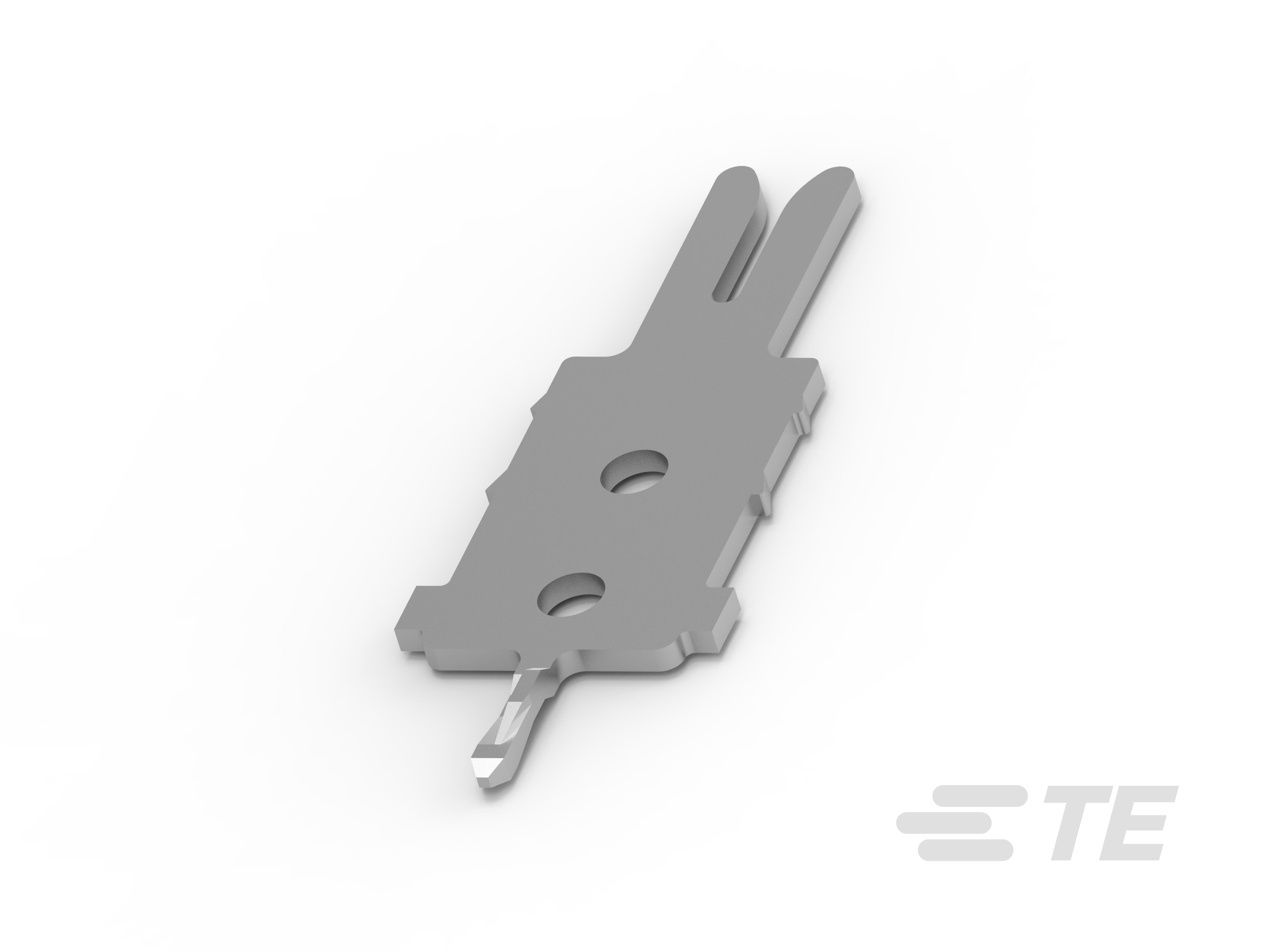

Tab Terminal, 3.45 mm [.135 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Terminates To Printed Circuit Board, Press Fit Pin
3-1670195-2
Tab Terminal, 3.45 mm [.135 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Terminates To Printed Circuit Board, Press Fit Pin
-
- Press Fit Pin
- TE Internal #: 3-1670195-2
- TE Internal Description: AP 0,63 X 0,8
- All PRESS FIT PIN TERMINALS (64)
-
Terminal Type : Tab
-
Mating Tab Width : 3.45 mm [ .135 in ]
-
Interface Plating : Tin (Sn)
-
Sealable : No
-
Mating Tab Thickness : .64 mm [ .025 in ]
Documents
Product Drawings
- TERMINAL WITH ACTION PIN Klemme mit ACTION PIN ENG_CD_1670195_A4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-1670195-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_3-1670195-2_A.2d_dxf.zip English
- ENG_CVM_CVM_3-1670195-2_A.3d_igs.zip English
- ENG_CVM_CVM_3-1670195-2_A.3d_stp.zip English
Datasheets & Catalog Pages
- Press-Fit Connections for the Automotive Industry ENG_CS_1654403-1_0616.pdf English
Product Specifications
- Product Specification ENG_SS_108-18643_A2.tif English
- ENG_SS_108-18643_A2.pdf English
