Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

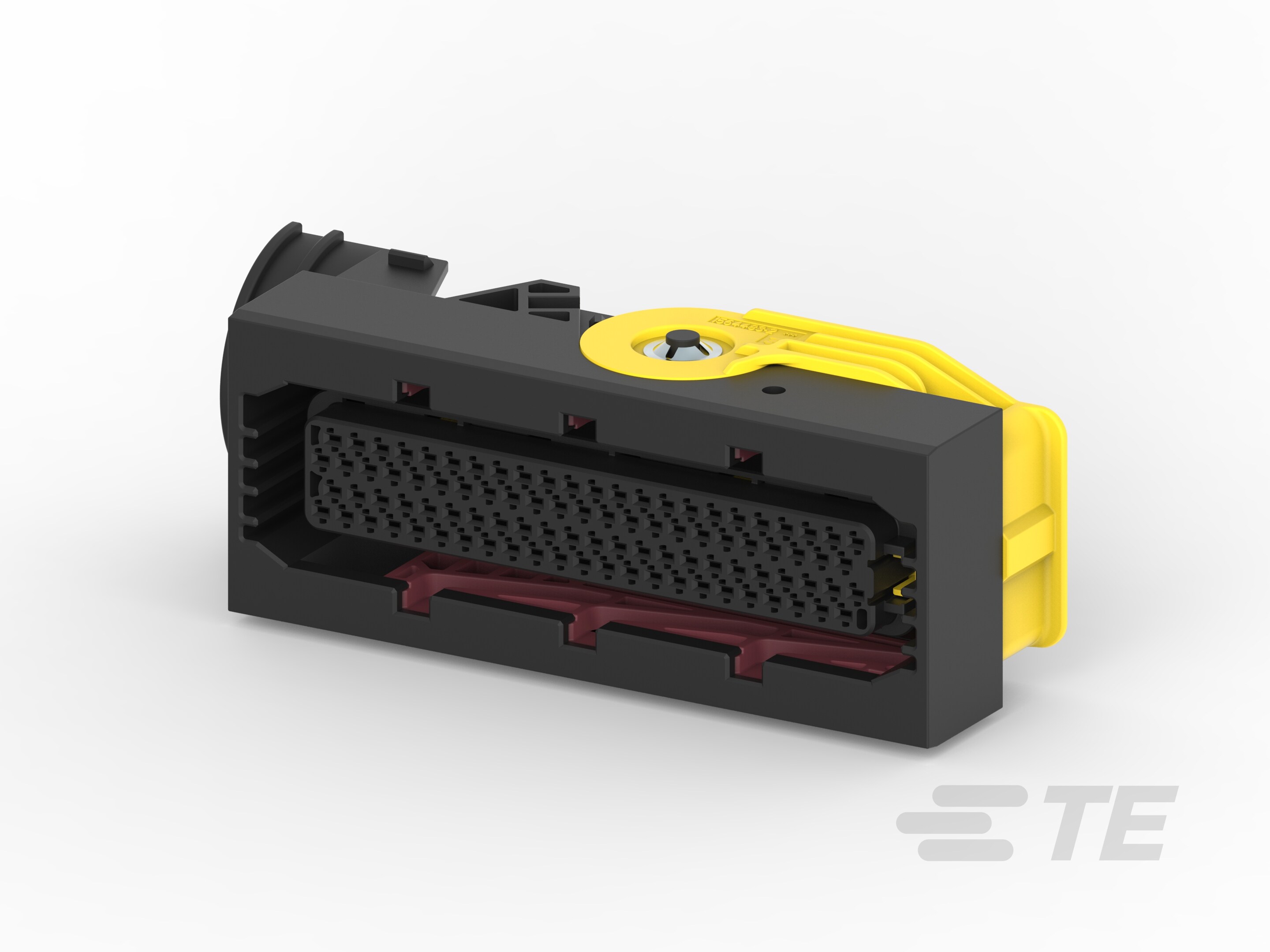

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board, Wire-to-Device

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 1.5K

• Mating Tab Width : 1.5 mm [ .059 in ]

• Contact Current Rating (Max) (A): 20

• Housing Material : PBT GF20

• Centerline (Pitch) : 4 mm [ .157 in ]

• Cable Exit Angle : 90°

• Primary Product Color : Black

• Connector & Keying Code : B

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Strain Relief : With

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Box

• Packaging Quantity : 64

• Connector Height : 50.2 mm [ 1.976 in ]

• Product Length : 135.8 mm [ 5.346 in ]

• Product Width : 45.5 mm [ 1.791 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• UL Flammability Rating : UL 94HB

• IP Rating : IP67

• Operating Voltage (VDC): 36

• Number of Positions : 92

• Number of Rows : 4

• Operating Temperature (Max) : 120 °C [ 248 °F ]

• Operating Temperature Range : -30 – 120 °C [ -22 – 248 °F ]
