Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

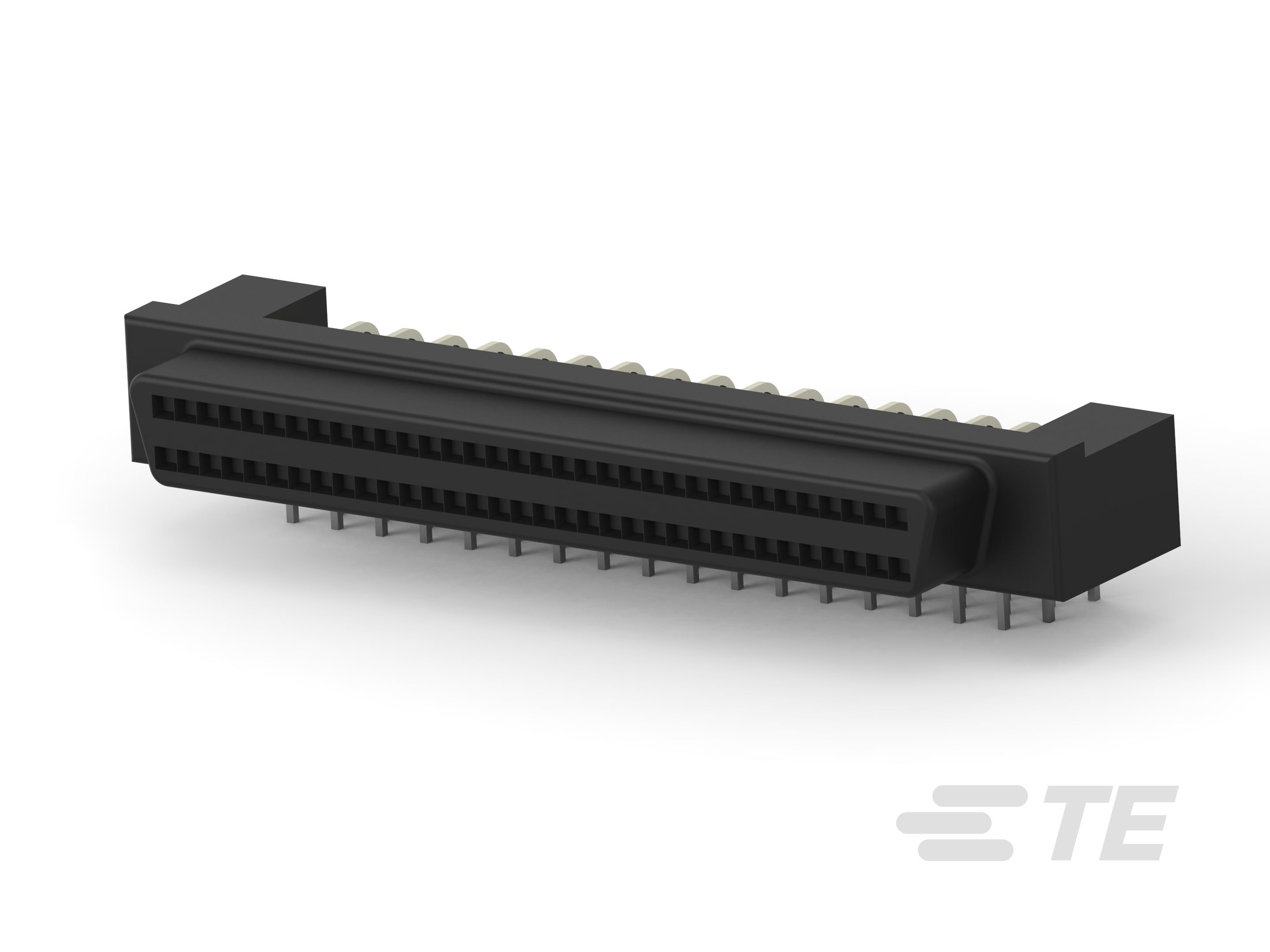

• Connector & Housing Type : Receptacle

• Connector System : Cable-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Shell Material Configuration : All Plastic

• Number of Positions : 68

• Number of Rows : 4

• PCB Mount Orientation : Right Angle

• Centerline (Pitch) : 1.27 mm [ .05 in ]

• Housing Material : Thermoplastic

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Contact Shape & Form : Square

• Contact Current Rating (Max) (A): 1

• PCB Contact Termination Area Plating Material : Tin, Tin over Nickel

• Contact Base Material : Copper Alloy

• Contact Mating Area Plating Material : Gold

• Contact Options : Installed

• Contact Mating Area Plating Material Thickness (µm): .76

• Connector Profile : Standard

• Primary Product Color : Black

• PCB Mount Retention : With

• PCB Mount Retention Type : Retention Solder Tails

• Mating Retention : Without

• Connector Mounting Type : Board Mount

• PCB Mount Alignment : Without

• Mating Alignment : Without

• Circuit Application : Signal

• Shielded : No

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Termination Post & Tail Length : 3.6 mm [ .142 in ]

• Termination Method to PCB : Through Hole - Solder

• Rectangular Termination Post & Tail Thickness : .4 mm [ .015 in ]

• Rectangular Termination Post & Tail Width : .45 mm [ .017 in ]

• UL Flammability Rating : UL 94V-0
