Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

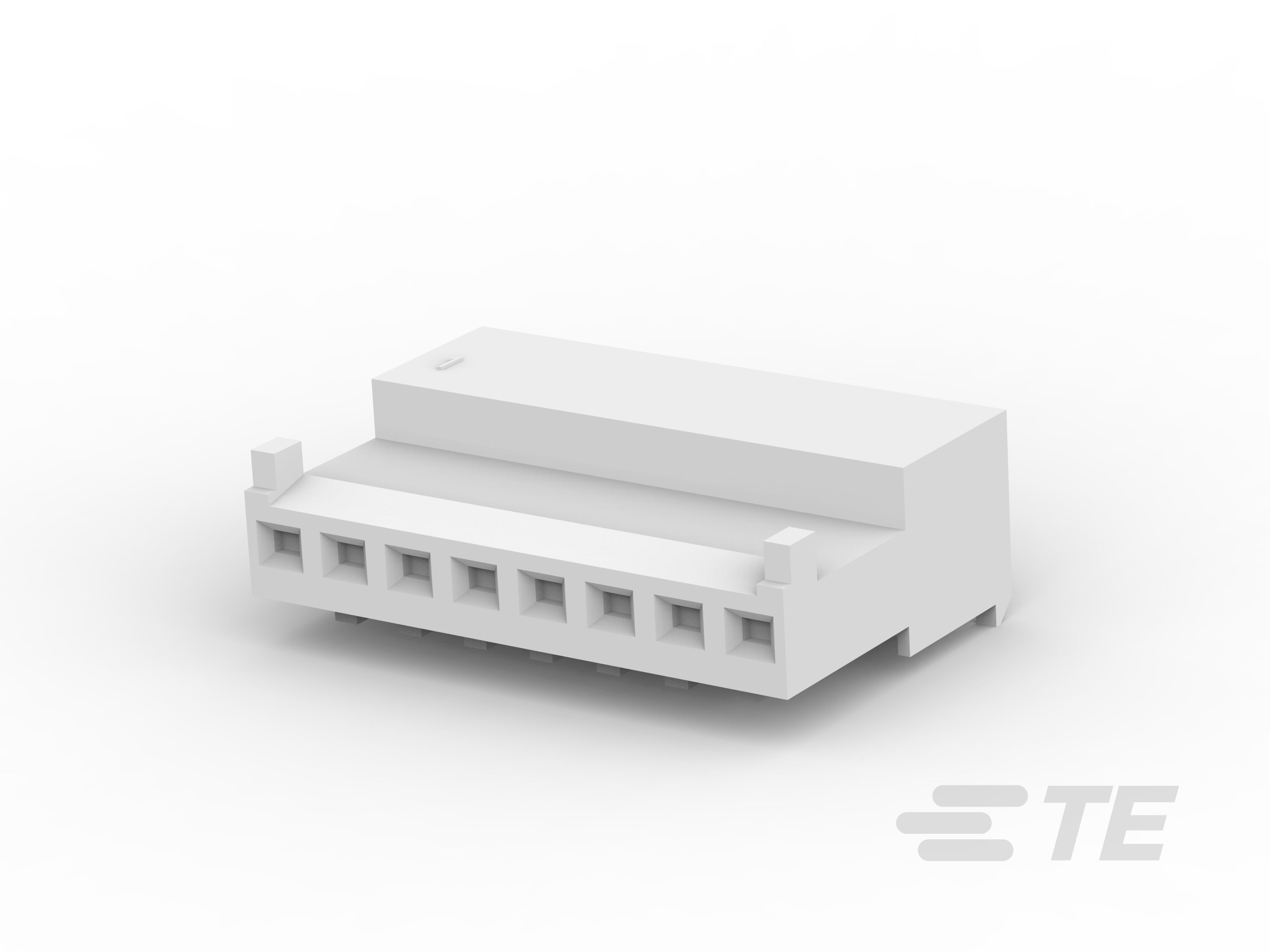

• Compatible With Discrete Wire Type : Stranded

• Connector Product Type : Connector Assembly

• Connector & Housing Type : Receptacle

• Connector System : Wire-to-Board

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Contact Retention Type Within Housing : Locking Lance

• Mating Alignment : With

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Locking Ramp

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Contact Type : Receptacle

• Wire Contact Termination Area Plating Material : Tin

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Tin

• Contact Retention Within Housing : With

• Contact Current Rating (Max) (A): 5

• CSA Rating : LR 7189

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : UL, CSA

• UL Flammability Rating : UL 94V-2

• Contacts Preloaded : Yes

• Number of Cavities : 8

• Number of Positions : 8

• Number of Rows : 1

• Housing Material : Nylon

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Connector Length : 20.32 mm [ .8 in ]

• Wire Size (AWG): 24

• Wire Size (mm²): .2

• Connector Height : 13.21 mm [ .52 in ]

• Connector Width : 6.99 mm [ .275 in ]

• Packaging Method : Package

• Packaging Quantity : 500

• Primary Product Color : White

• Termination Method to Wire & Cable : Insulation Displacement (IDC)

• Operating Voltage (VAC): 250

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Shielded : No

• Circuit Application : Signal
