31173

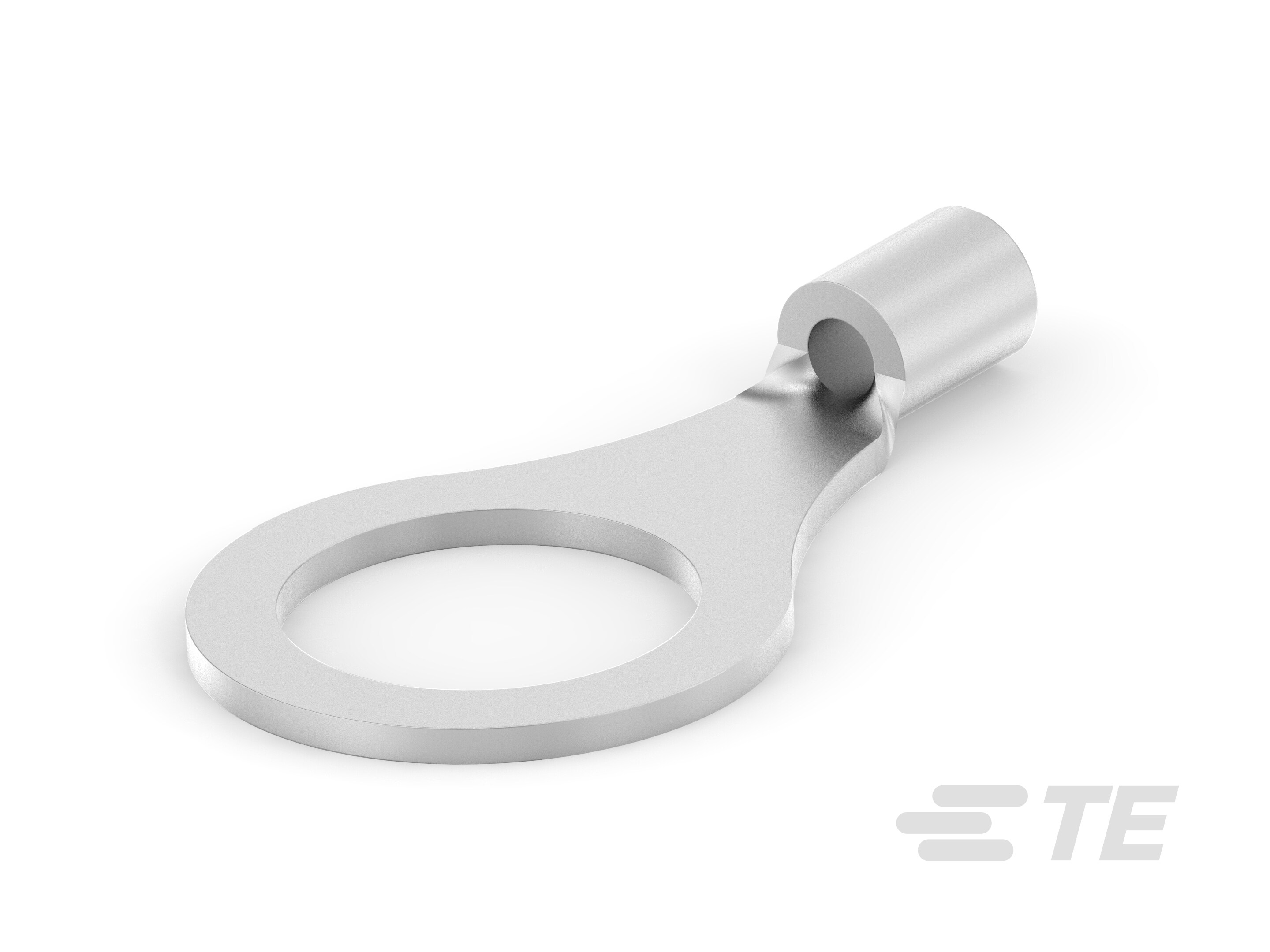

Closed Ring Tongue Terminal, 22 AWG, 5/16 / M8 Stud, 7.92 mm [.312 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, SOLISTRAND Budget
31173
Closed Ring Tongue Terminal, 22 AWG, 5/16 / M8 Stud, 7.92 mm [.312 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, SOLISTRAND Budget
-
- SOLISTRAND
- SOLISTRAND Budget
- TE Internal #: 31173
- TE Internal Description: BODY,RING TONGUE 22-18
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 22
-
Wire Size (mm²): .3 – 1.42
-
Wire Size (CMA): 509 – 3260
-
Stud Size : M8, 5/16
