322365

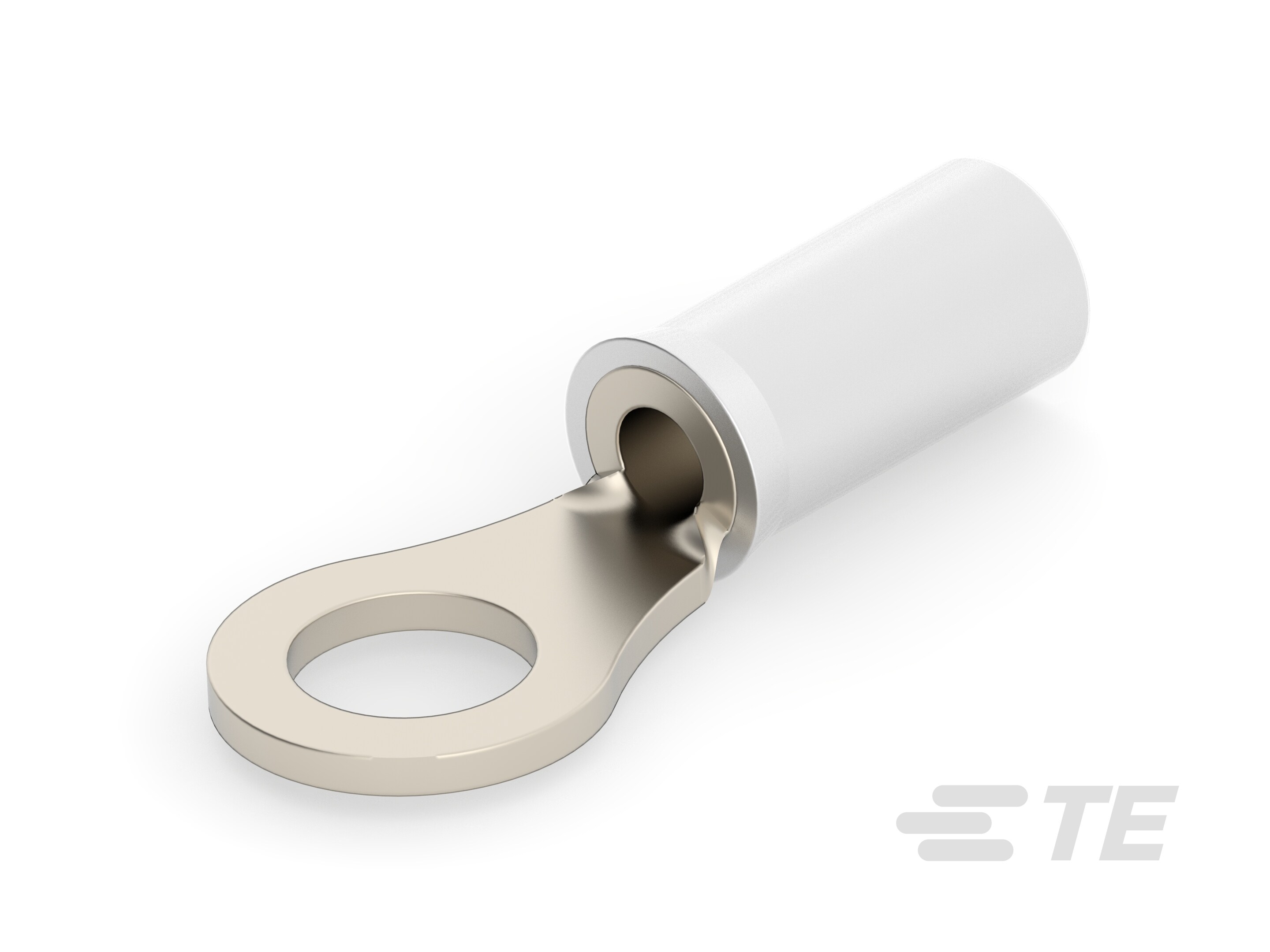

Closed Ring Tongue Terminal, 22 – 16 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, STRATO-THERM DIAMOND GRIP
322365
Closed Ring Tongue Terminal, 22 – 16 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, STRATO-THERM DIAMOND GRIP
-
- STRATO-THERM DIAMOND GRIP
- TE Internal #: 322365
- TE Internal Description: DG 22-16COM22-18MIL HR R 8
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 22 – 16
-
Wire Size (mm²): .26 – 1.65
-
Wire Size (CMA): 509 – 3260
-
Stud Size : 8, M4
Documents
Product Drawings
- TERMINAL, RING TONGUE,WIRE SIZE, 22-16 AWGSTRATOTHERM, DIAMOND GRIP, ENG_CD_322365_G.pdf English
- TERMINAL, RING TONGUE,WIRE SIZE, 22-16 AWGSTRATOTHERM, DIAMOND GRIP, English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_322365_M.pdf 3D
- Customer View Model ENG_CVM_CVM_322365_M.2d_dxf.zip English
- ENG_CVM_CVM_322365_M.3d_igs.zip English
- ENG_CVM_CVM_322365_M.3d_stp.zip English
Datasheets & Catalog Pages
- STRATO-THERM Terminals & Splices for High Temperature Applications ENG_CS_82011_0806_STRATO-THERM_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-2162_D.pdf English
Product And Material Test Reports
- Nickel Plated DIAMOND GRIP* Heat Resistant STRATO-THERM* ENG_PMTR_501-134081_B.pdf English
