32447

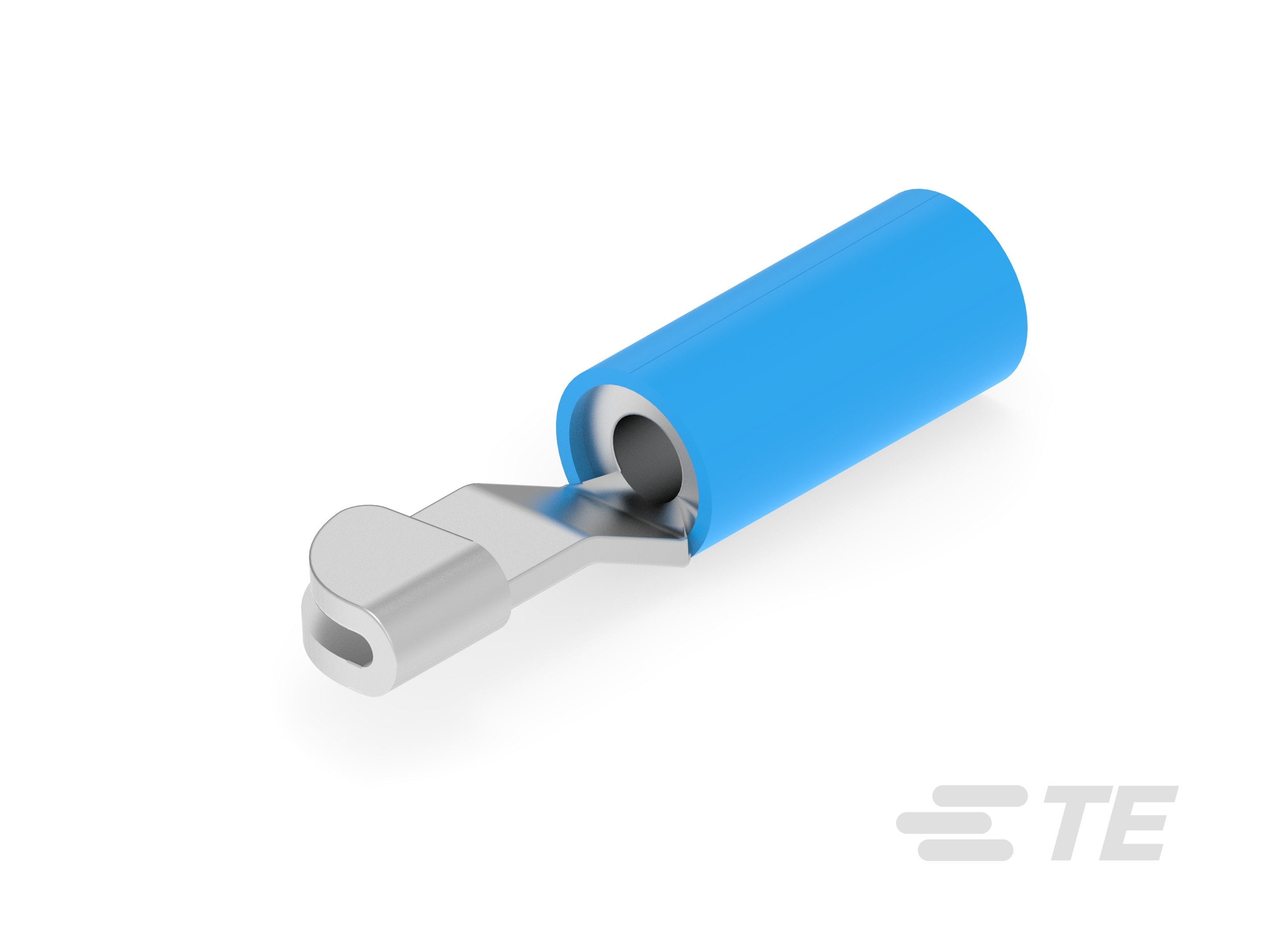

Tin, Wire Insulation Support, 16 – 14 AWG, 1.04 – 2.62 mm² Wire, 2.05 – 5.18 kcmil, Loose Piece, Partially Insulated, PIDG, Knife Disconnects
32447
Tin, Wire Insulation Support, 16 – 14 AWG, 1.04 – 2.62 mm² Wire, 2.05 – 5.18 kcmil, Loose Piece, Partially Insulated, PIDG, Knife Disconnects
-
- PIDG
- TE Internal #: 32447
- TE Internal Description: KNIFE DISCONNECT,PIDG 16-14
-
Body Plating Material : Tin
-
Wire Insulation Support : With
-
Compatible Insulation Diameter (Max) : 3.81 mm [ .15 in ]
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.04 – 2.62
Documents
Product Drawings
- TERMINAL, PIDG KNIFE DISONNECT, WIRE SIZE 16-14 AWG ENG_CD_32447_D2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_32447_N.pdf 3D
- Customer View Model ENG_CVM_CVM_32447_N.2d_dxf.zip English
- ENG_CVM_CVM_32447_N.3d_igs.zip English
- ENG_CVM_CVM_32447_N.3d_stp.zip English
Agency Approvals
- Agency Approval Document ENG_AAD_UL_E13288_19790928_A_20130730092559.pdf English
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6223_1693113_A.pdf English
