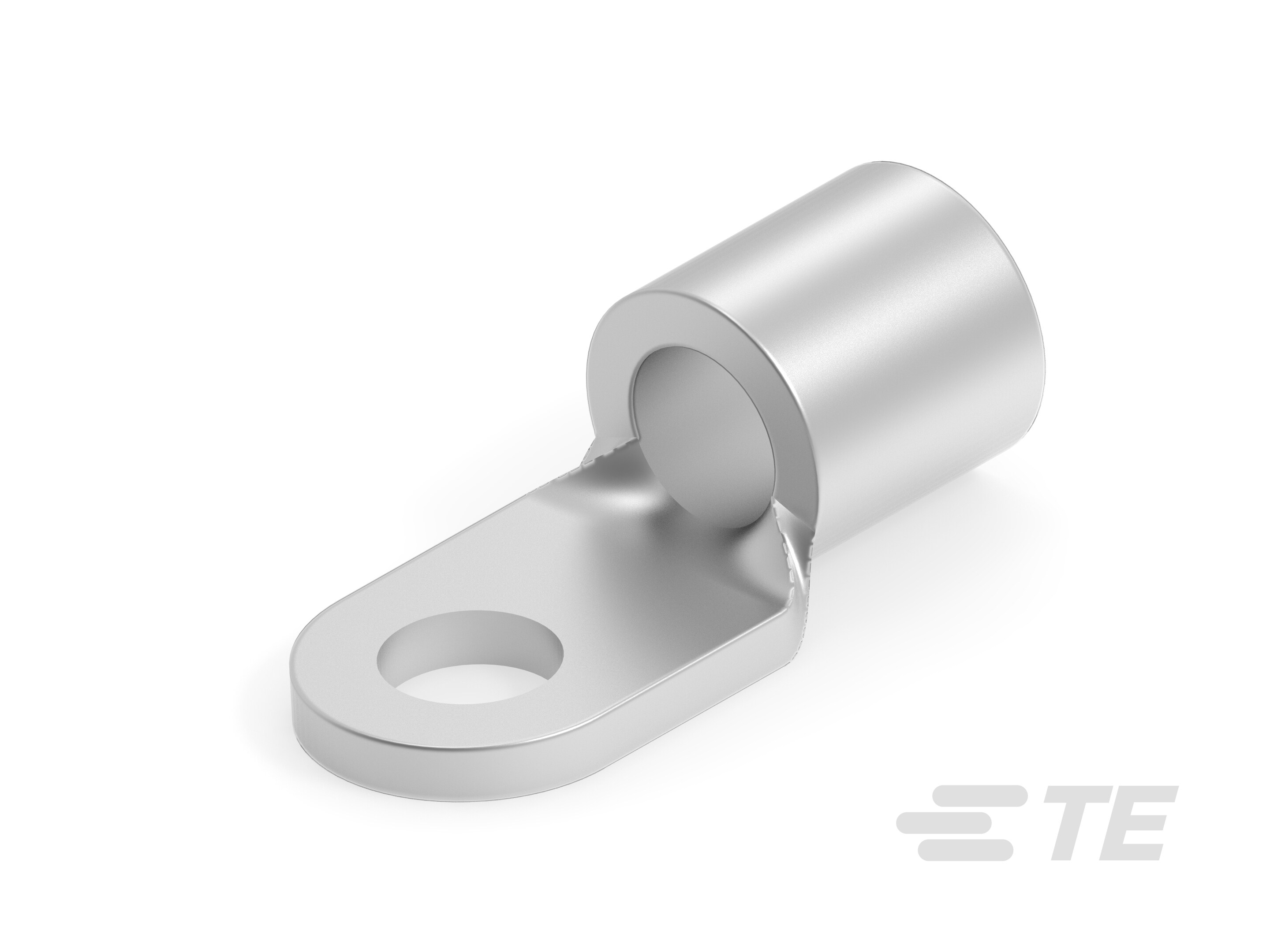

Closed Ring Tongue Terminal, 16 – 14 AWG, #2 / M2 Stud, 2.36 mm [.093 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
328377
Closed Ring Tongue Terminal, 16 – 14 AWG, #2 / M2 Stud, 2.36 mm [.093 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 328377
- TE Internal Description: TERMINAL,SOLIS R 16-14 2
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.04 – 2.61
-
Wire Size (CMA): 2050 – 5180
-
Stud Size : M2,
Documents
Product Drawings
- TERMINAL, RING TONGUE, SOLISTRAND TM ENG_CD_328377_F1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_328377_G.pdf 3D
- Customer View Model ENG_CVM_CVM_328377_G.2d_dxf.zip English
- ENG_CVM_CVM_328377_G.3d_igs.zip English
- ENG_CVM_CVM_328377_G.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049_N.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E13288_19730713_C1_B1.pdf English
- ENG_AAD_UL_E13288_19791001_C.pdf English
- UL ENG_AAD_UL_E13288_19730713_A.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6223_LR7189_458_A.pdf English
- ENG_AAD_CSA_164196_6223_1693113_A.pdf English
