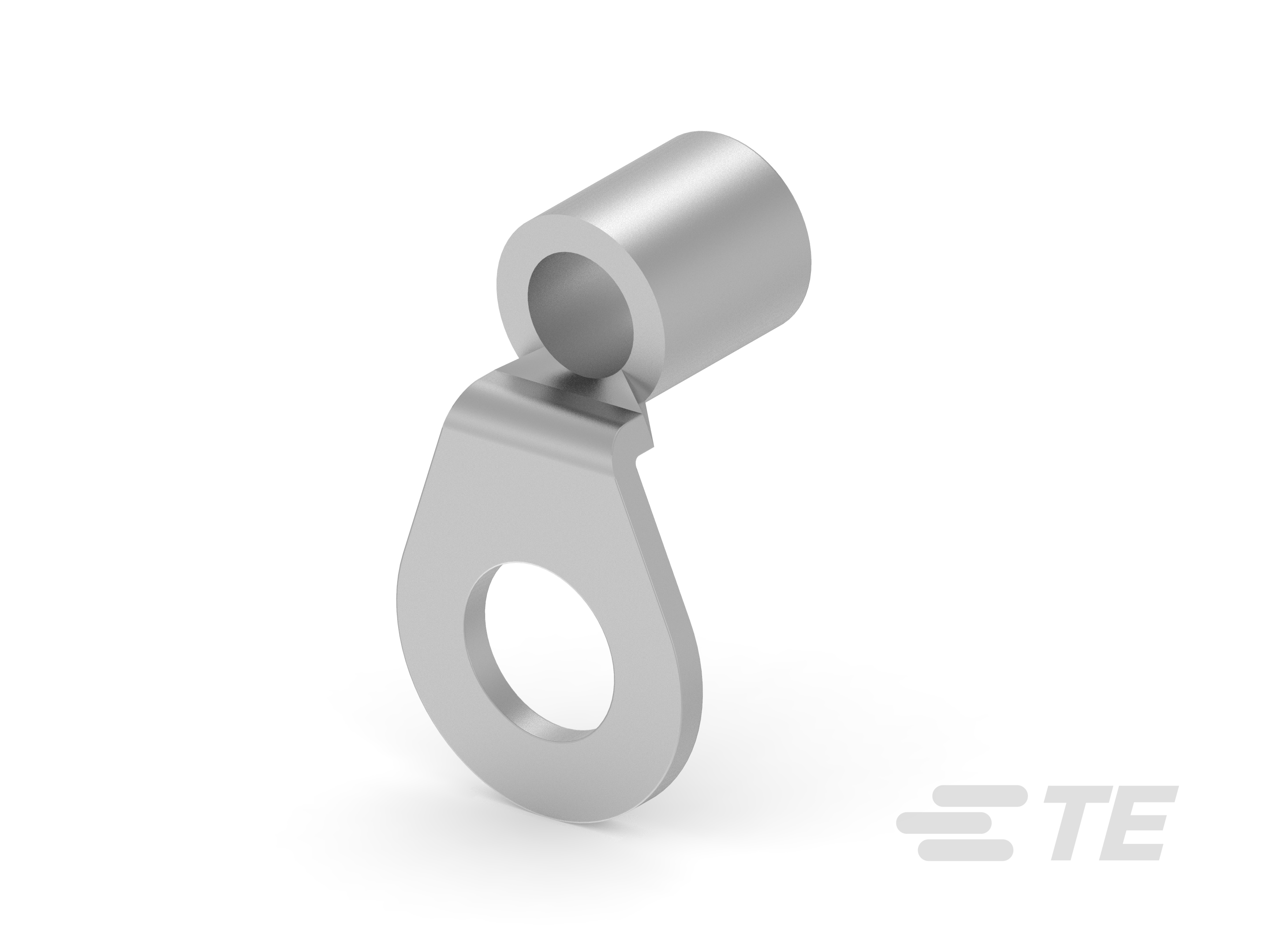

Closed Ring Tongue Terminal, 6 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Right Angle, Tin Plating, Uninsulated
33466-1
Closed Ring Tongue Terminal, 6 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Right Angle, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 33466-1
- TE Internal Description: TERMINAL,SOLIS R 6 5/16 90DEG
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 6
-
Wire Size (mm²): 13 – 15
-
Wire Size (CMA): 20800 – 33100
-
Stud Size : 5/16, M8
