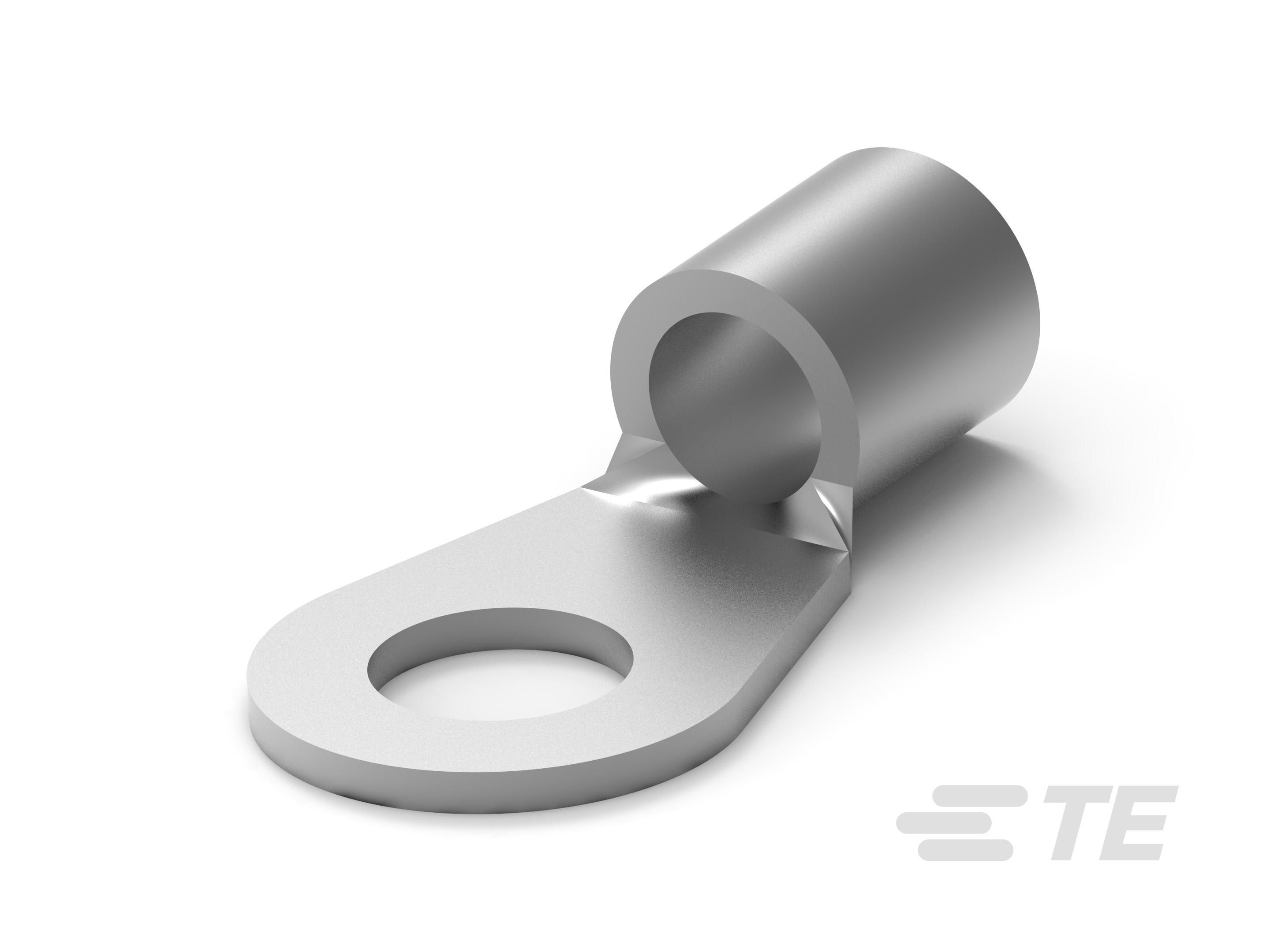

Closed Ring Tongue Terminal, 6 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
33466
Closed Ring Tongue Terminal, 6 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 33466
- TE Internal Description: TERMINAL,SOLIS R 6 5/16
- Alias #: 495972-000 AMPS-0-0033466-0 320000100242 1262493
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 6
-
Wire Size (mm²): 10.5 – 16.8
-
Wire Size (CMA): 20800 – 33100
-
Stud Size : M8, 5/16
Documents
Product Drawings
- TERMINAL, RING TONGUE, SOLISTRAND ENG_CD_33466_N3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_33466_AP.pdf 3D
- Customer View Model ENG_CVM_CVM_33466_AP.2d_dxf.zip English
- ENG_CVM_CVM_33466_AP.3d_igs.zip English
- ENG_CVM_CVM_33466_AP.3d_stp.zip English
Datasheets & Catalog Pages
- SOLISTRAND - QRG ENG_CS_1773464-2_0919.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049_N.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E13288_19730713_C1_B1.pdf English
- ENG_AAD_UL_E13288_19791001_C.pdf English
- UL ENG_AAD_UL_E13288_19730713_A.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6223_LR7189_458_A.pdf English
- ENG_AAD_CSA_164196_6223_1693113_A.pdf English
