338096-1

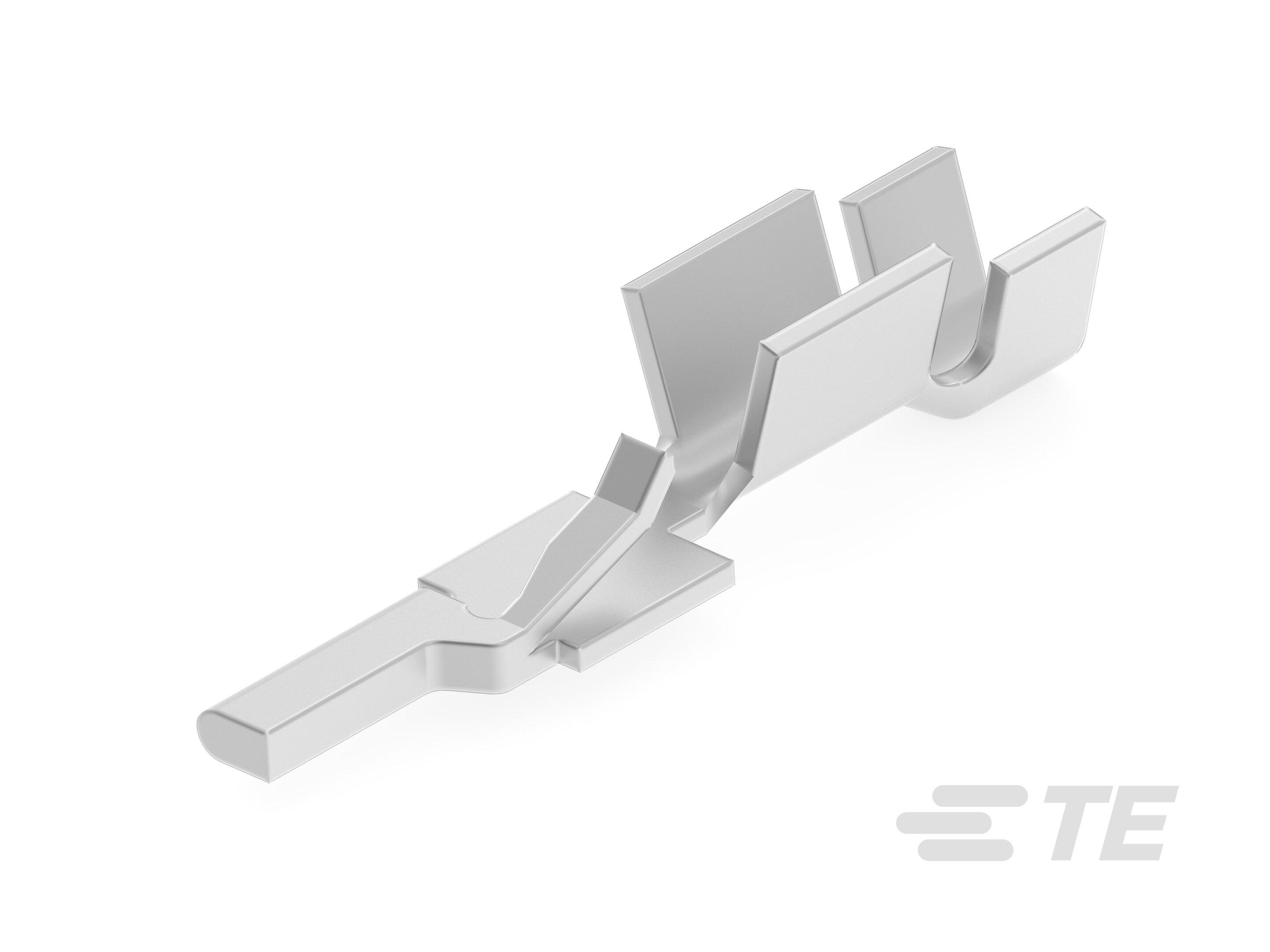

Pin Contact, Tin, 28 – 24 AWG Wire Size, .09 – .2 mm² Wire Size, Brass, Signal, -40 – 105 °C [-40 – 221 °F], Micro-MaTch Industrial
338096-1
Pin Contact, Tin, 28 – 24 AWG Wire Size, .09 – .2 mm² Wire Size, Brass, Signal, -40 – 105 °C [-40 – 221 °F], Micro-MaTch Industrial
-
- Micro-MaTch
- Micro-MaTch Industrial
- TE Internal #: 338096-1
- TE Internal Description: MICRO-MATCH COSICNT
- All Crimp Contacts - Micro-MaTch (4)
-
Contact Type : Pin
-
Contact Mating Area Plating Material : Tin
-
Wire Size (AWG): 28 – 24
-
Wire Size (mm²): .09 – .2
-
Contact Base Material : Brass
Documents
Product Drawings
- micro-match cosi contact English
- micro-match cosi contact ENG_CD_338096_E1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_338096-1_E.pdf English
- Customer View Model ENG_CVM_338096-1_E.3d_igs.zip English
- ENG_CVM_338096-1_E.3d_stp.zip English
- ENG_CVM_338096-1_E.2d_dxf.zip English
Datasheets & Catalog Pages
- Micro-MaTch Catalog ENG_CS_1307822_2-05.pdf English
- ENG_CS_82012_Ribbon_Cable_Interconnect_Sol_0412.pdf English
- Centerline Micro-Match Connector Series ENG_DS_4-1773457-1_050_Micro_MaTch_0416.pdf English
Product Specifications
- Application Specification S_114-19051_O.tif English
- S_114-19051_O.pdf English
- Product Specification ENG_SS_108-19052_H.pdf English
- Qualification Test Report ENG_SS_501-19005_O.pdf English
- S_501-19005_O.tif English
