34135

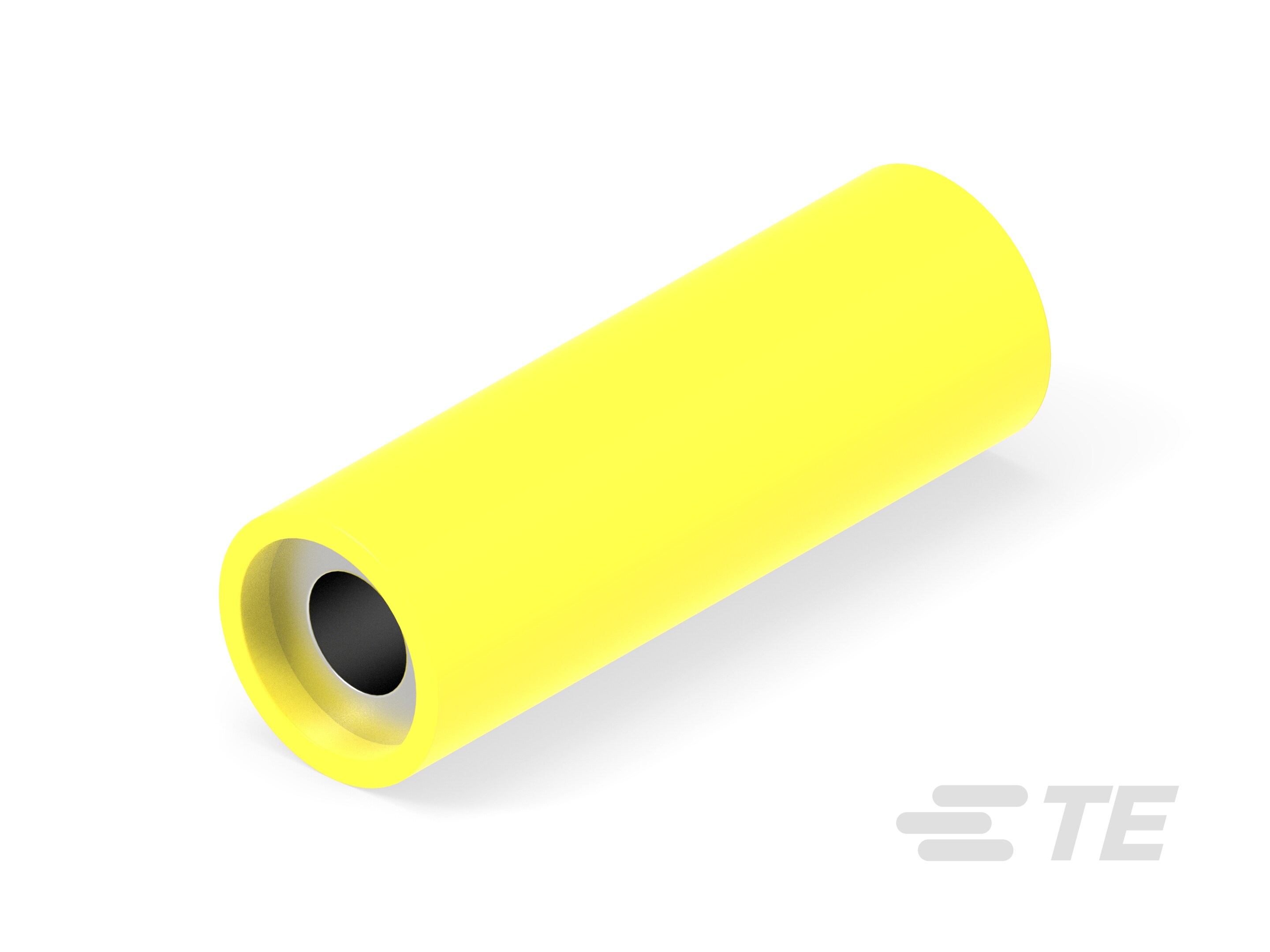

Parallel Splice, 12 – 10 AWG, 3 – 6 mm² Wire, Serrated, 5180 – 13100 CMA, Copper, Yellow, 21.41 mm [.843 in] Length, Loose Piece, PLASTI-GRIP
34135
Parallel Splice, 12 – 10 AWG, 3 – 6 mm² Wire, Serrated, 5180 – 13100 CMA, Copper, Yellow, 21.41 mm [.843 in] Length, Loose Piece, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 34135
- TE Internal Description: SPLICE,PG PARA 12-10
-
Splice Type : Parallel Splice
-
Wire Size (AWG): 12 – 10
-
Wire Size (mm²): 3 – 6
-
Sealable : No
-
Splice Features : Serrated
Documents
Product Drawings
- WIRE SPLICE, PARALLEL, PLASTI-GRIP, WIRE SIZE : 12-10 English
- WIRE SPLICE, PARALLEL, PLASTI-GRIP, WIRE SIZE : 12-10 ENG_CD_34135_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_34135_E.pdf 3D
- Customer View Model ENG_CVM_CVM_34135_E.2d_dxf.zip English
- ENG_CVM_CVM_34135_E.3d_igs.zip English
- ENG_CVM_CVM_34135_E.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2161_G.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049-38_B.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E13288_19730713_C1_B1.pdf English
- ENG_AAD_UL_E13288_19791001_C.pdf English
- UL ENG_AAD_UL_E13288_19730713_A.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6223_1693113_A.pdf English
