Please review product documents or contact us for the latest agency approval information.

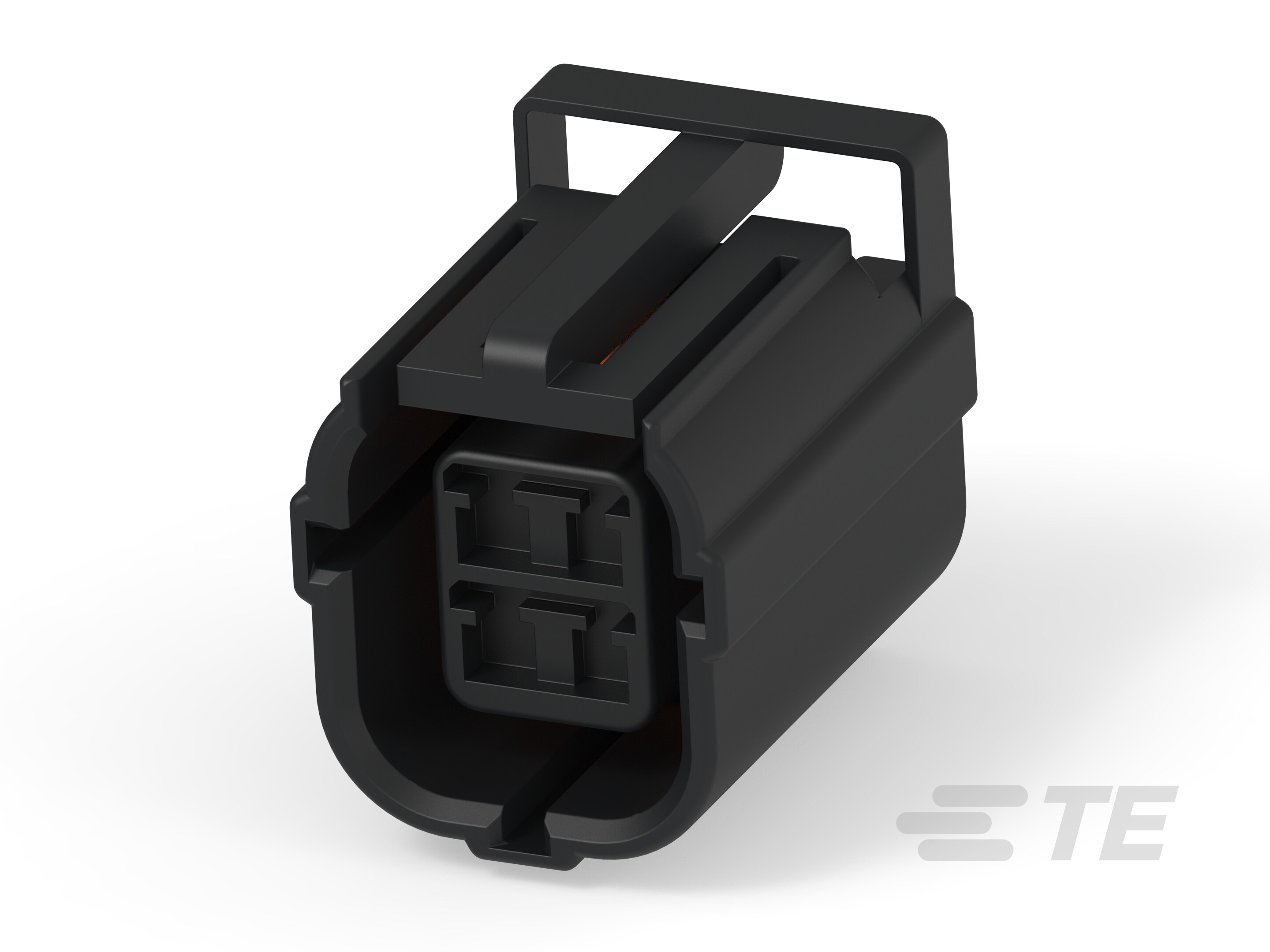

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : On the Terminal

• Sealable : Yes

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Positions : 4

• Number of Rows : 2

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Black

• Connector & Keying Code : Neutral

• Cable Exit Angle : 180°

• Mating Tab Width : 1.8 mm [ .07 in ]

• Contact Current Rating (Max) (A): 10

• Contact Size : 1.8mm

• Contact Type : Receptacle

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Polarizing Slot

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PA

• Centerline (Pitch) : 4.8 mm [ .188 in ]

• Product Width : 27.6 mm [ 1.087 in ]

• Connector Height : 26.3 mm [ 1.035 in ]

• Product Length : 20.6 mm [ .811 in ]

• Row-to-Row Spacing : 5.6 mm [ .22 in ]

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Circuit Application : Signal

• Packaging Method : Box

• Packaging Quantity : 500
