34846

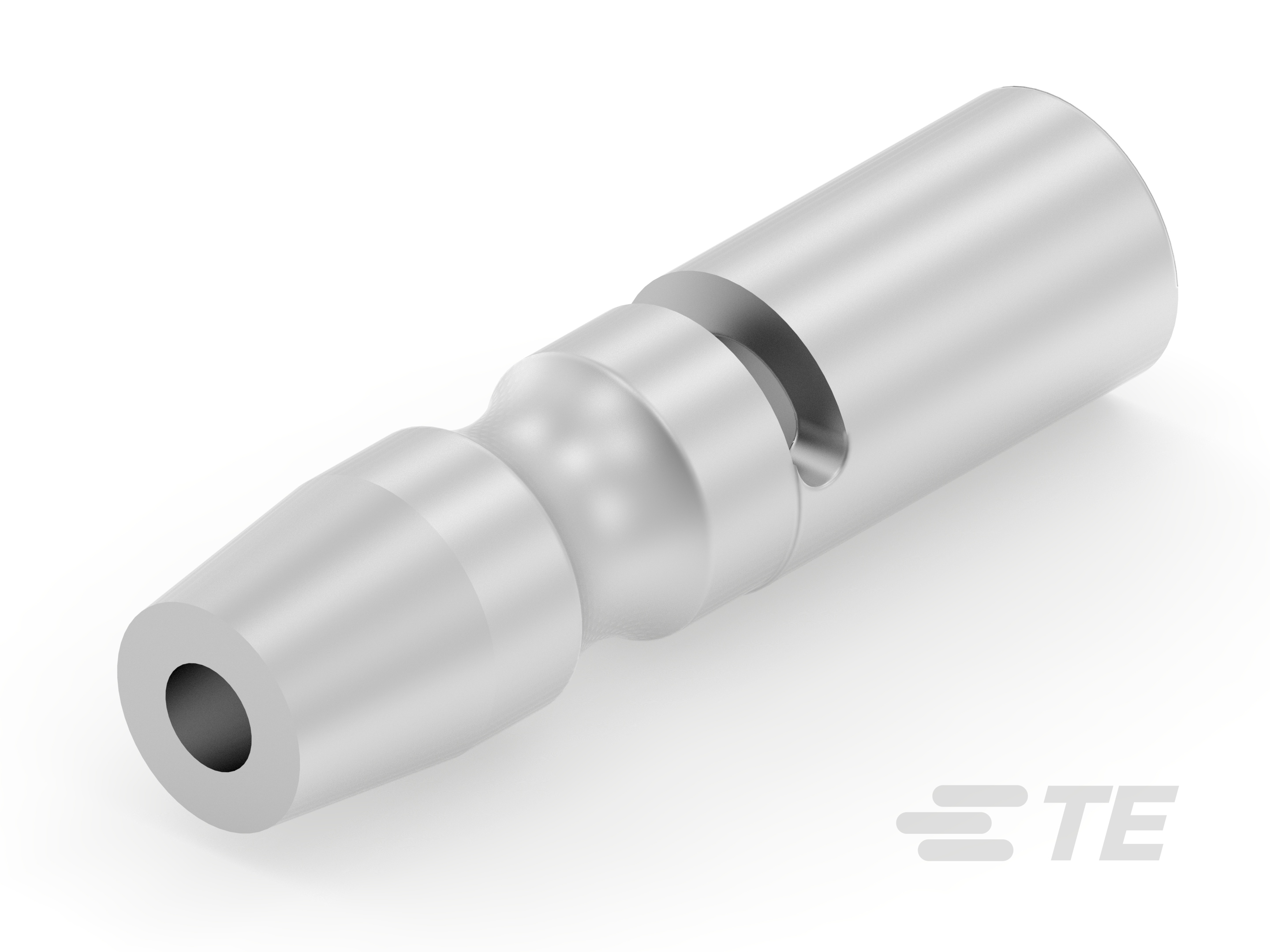

Shur-Plug, 3.96 mm [.156 in] Pin Diameter, 16 – 14 AWG, 1.25 – 2 mm² Wire, 2582 – 4106 CMA, Closed Barrel, Tin Plating, SHUR-PLUG
34846
Shur-Plug, 3.96 mm [.156 in] Pin Diameter, 16 – 14 AWG, 1.25 – 2 mm² Wire, 2582 – 4106 CMA, Closed Barrel, Tin Plating, SHUR-PLUG
-
- SHUR-PLUG
- TE Internal #: 34846
- TE Internal Description: SHUR-PLUG,16-14
-
Crimp Wire Terminal Type : Shur-Plug
-
Mating Pin Diameter : 3.96 mm [ .156 in ]
-
Compatible Insulation Diameter Range : 3.18 mm [ .125 in ]
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.25 – 2
Documents
Product Drawings
- WIRE TERMINAL BUDGET, SHUR PLUG, WIRE SIZE: 16 14 ENG_CD_34846_C.pdf English
- WIRE TERMINAL BUDGET, SHUR PLUG, WIRE SIZE: 16 14 English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_34846_C.pdf English
- 3D_CVM_CVM_34846_M.pdf 3D
- Customer View Model ENG_CVM_CVM_34846_M.2d_dxf.zip English
- ENG_CVM_CVM_34846_M.3d_igs.zip English
- ENG_CVM_CVM_34846_M.3d_stp.zip English
- ENG_CVM_34846_C.3d_igs.zip English
- ENG_CVM_34846_C.3d_stp.zip English
- ENG_CVM_34846_C.2d_dxf.zip English
Agency Approvals
- CSA Certificate ENG_AAD_CSA_164196_6223_1693113_A.pdf English
