350654-1

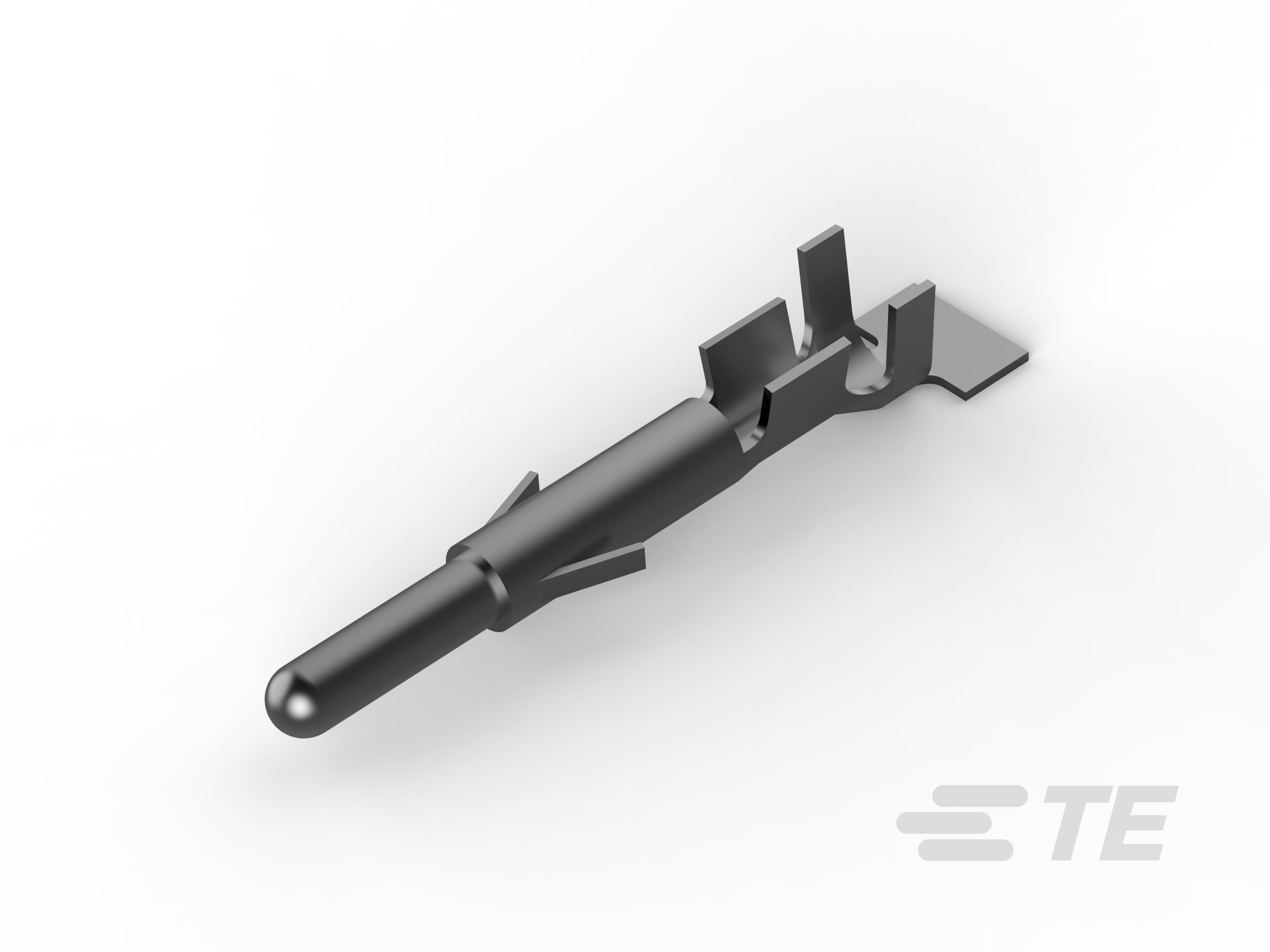

Pin Contact, Tin, 600 VAC, Locking Lance Contact Retention, 20 – 14 AWG Wire Size, .5 – 2 mm² Wire Size, Crimp, Brass, Power, Universal MATE-N-LOK
350654-1
Pin Contact, Tin, 600 VAC, Locking Lance Contact Retention, 20 – 14 AWG Wire Size, .5 – 2 mm² Wire Size, Crimp, Brass, Power, Universal MATE-N-LOK
-
- MATE-N-LOK
- Universal MATE-N-LOK
- TE Internal #: 350654-1
- TE Internal Description: UMNL GRND PIN 20-14 PTPBR
-
Packaging Method : Reel
-
Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
-
Wire Size (AWG): 20 – 14
-
Contact Orientation : Straight
-
Wire Insulation Support : Without
Documents
Product Drawings
- PIN, GROUNDING, UNIVERSAL MATE-N-LOK ENG_CD_350654_R2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_350654-1_AK.pdf 3D
- Customer View Model ENG_CVM_CVM_350654-1_AK.2d_dxf.zip English
- ENG_CVM_CVM_350654-1_AK.3d_igs.zip English
- ENG_CVM_CVM_350654-1_AK.3d_stp.zip English
Datasheets & Catalog Pages
- SOFT_SHELL_PIN_SOCKET_CONNECTORS_STANDARD_DENSITY ENG_CS_82181_SOFTSHELL_STANDARD_DENSITY_0508.pdf English
Product Specifications
- Universal MATE-N-LOK Connector ENG_SS_110-213_A2.pdf English
- Application Specification ENG_SS_114-1010_V2.pdf English
- Product Specification ENG_SS_108-1031_N2.pdf English
Agency Approvals
- VDE Certificate ENG_AAD_VDE_CERT_40023469_C1_B.pdf English
