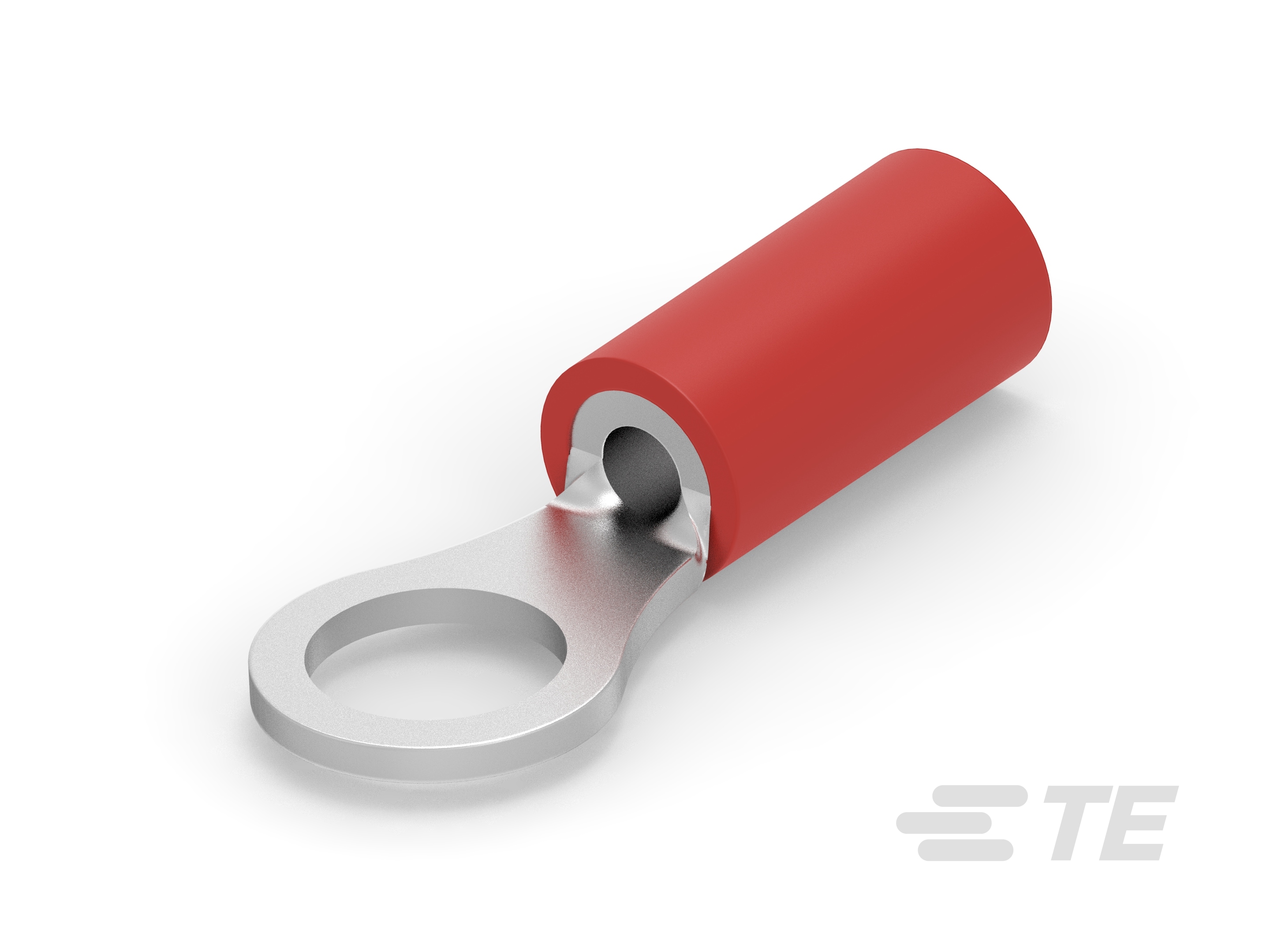

Closed Ring Tongue Terminal, 22 – 16 AWG, #10 Stud, 4.82 mm / 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
35451
Closed Ring Tongue Terminal, 22 – 16 AWG, #10 Stud, 4.82 mm / 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 35451
- TE Internal Description: PG R 22-16 COMM 22-18 MIL 10
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 22 – 16
-
Wire Size (mm²): .3 – 1.42
-
Wire Size (CMA): 509 – 3260
-
Stud Size : 10
Documents
Product Drawings
- TERMINAL, RING TONGUE, PLASTI-GRIP, WIRE SIZE, 22-16 AWG English
- TERMINAL, RING TONGUE, PLASTI-GRIP, WIRE SIZE, 22-16 AWG ENG_CD_35451_F.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_35451_L.pdf 3D
- Customer View Model ENG_CVM_CVM_35451_L.2d_dxf.zip English
- ENG_CVM_CVM_35451_L.3d_igs.zip English
- ENG_CVM_CVM_35451_L.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2161_G.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19800402_A.pdf English
