Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

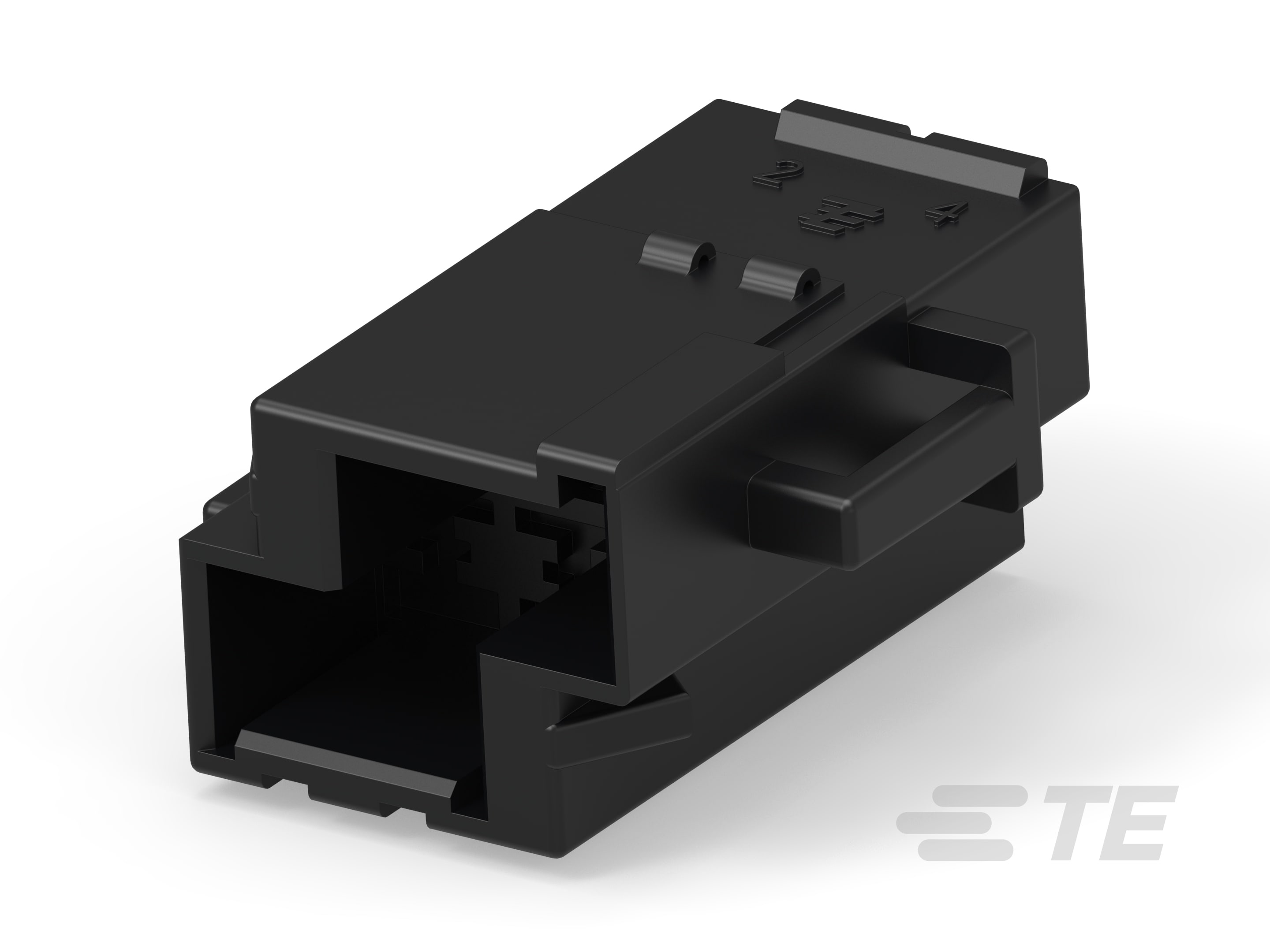

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : No

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Positions : 4

• Number of Rows : 2

• Primary Product Color : Black

• Connector & Keying Code : 3

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Size : 2.8mm

• Contact Type : Tab

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Housing Material : PA

• Centerline (Pitch) : 6.2 mm [ .244 in ]

• Product Width : 16 mm [ .63 in ]

• Connector Height : 31.3 mm [ 1.232 in ]

• Product Length : 30 mm [ 1.181 in ]

• Row-to-Row Spacing : 5.8 mm [ .228 in ]

• Circuit Application : Power

• UL Flammability Rating : UL 94V-2

• Packaging Method : Bag
