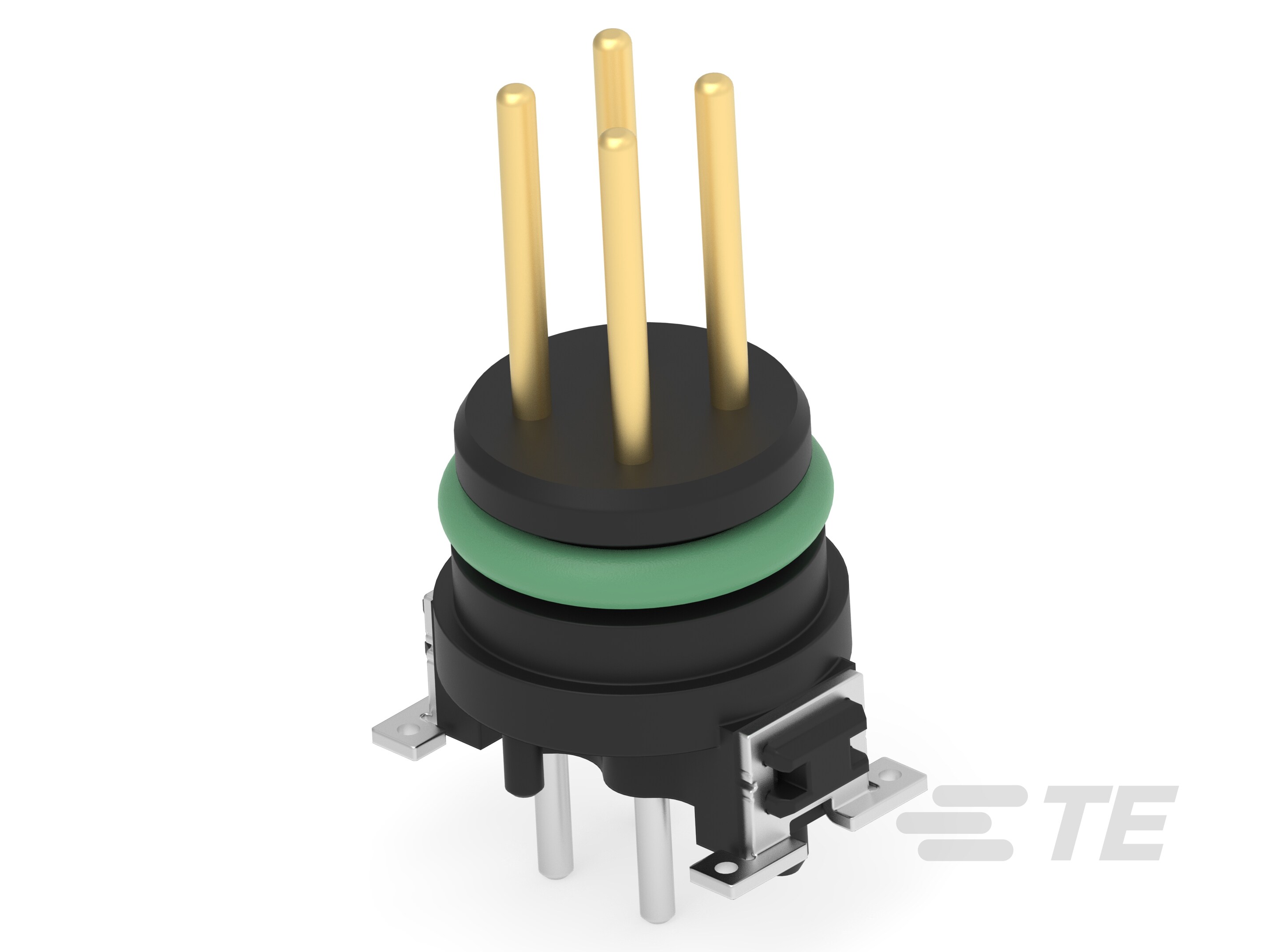

4 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
384812-E
4 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
-
- ERNI
- M12 Connector
- TE Internal #: 384812-E
- TE Internal Description: M12 MALE, UNI CODE, 4P, 10.5MM THR, DI
-
Number of Positions : 4
-
Connector System : Cable-to-Board
-
Sealable : Yes
-
Connector & Contact Terminates To : Printed Circuit Board
-
Contact Current Rating (Max) (A): 4
Documents
Product Drawings
- M12 MALE, UNI CODE, 4P, 10.5MM THR, DI ENG_CD_384812-E_F2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_384812-E_1.pdf 3D
- Customer View Model ENG_CVM_CVM_384812-E_1.2d_dxf.zip English
- ENG_CVM_CVM_384812-E_1.3d_stp.zip English
- ENG_CVM_CVM_384812-E_1.3d_igs.zip English
Datasheets & Catalog Pages
- ERNI M8M12 Circular Connectors ENG_DS_erni-m8-m12-datasheet_2211.pdf English
- ERNI M8M12 Circular Connectors GER_DS_erni-m8-m12-datasheet_2211.pdf German
Product Specifications
- Application Specification ENG_SS_114-94781_A.pdf English
- Product Specification ENG_SS_108-94887_B.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E84703_20140116_C1_2.pdf English
