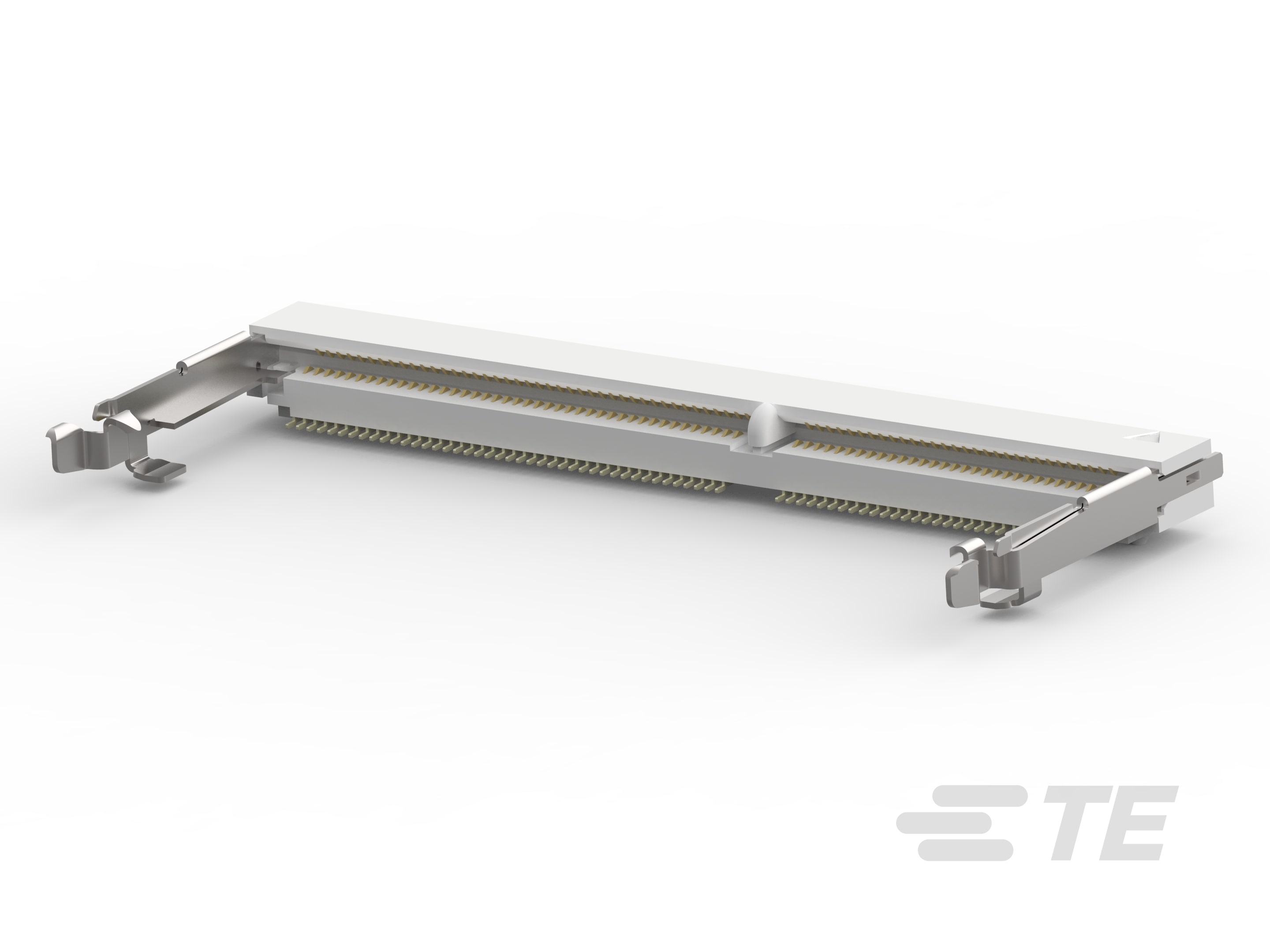

390112-1
Small Outline (SO), Stack Height 5.6 mm [.22 in], Right Angle Module Orientation, 144 Position, AMP-METRIMATE, SO DIMM Sockets
390112-1
Small Outline (SO), Stack Height 5.6 mm [.22 in], Right Angle Module Orientation, 144 Position, AMP-METRIMATE, SO DIMM Sockets
-
- AMP-METRIMATE
- TE Internal #: 390112-1
- TE Internal Description: SKT,SODIMM,144P,SDRAM3.3V,HIGH
- Alias #: 650-1285-02
- All DDR3 SO DIMM Sockets (12)
-
DRAM Type : Small Outline (SO)
-
Stack Height : 5.6 mm [ .22 in ]
-
Module Orientation : Right Angle
-
Number of Positions : 144
-
Centerline (Pitch) : .8 mm [ .031 in ]
Documents
Product Drawings
- S.O. DIMM SKT Assy, 0.8mm 3.3 V, 144 P High Pro. for SDRAM Type Module. ENG_CD_390112_R1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_390112-1_AB.pdf 3D
- Customer View Model ENG_CVM_CVM_390112-1_AB.2d_dxf.zip English
- ENG_CVM_CVM_390112-1_AB.3d_igs.zip English
- ENG_CVM_CVM_390112-1_AB.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-1114_C.pdf English
- Product Specification ENG_SS_108-1739_B.pdf English
- S_108-1739_B.tif English
- Qualification Test Report ENG_SS_501-386_A.pdf English
- S_501-386_A.tif English
Agency Approvals
- Agency Approval Document ENG_AAD_UL_E28476_19970910_A.pdf English
