Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

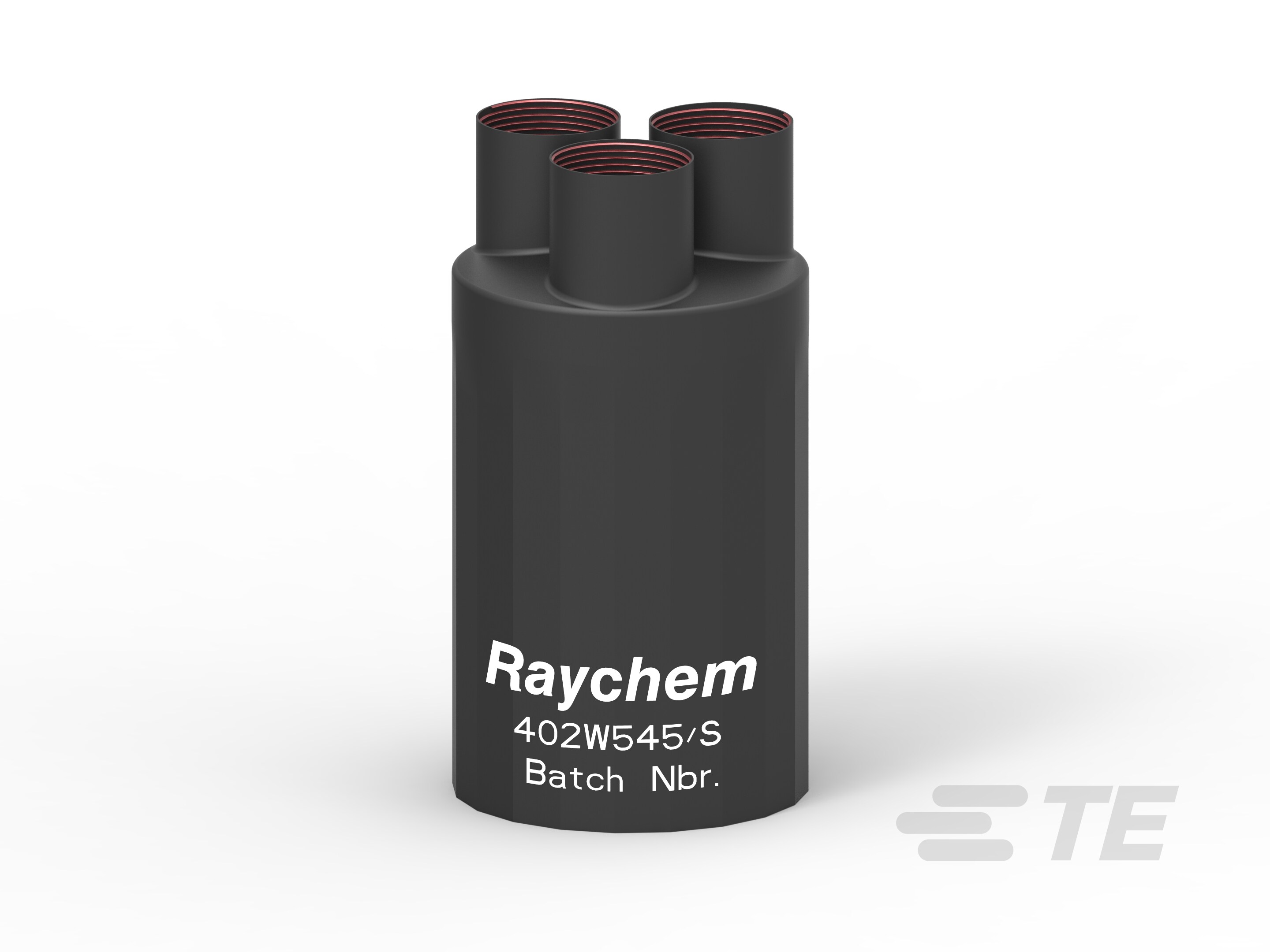

• Coating Style : Spiral, Planar

• Installation Technology : Heat Shrink

• Adhesive Coating : With

• Wall Style (Excluding Adhesive) : Single

• Wall Thickness : Thick/Heavy

• Compatible Cable Diameter - Body (Min) : 63 mm [ 2.48 in ]

• Compatible Cable Diameter - Body (Max) : 112 mm [ 4.409 in ]

• Compatible Cable Diameter - Leg (Min) : 24 mm [ .944 in ]

• Compatible Cable Diameter - Leg (Max) : 46 mm [ 1.811 in ]

• Expanded Inside Diameter (Min) (Body) : 124 mm [ 4.881 in ]

• Expanded Inside Diameter (Min) (Leg) : 51 mm [ 2.007 in ]

• Leg Length : 51 mm [ 2.007 in ]

• Overall Product Length : 239 mm [ 9.409 in ]

• Recovered Inside Diameter (Max) (Body) : 58 mm [ 2.283 in ]

• Recovered Inside Diameter (Max) (Leg) : 22 mm [ .866 in ]

• Recovered Wall Thickness (Max) (Body) : 3 mm [ .118 in ]

• Recovered Wall Thickness (Max) (Leg) : 3.2 mm [ .125 in ]

• Body Length : 188 mm [ 7.401 in ]

• Primary Product Material : Crosslinked Polyolefin

• Primary Product Color : Black

• Flexibility : Semi-Rigid

• Shrink Ratio : > 2.5:1

• Packaging Quantity : 5

• Environmental Resistance : Salt Water, Weathering, Contaminated Water, Rain, Moisture

• Fluid Resistance Type : Hydrocarbons, Transformer Oil

• Flammability Performance : Non-Flame-Retardant

• Thermal Resistance : Applicable for Low Temperatures, Applicable for High Temperatures, Flame-Retardant

• UV-Stabilized : Yes

• Mechanical Resistance : Against Mechanical Impact

• Voltage Class (kV): ≤ 1

• Product Availability : Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas

• Number of Branches & Legs : 3
