Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

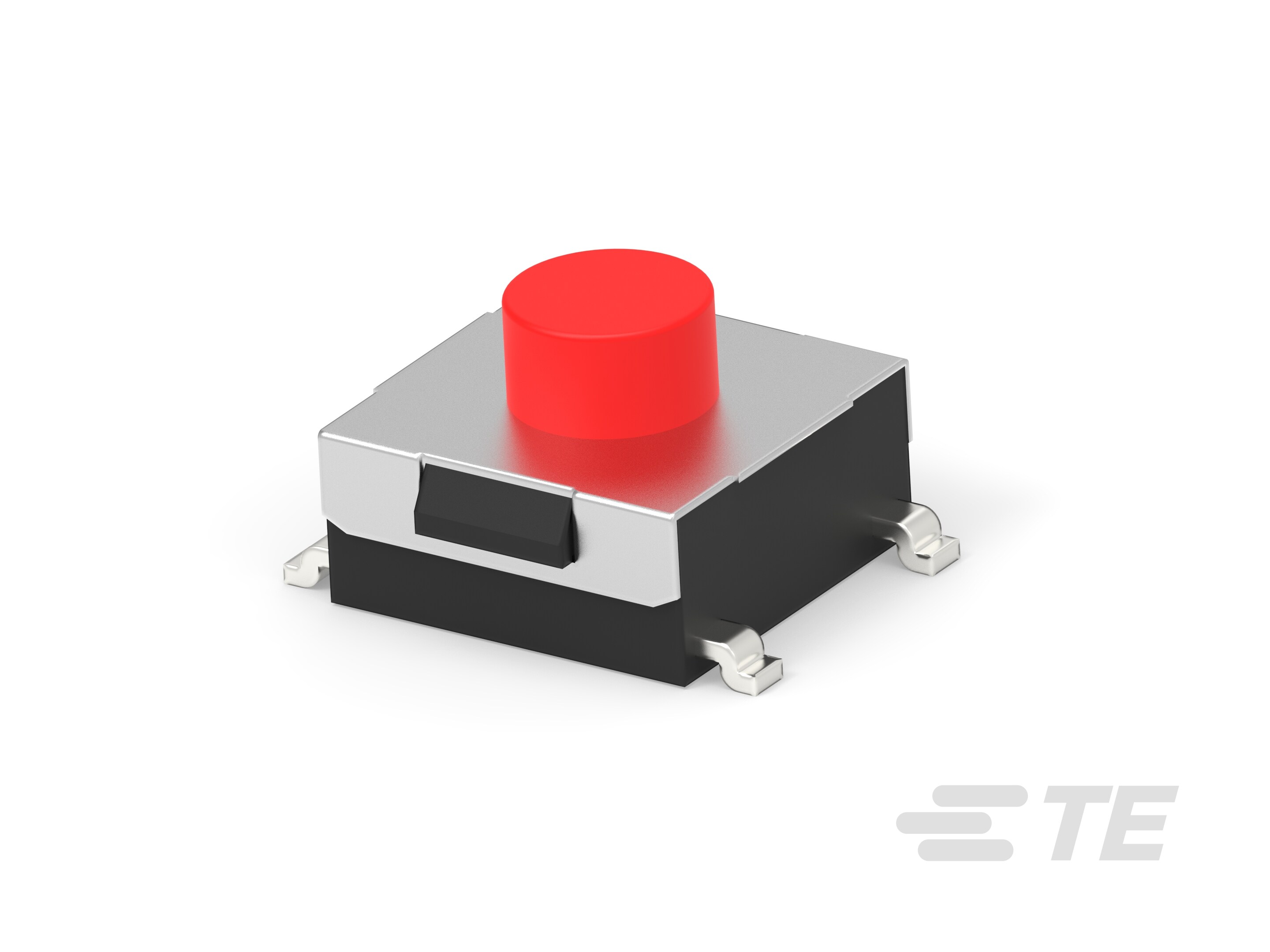

• Illuminated : Without

• Switch Connection Type : Printed Circuit Board

• Leg Style : SMD Pads

• Actuator Style : Round

• Ganged : With

• ESD Grounding Terminal : Without

• Switch Feedback Type : Tactile

• Operating Function : NO

• Support Bracket : Without

• Configuration (Pole-Throw) : Single Pole - Single Throw

• Number of Actuators : Single

• Actuator Force : 260 g [ 9.17 oz ]

• Cover Material : Steel

• Actuator Material : Nylon

• Case Color : Black

• Actuator Profile : Extended

• Case Material : PPS

• Product Orientation : Vertical

• Actuator Color : Red

• Actuator Length : 1.7 mm [ .067 in ]

• Product Height (in): .169

• Button Width : 2.3 mm [ .118 in ]

• Packaging Method : Tape & Reel

• Contact Current Rating (mA): 50

• Contact Base Material : Phosphor Bronze

• Switch Contact Plating Material : Silver

• Low Profile : With

• Process Sealed : No

• Operating Voltage (VDC): 24

• Termination Method to PCB : Surface Mount

• Operating Temperature Range (°C): -35 – 85
