Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

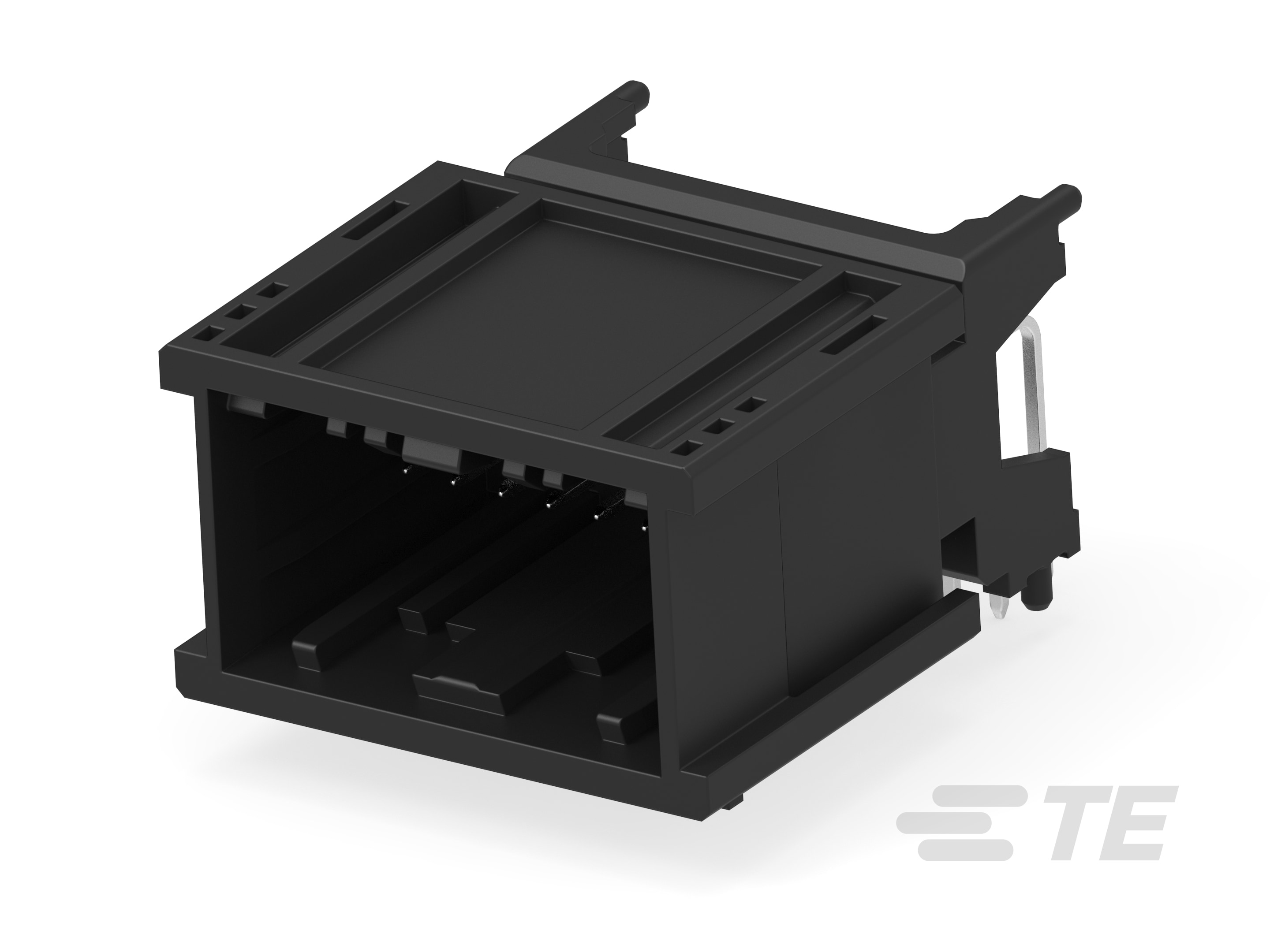

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• Number of Signal Positions : 12

• PCB Mount Orientation : Horizontal

• Number of Positions : 12

• Number of Rows : 2

• Mating Tab Thickness : .4 mm [ .016 in ]

• Mating Tab Width : .5 mm [ .02 in ]

• Contact Size : .5mm

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• Mating Retention : With

• Mounting Holes : Without

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• PCB Mount Retention : Without

• PCB Mount Alignment : With

• Mating Alignment : With

• Shielded : No

• Solder Process : Reflow Solder

• Circuit Application : Signal

• Connector & Keying Code : A

• Primary Product Color : Black

• Operating Temperature (Max) (°C): 80, 105, 100, 90, 85, 65, 75, 70

• Operating Temperature (Max) (°F): 212

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Packaging Quantity : 1

• Packaging Method : Tape & Reel

• Interface Number : 114-20160

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Profile Height from PCB : 12.6 mm [ .496 in ]

• Connector Length : 20.05 mm [ .789 in ]

• PCB Thickness (Recommended) : .8 mm [ .031 in ]

• Connector Width : 24.47 mm [ .963 in ]

• Nominal Voltage Architecture (V): 12

• Operating Voltage (VDC): 12

• Termination Method to PCB : Through Hole - Solder
