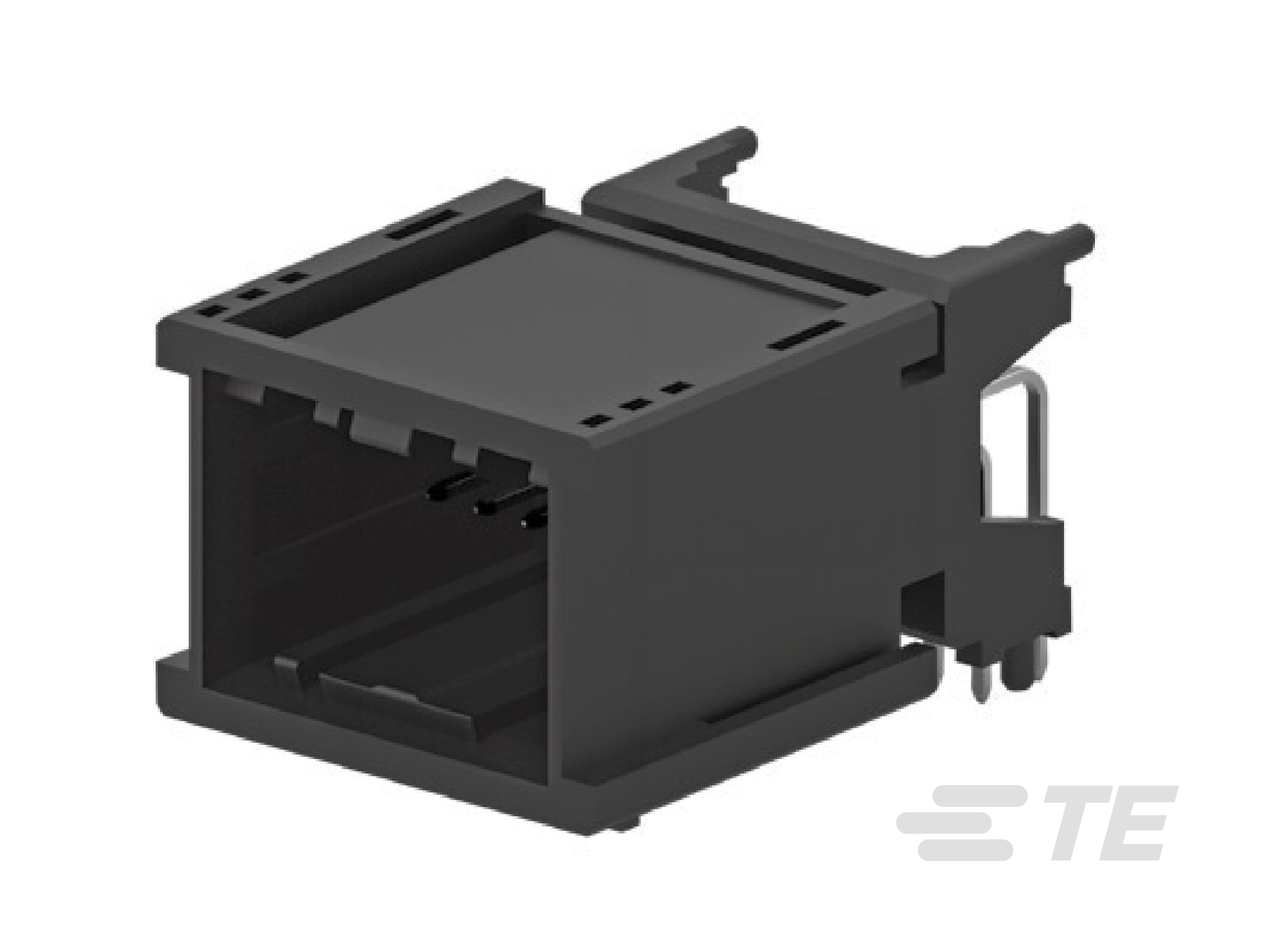

Miniature Automotive I/O Headers

Miniature Automotive I/O Headers-CAT-MINH6642
TE's miniaturized headers require about half of the packaging space versus 0.63mm2 systems.
More Less

Product Features

  • Packaging Method : Tray, Tube, Tape & Reel, Reel

  • Operating Temperature Range (°C): -40 – 105, -40 – 100, -30 – 85, -40 – 125

  • Operating Temperature Range (°F): -40 – 221, -40 – 212, -22 – 185, -40 – 257

  • Primary Product Color : Black, Gray, Beige, Natural

  • Operating Temperature (Max) (°C): 120, 100, 110, 90, 65, 80, 75, 70, 125, 105, 85

  • Operating Temperature (Max) (°F): 158, 212, 248, 185, 221, 230, 257, 149, 167, 194, 176

Available from

LADD Inc
Overview

Miniaturized Automotive I/O Connectors

A vehicle’s weight can be reduced by using lighter or less material, improving fuel efficiency and reducing C02 emissions. TE’s NanoMQS and MCON  0.50 terminal and connector systems only require about half of the packaging space versus 0.63 mm2 systems. The headers are designed to withstand harsh environments such as high vibrations due to their low mass and contact force.

Circuits Sealed Orientation Tab Width Hybrid Termination Method
6-32 No 90° | 180° 0.50 mm No Solder | SMT
  1. Miniaturized Connectivity | Automotive Applications (English)

View a recent discussion on TE's advantage for miniaturized connectivity products in automotive applications.

Miniaturized Products | Automotive Video
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Shape  Rectangular

  • Mixed & Hybrid Header  No

  • Header Type  Fully Shrouded

  • PCB Connector Assembly Type  PCB Mount Header

Configuration Features

  • Number of Sections  1, 2

  • Number of Positions  6, 8, 12, 20, 24, 30, 32

  • Number of Rows  1, 2, 3

  • Number of Signal Positions  6, 8, 12, 20, 24, 30, 32

  • PCB Mount Orientation  Vertical, Horizontal

Electrical Characteristics

  • Operating Voltage (VDC) 12

  • Nominal Voltage Architecture (V) 12

  • Voltage Rating (Max) (VDC) 12

Body Features

  • Primary Product Color  Black, Gray, Beige, Natural

  • Connector & Keying Code  D, A, C, B

Contact Features

  • Contact Size  .5mm

  • Contact Type  Tab, Pin

  • Mating Tab Width (mm) .5

  • Mating Tab Width (in) .019, .02

  • Mating Tab Thickness (mm) .4

  • Mating Tab Thickness (in) .015, .016

  • Contact Mating Area Plating Material  Tin, Tin (Sn), Gold

Mechanical Attachment

  • Mating Alignment  With

  • Mounting Holes  Without, With

  • Panel Mount Feature  Without

  • Mating Retention Type  Locking Interface

  • PCB Mount Retention  Without, With

  • PCB Mount Retention Type  Solder Tail

  • PCB Mount Alignment  With, Without

  • Mating Retention  With

  • Connector Mounting Type  Board Mount

Housing Features

  • Centerline (Pitch) (mm) 1.6, 1.8, 2, 3.4, 3.6

  • Centerline (Pitch) (in) .06, .063, .07, .071, .078, .079, .134, .142

Dimensions

  • PCB Thickness (Recommended) (mm) .8, 1.57, 1.6

  • PCB Thickness (Recommended) (in) .031, .062, .063

  • Connector Length (mm) 16.45, 20.05, 21.25, 26, 27.25, 33.7, 37.9, 38.05

  • Connector Length (in) .648, .789, .837, 1.02, 1.07, 1.073, 1.326, 1.49, 1.498, 1.5

  • Profile Height from PCB (mm) 7.9, 9, 11.1, 11.8, 12.6, 22.95

  • Profile Height from PCB (in) .311, .354, .437, .465, .496, .904

  • Connector Width (mm) 10.6, 19, 23.15, 24.47, 25.3, 52.9

  • Connector Width (in) .417, .74, .748, .911, .963, .996, 2.083

Usage Conditions

  • Operating Temperature Range (°C) -40 – 105, -40 – 100, -40 – 125, -30 – 85

  • Operating Temperature Range (°F) -40 – 221, -40 – 212, -40 – 257, -22 – 185

  • Operating Temperature (Max) (°C) 65, 70, 75, 80, 85, 90, 100, 105, 110, 120, 125

  • Operating Temperature (Max) (°F) 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257

Operation/Application

  • Shielded  No

  • Circuit Application  Signal

  • Solder Process  Reflow Solder

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Tray, Tube, Tape & Reel, Reel

  • Packaging Quantity  1, 36, 46, 84, 195

Other

  • Interface Number  114-20160, 114-94000-1, 114-94000-11, 2013031

Reference Number

  • TE Internal Number CAT-MINH6642
