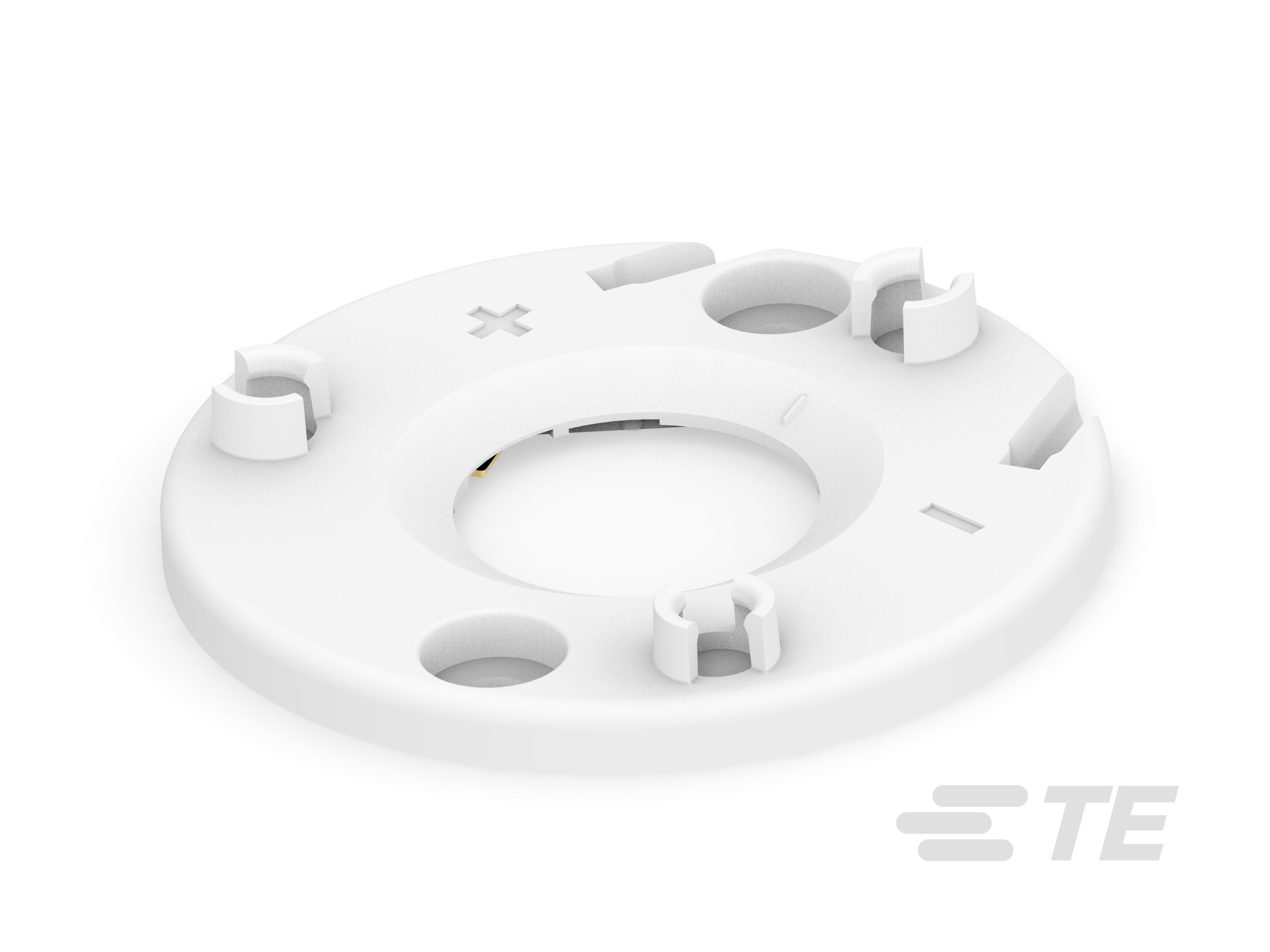

Optic Compatible / Zhaga Inspired, 60 VDC, Poke-In, 1 Position, Printed Circuit Board, -40 – 105 °C [-40 – 221 °F], LUMAWISE LED Holders, LED Holders
4-2325807-3
Optic Compatible / Zhaga Inspired, 60 VDC, Poke-In, 1 Position, Printed Circuit Board, -40 – 105 °C [-40 – 221 °F], LUMAWISE LED Holders, LED Holders
-
- LUMAWISE
- LUMAWISE LED Holders
- TE Internal #: 4-2325807-3
- TE Internal Description: LUMAWISE Z45 LED HOLDER 19X19 typB LEDiL
-
Lighting Connector Features Included : Optic Compatible, Zhaga Inspired
-
Operating Voltage (VDC): 60
-
Termination Method to Wire & Cable : Poke-In
-
Number of Positions : 1
-
Connector & Contact Terminates To : Printed Circuit Board
