4-2399609-4

Active

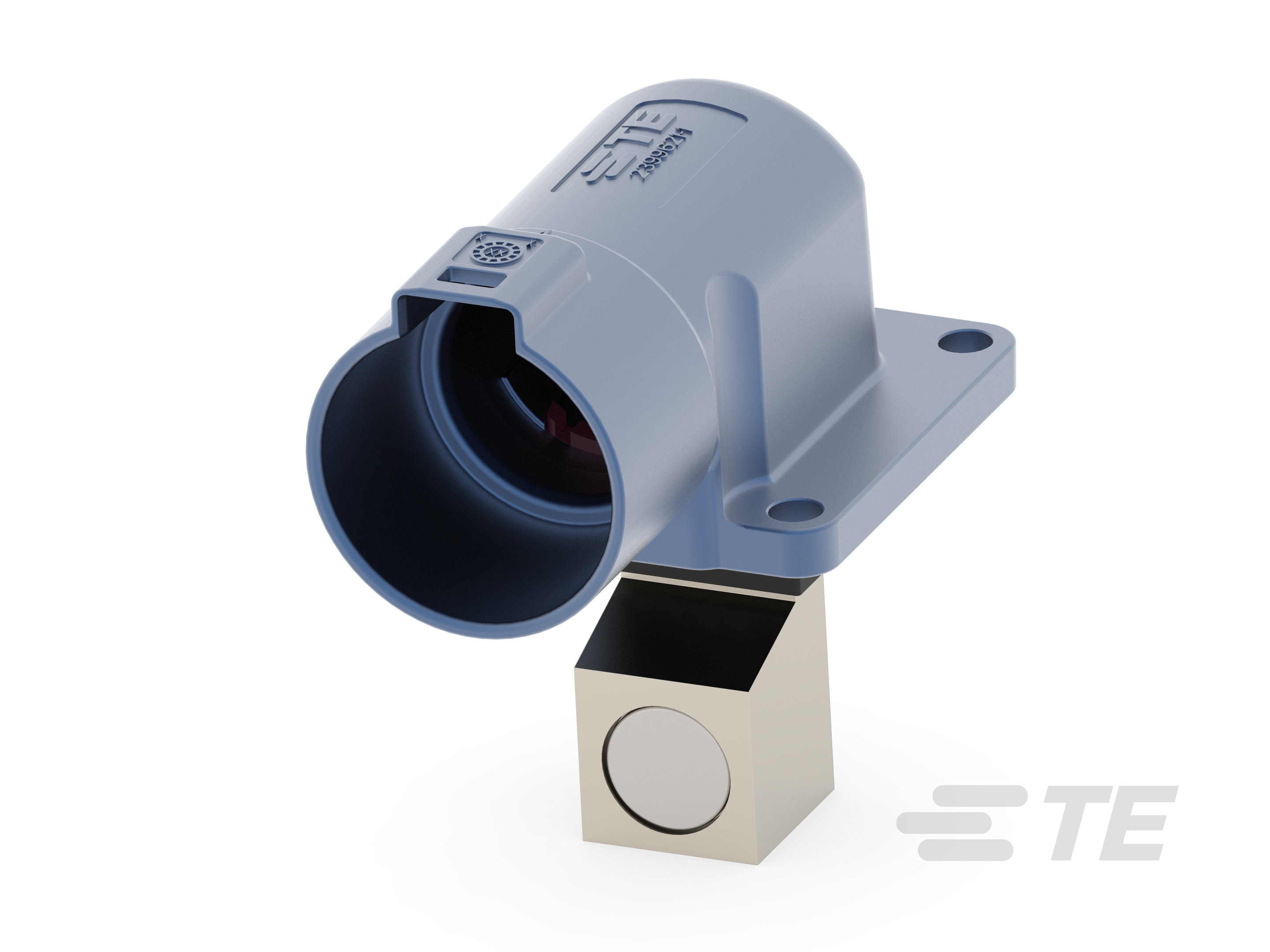

Bus Bar-to-Wire, 1 Position, Fully Shrouded, Silver (Ag), Through Hole - Screw, Sealable, Power, Purple, Container, PowerTube HVP-HD 1400

4-2399609-4

Active

Bus Bar-to-Wire, 1 Position, Fully Shrouded, Silver (Ag), Through Hole - Screw, Sealable, Power, Purple, Container, PowerTube HVP-HD 1400

- PowerTube
- PowerTube HVP-HD 1400

TE Internal #: 4-2399609-4
TE Internal Description: 1POS,HVP1400,ASSY,90DEG,COD D
All PowerTube HVP-HD 1400 90º Headers (90)

Packaging Method : Container
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
Primary Product Color : Purple
Connector & Contact Terminates To : Bus Bar

See All Features

More Less

Compatible Parts & Tooling

Documents

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_4-2399609-4_B.pdf 3D
Customer View Model ENG_CVM_CVM_4-2399609-4_B.3d_igs.zip English
ENG_CVM_CVM_4-2399609-4_B.3d_stp.zip English
ENG_CVM_CVM_4-2399609-4_B.2d_dxf.zip English

Datasheets & Catalog Pages

HIVONEX CONNECTORS & CHARGING SOLUTIONS ENG_CS_3-1773983-4_A.pdf English

Product Specifications

Application Specification ENG_SS_114-160222_A.pdf English
Product Specification ENG_SS_108-160407_A.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector & Contact Terminates To : Bus Bar
Connector Shape : Circular
Sealable : Yes
Connector System : Bus Bar-to-Wire
Header Type : Fully Shrouded

Configuration Features

Number of Positions : 1
Number of Rows : 1

Electrical Characteristics

Operating Voltage (VDC): 1000
Nominal Voltage Architecture (V): 1000
Operating Voltage (VAC): 1000

Body Features

Primary Product Color : Purple
Connector & Keying Code : D

Contact Features

Mating Pin Diameter : 14 mm [ .55 in ]
Contact Mating Area Plating Material : Silver (Ag)
Contact Type : Pin

Mechanical Attachment

Connector Mounting Type : Panel Mount
Mating Alignment Type : Polarization
PCB Mount Retention : Without
Mating Alignment : With

Usage Conditions

Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
Operating Temperature (Max) : 140 °C [ 284 °F ]

Operation/Application

Circuit Application : Power

Industry Standards

IP Rating : IP6K9K
UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Container
